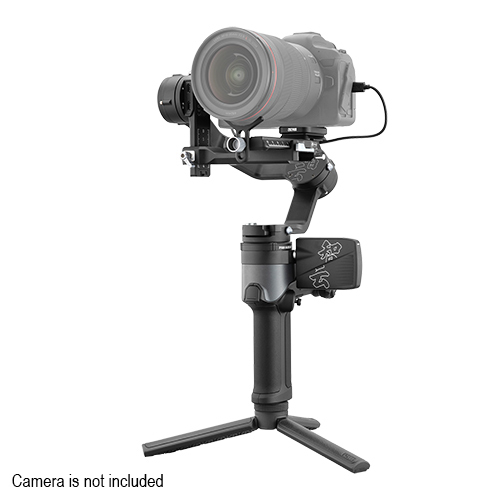

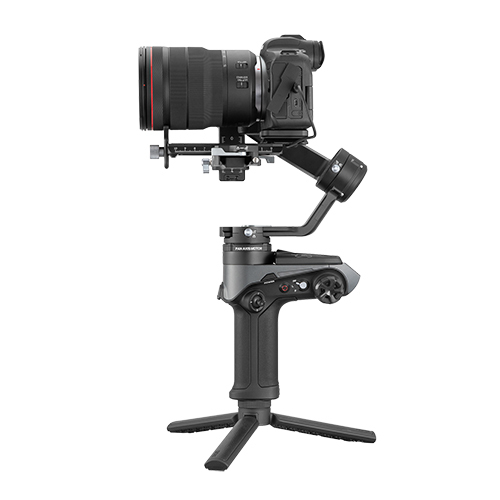

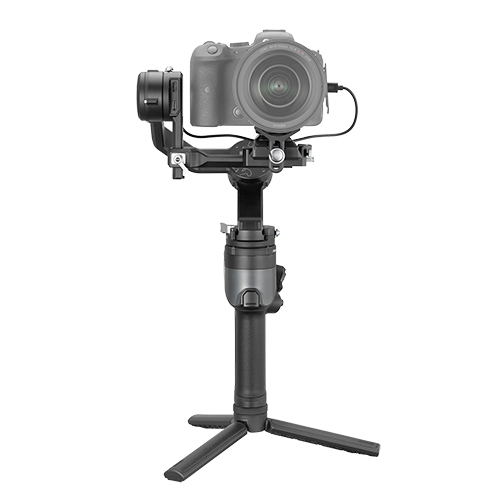

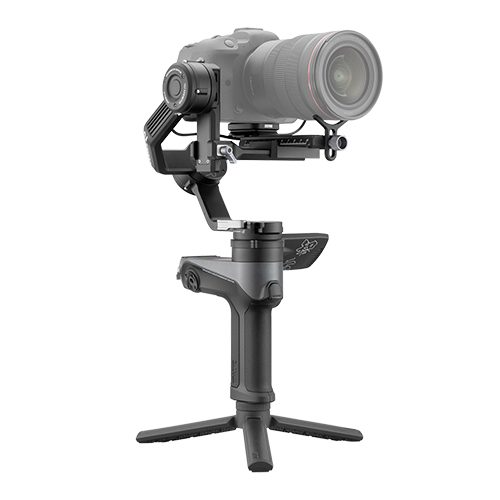

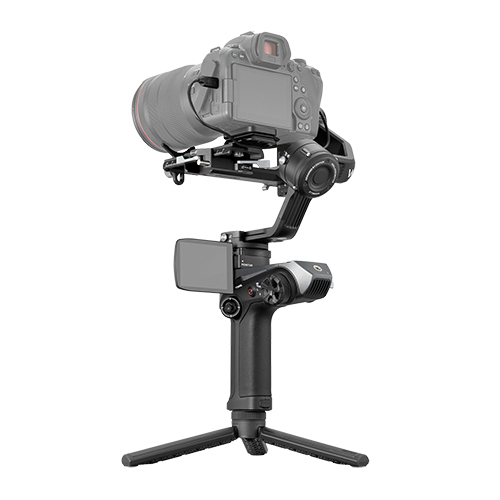

The Powerhouse ZHIYUN WEEBILL 2 Handheld Gimbal Stabiliser offers the industry-first with Flip-Out Touchscreen Command Centre and is compatible with mainstream DSLR and mirrorless camera and lens combinations such as Canon 5D IV with EF 24-70mm F2.8 or Sony A7III with FE 24-70mm F2.8 lens. Whether you’re a seasoned filmmaker, professional cinematographer, aspiring vlogger or amateur content creator, the Zhiyun-Tech WEEBILL 2 will supply smooth and seamless footage.

Powerful Infineon chip with dynamic stabilisation

The WEEBILL 2 employs an all-new Infineon chip & upgraded algorithm in a lightweight frame delivering maximum responsiveness and stabilisation capabilities. Its innovative HD flip-out touch screen provides user maximum control and creativity. Also, the MasterEye Visual Controller is a revolutionary technology that combines an image receiver, monitor, and motion controller into a single device.

The Infineon sensor with unrivalled stabilising capabilities

The utilisation of the Infineon two-filter vector-splitting integrated sensor in the WEEBILL 2 delivers unrivalled performance. The Zhiyun-Tech WEEBILL 2 can perform analysis for complicated interruptions to reliably detect and compensate for a broad spectrum of handheld instability, even in extreme conditions, thanks to its improved motor torque and core algorithm for enhanced stability.

Industry-first flip out HD screen

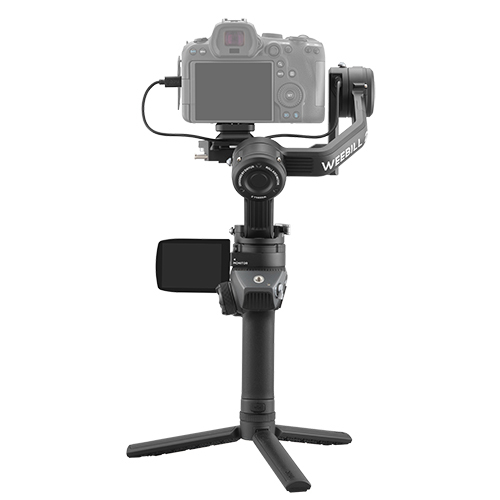

The WEEBILL 2 is the first gimbal with a feature-rich 2.88-inch full-colour, flip-out HD touchscreen providing user complete control. Its user-friendly, retractable, and rotating interface enables enhanced user interaction as well as parameter adjustment and footage monitoring in a few taps for continuous shooting. Besides, the videographer can utilise the WEEBILL 2 touchscreen to access sophisticated features like one-touch SMART FOLLOW, GESTURE CONTROL, and TIMELAPSE without needing to use the ZY PLAY app.

Enhanced ergonomic industrial design with sling grip

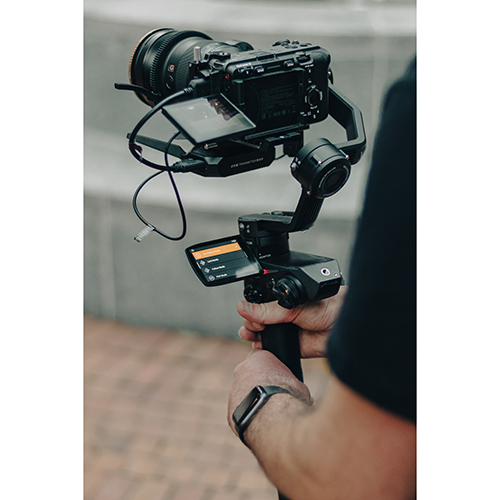

The WEEBILL 2 features an ergonomic, compact, industrial-style design with an easy-to-carry sling grip allowing the content creator to seamlessly change to this underslung mode without adding extensions or changing the shape of the gimbal. In addition, the excellent grip function allows for low angle shooting and is designed for extended hours of operation.



Min.

Standard

Max.

Remark

Operation Voltage

9.8V

11.1V

12.6V



Operation Current

160mA

-

6000mA



Charging Voltage

-

15V

-

PD Fast Charge: 15V 24W

Charging Current

-

1.6A

-



Output Voltage

-

5V

-



Output Current

-

1.5A

-

Camera Control Port

Following Deviation in Static State

±0.01°

-

±0.04°



Following Deviation in Motion State

±0.05°

±0.1°

±0.3°



Tilt Mechanical Range

- 150°

-

+190°



Roll Mechanical

Range

-260°

-

+80°



Pan Mechanical

Range

-

360°

-



Controllable Tilt Angle

-80°

-

+160°



Controllable Roll

Angle

-35°

-

+35°



Controllable Pan

Angle

-180°

-

+180°



Operation

Temperature

-10?

25?

45?



Battery Capacity

-

2600mA

h

-

Three 18650 Li-Ion

Batteries

Battery Power

-

28.86W

h

-



Battery Runtime

-

9h

-

Lab Data 1

Charging Time

-

1.6h

-

Lab Data 2

Charging Ambient

Temperature

5?



40?

Recommended

Temperature

Touch Screen Size

-

2.88"

-



Bluetooth

Bluetooth 5.0

EIRP

EIRP

Operation Frequency

2.4 GHz

Camera Charging

Able to charge for 5V/1.5A cameras

1/4” Rosette Mount

Screw Thread Carry

Weight

Carry weight=1000g,Arm

=100mm

Meet both of the

standards

Compatible Models

See camera compatibility list

Lab Data 1: The above data is collected at a specified temperature of 25?.

The WEEBILL-2 is fully charged with 18650-2600mAh battery and mounted

with Nikon D850+Sigma 24-70mm f/2.8L DG. The WEEBILL-2 is properly

balanced and put on a flat surface. The handle screen is on and solid. The

maximum runtime is 9h.

Lab Data2: This test is conducted with a 24W PD Fast Charge at a specified

temperature of 25?. The charging time is 1.6h. The actual charging time

varies with environmental factors. In addition, the lower the temperature,

the longer the charging time.

All the data in this guide is collected from internal experiments of ZHIYUN

laboratories. Under different scenarios, the above data is subject to a

margin of error. Please refer to actual use of this product.


* Specifications subject to change by the manufacturer without notice

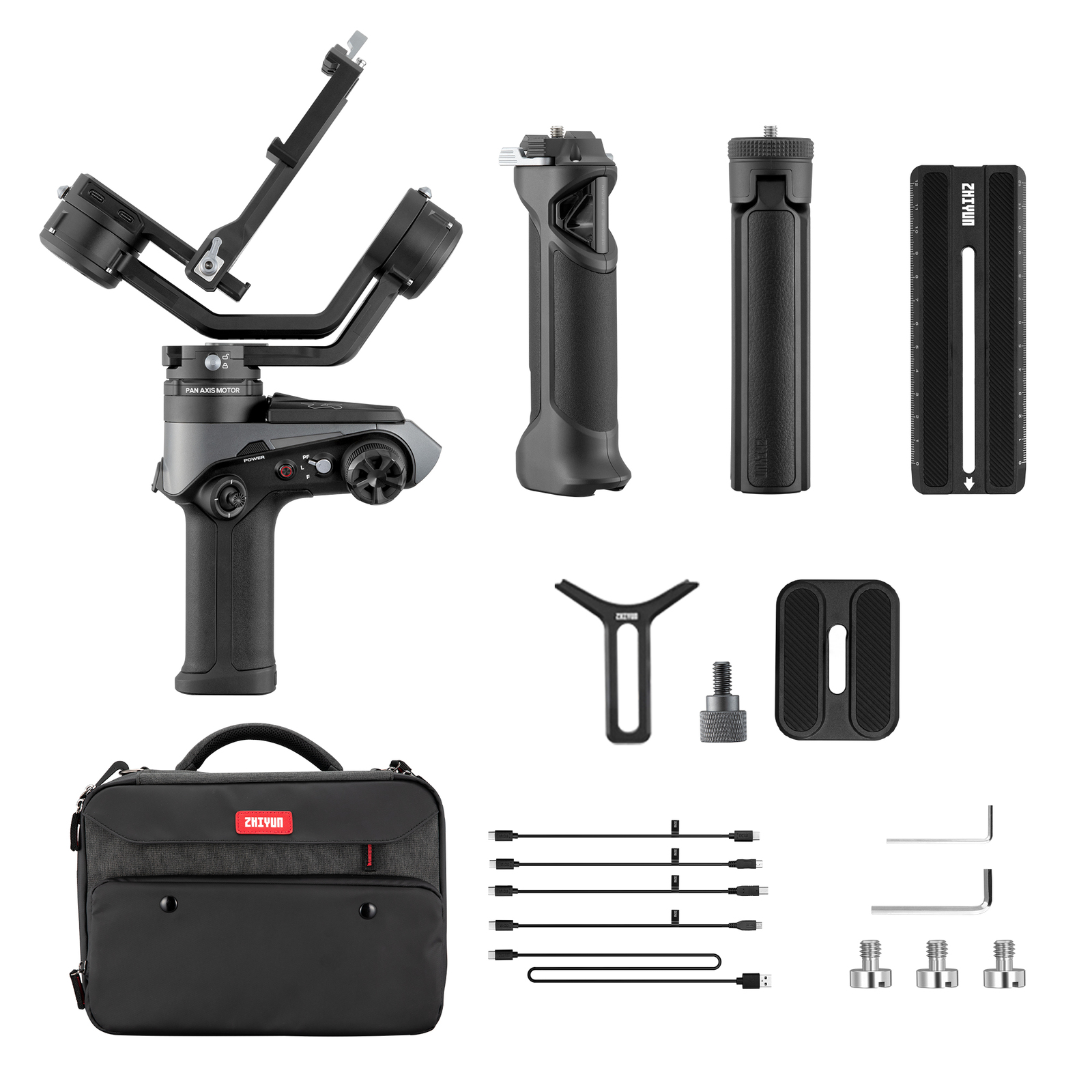

  • 1x WEEBILL 2 stabiliser
  • 1x Quick Release Plate
  • 1x Tripod
  • 1x Backing Base
  • 1x Lens Support
  • 1x USB Type-C Cable
  • 1x Canon Camera Control Cable LN-MBUC-A02
  • 1x Canon Camera Control Cable LN-NBUC-A01
  • 1x Panasonic Camera Control
  • 1x Sony Camera Control Cable LNUCUS-A03
  • 1x Quick Start Guide
  • 3x 1/4-20 Screw
  • 1x EPP Storage Box
  • 1x Sling Grip Handle(EX1A06)

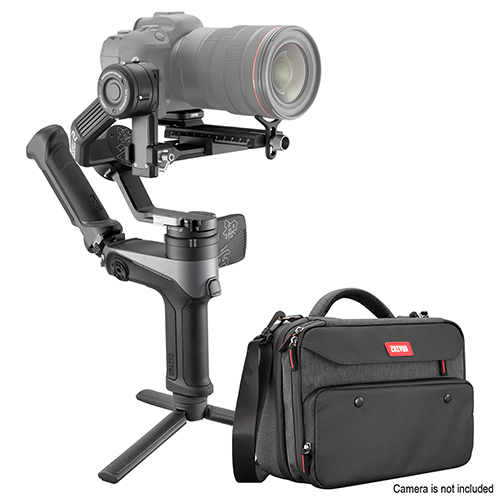

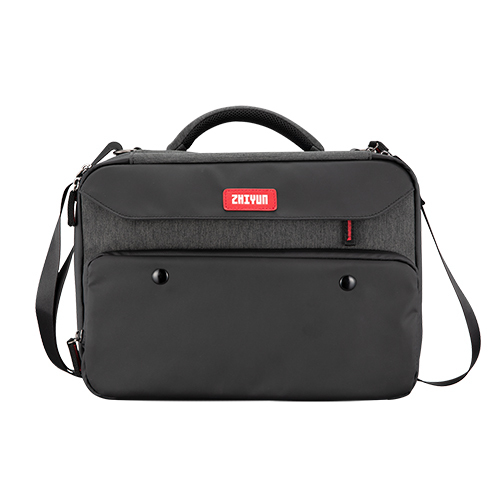

  • 1x TransMount WEEBILL Carrying Case (PRPT07)
