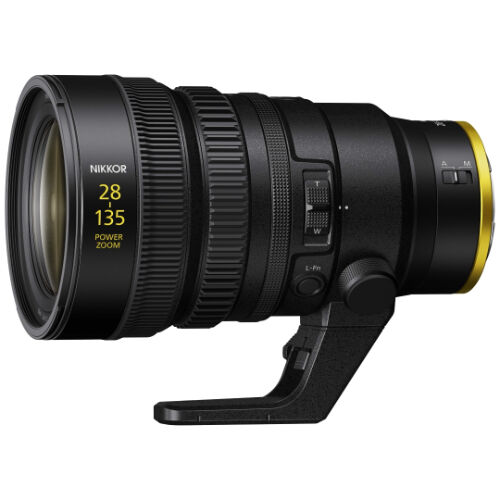

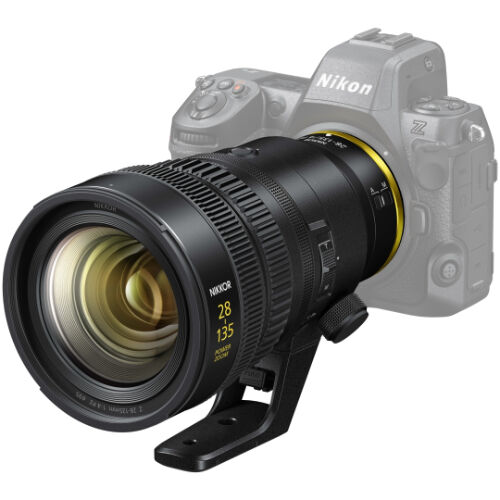

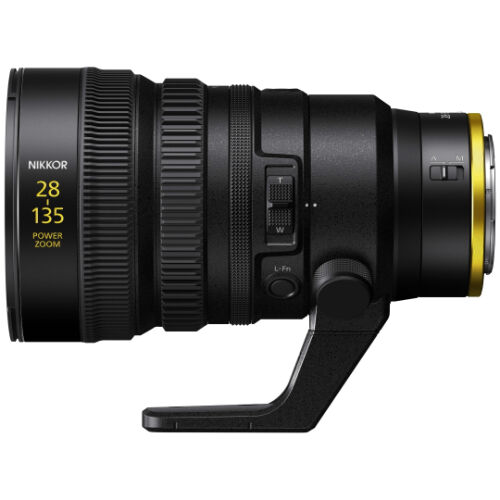

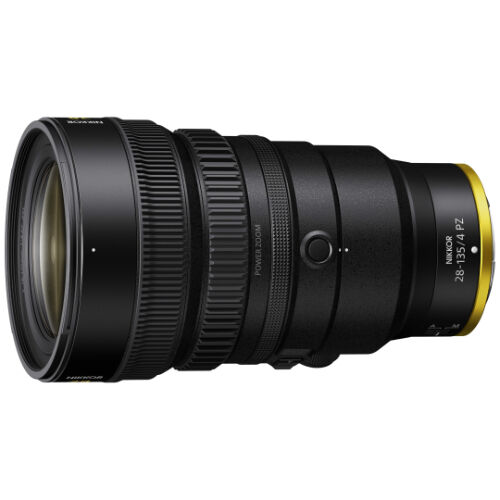

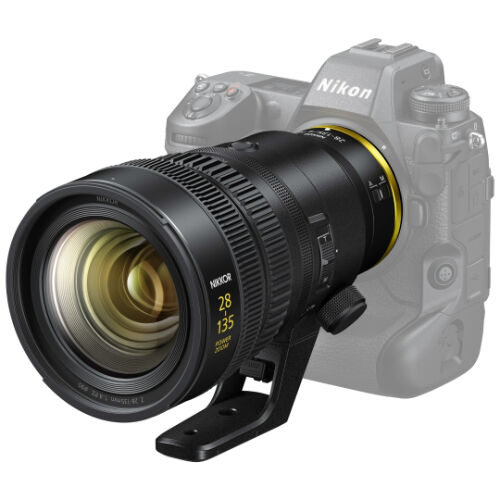

Nikon Nikkor Z 28-135mm f/4 PZ Lens

The Nikkor Z 28-135mm f/4 PZ is a standard zoom lens equipped with a power zoom that covers a broad range of focal lengths - from 28 to 135 mm. It offers videographers superior operability and functionality in situations that require agility, such as when shooting documentaries or shooting on location solo, and when reshoots aren't an option.

As the first Nikkor Z lens with a zoom lever, the Nikkor Z 28-135mm f/4 PZ not only achieves smooth zooming but also allows users to choose from 11 different zoom speeds to match their creative needs and enable a wide variety of zoom styles. In addition, shifts in focus position and the centre of gravity that occur with zooming have been minimised, allowing the user to shoot with confidence, even when constantly changing the focal length.

The Nikkor Z 28-135mm f/4 PZ also supports a variety of video accessories that help videographers capture the footage they want on location, as well as offering remote control capabilities using a computer or smartphone. Thanks to the superior Nikkor Z optical performance, this lens enables users to capture beautiful high-resolution 8K video while supporting efficient video shooting.

Primary features

The Nikkor Z 28-135mm f/4 PZ supports a convenient 28-135mm range of focal lengths, allowing for a variety of compositions without changing lenses.

The lens supports dynamic close-ups with a minimum focus distance of just 0.34 m in the 28mm to 50mm range and 0.57 m in the telephoto range.

When used with the Nikon Z9, Hi-Res Zoom can be used for an angle of view equivalent to that of the 270mm focal length with 4K video recording.

Zooming speed can be selected from 11 speeds and assigned to the zoom lever or one of the camera's Fn buttons.

Zoom ring angle and direction of rotation can be customised to suit individual preferences.

Synchro mode enables simultaneous optical zoom and Hi-Res Zoom using a single control with video recording.

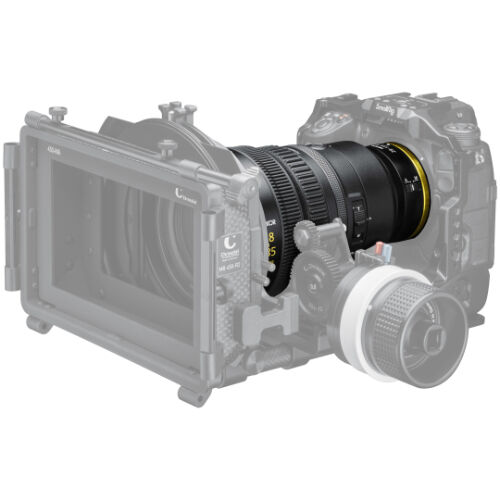

Professional video accessories, including matte boxes and follow focus systems, are supported.

Adoption of an internal zoom mechanism allows for comfortable zooming without concern for shifts in the centre of gravity that may upset the balance of the camera-lens setup, especially useful when using a gimbal.

Adoption of Nikon's best anti-reflection coating, Meso Amorphous Coat, significantly reduces ghosts and flares.

Adoption of a stepping motor (STM) ensures fast and quiet autofocusing.

Optimised for video recording with a design that suppresses focus breathing.

Support for linear MF drive enables smooth focusing.

Comes with a rectangular lens hood that helps users control the amount of light entering the lens for less ghosts and flares. A filter adjustment window allows users to adjust circular polarizing and variable ND filters while the hood is attached.

Zooming can be controlled remotely from a computer, smartphone, or tablet using NX Tether, SnapBridge, or NX Field.

L-Fn buttons, to which functions can be assigned, are positioned on the side and top of the lens for smooth operation of assigned functions even when shooting in vertical (portrait) orientation.

The lens is designed with a Nikon yellow ring around its mount.

Nikon's fluorine coat applied to the front lens element effectively repels dust, water droplets, grease, and dirt.

Designed with consideration for dust- and drip-resistance.

Mount Nikon Z mount
Focal length 28-135 mm
Maximum aperture f/4
Lens construction 18 elements in 13 groups (4 aspherical lenses, 3 ED lenses, 1 ED aspherical lens)
Angle of view Full size/FX format: 75°-18°10'
  APS-C size/DX format: 53°-12°
Focusing system Internal focusing (IF) system
Diaphragm blades 9 (rounded diaphragm opening)
Aperture system Automatic aperture with electromagnetic diaphragm mechanism
Aperture range f/4-22
Minimum focus distance 0.34 m wide end / 0.57m telephoto end from focal plane
Maximum reproduction ratio 0.15x (wide end) / 0.25x telephoto end
Weight Approx. 1.21 kg (with tripod collar) / Approx. 1.12 kg (without tripod collar)
Maximum diameter x length Approx. 10.5cm x 17.75 cm
Lens mount diameter Approx. 10.4cm
Filter-attachment size 95 mm
Colour Black
AF drive motor Stepping motor (STM)
Meso Amorphous Coat Yes
Fluoride Coat Yes
Focus mode switch Yes
Front lens cap LC-95B Lens Cap (supplied)
Rear lens cap LF-N1 Lens Cap (supplied)
Lens hood HB-116 Lens Hood (supplied)
Lens case CL-C5 Lens Case (supplied)


* Specifications subject to change by the manufacturer without notice.

  • Nikon Nikkor Z 28-135mm f/4 PZ Lens
  • LC-95B Lens Cap
  • LF-N1 Lens Cap
  • HB-116 Lens Hood
  • CL-C5 Lens Case
