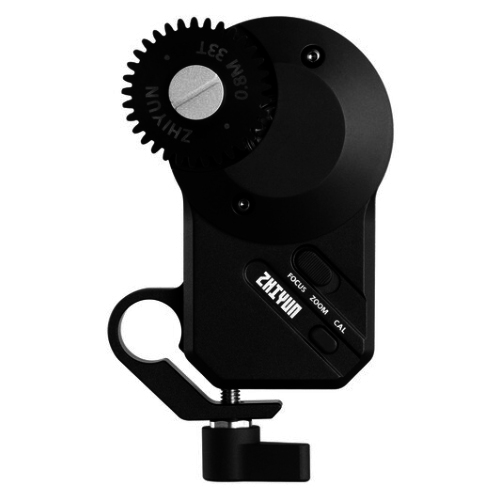

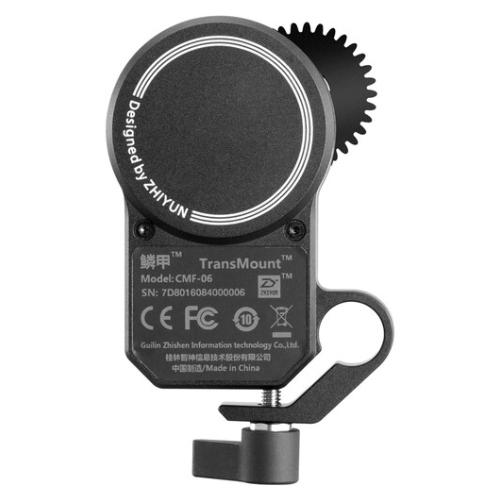

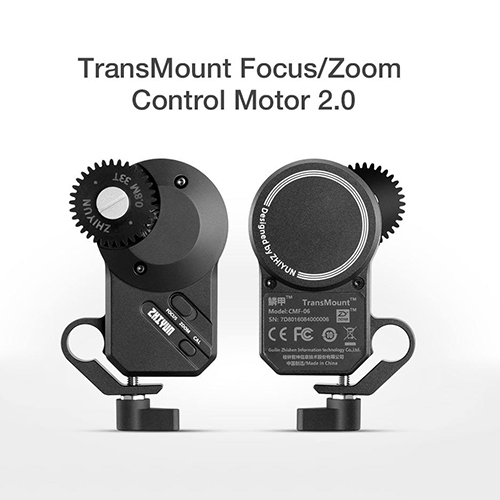

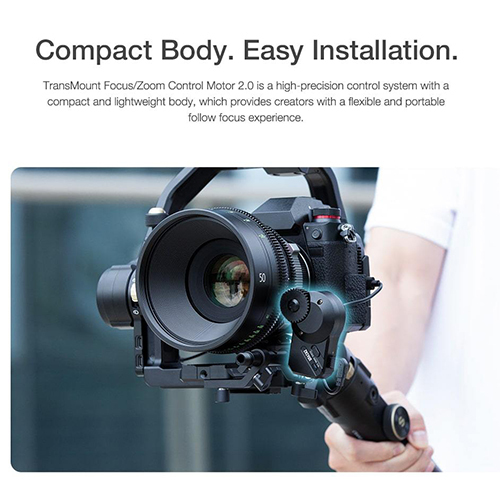

The TransMount Focus/Zoom Control Motor 2.0 is a high-precision control system with a compact and lightweight design that allows producers to have a flexible and portable follow focus experience. It is compatible with the Zhiyun-Tech WEEBILL-2, WEEBILL-S, CRANE 3S, and CRANE 2S gimbals.

TransMount Focus/Zoom Control Motor 2.0 has an ultra-low latency of 100 milliseconds and can be synchronously operated via the stabilizer's wheel, allowing accurate focus control with ease. The thickness and contact area of the motor gears are significantly improved, ensuring secure installation and consistent focusing.

Compatible Stabilizer

Crane 2S, Weebill S, Weebill 2, Crane 3S

Operating Voltage

5-24V

Operating Current

Quiescent current: 100mA (8.4V); Stall current: 2.5V (8.4V)

Max. Torque

0.2Nm

Max. Speed

250RPM

Operating Temperature

-20 to 45°C

Gear

Module: 0.8, No. Of Teeth: 33

Focus Gear Strip

Module: 0.8, No. Of Teeth: 135, Length: 340mm

Product Size (L*W*H)

87.6*556.7*27.5mm

Weight

105g


* Specifications subject to change by the manufacturer without notice

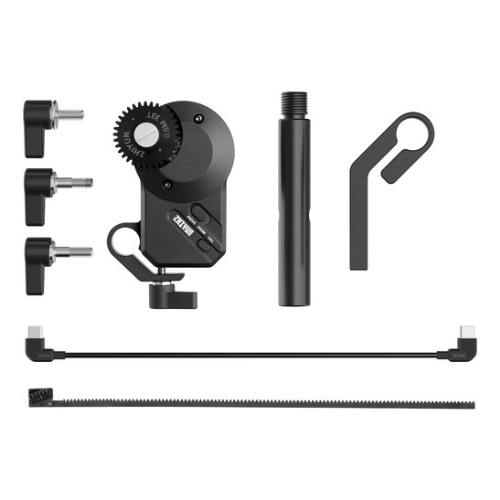

  • 1 x CMF-06 TransMount Focus/Zoom Control Motor
  • 1 x Rod Mount
  • 1 x Rod
  • 1 x USB Cable
  • 1 x Focus Gear Strip
  • 1 x Locking Screw
