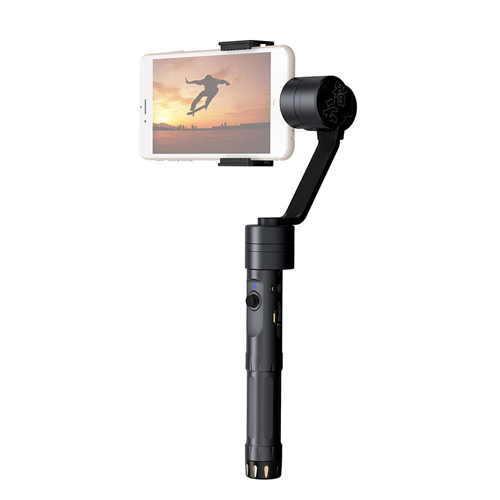

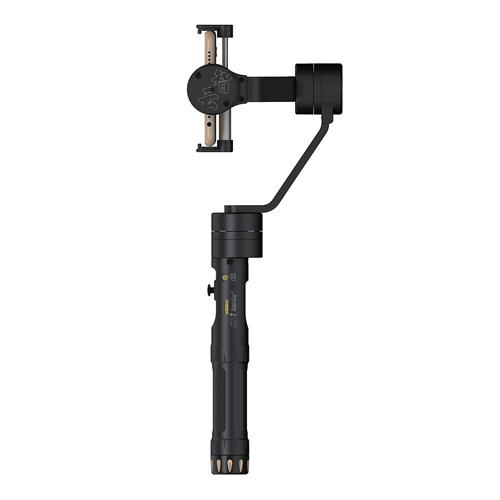

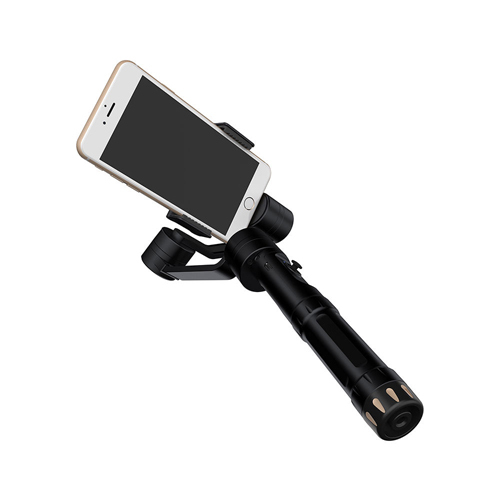

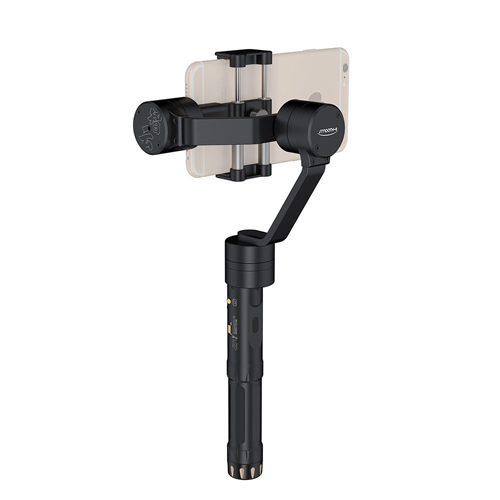

Zhiyun Smooth II Smartphone 3-Axis Handheld Gimbal - Ex Demo
SKU code: 34031
Australian Owned, Online Since 2001
Local Contact Centre
Industry Experts, Knowledgeable Team
Australia Wide Delivery
From Beginner to Pro, Affordable Gear
Secure Payment Methods
Key Features:
- 3-Axis Gimbal with Pan, Tilt and Roll
- 360 Degree Pan Movement
- Smartphone App for Fine-Tuning
- Rotational Joystick for Changing Modes
- 3400mAh Rechargeable Li-ion battery
- 1/4-Inch Tripod Screw Thread
- Noiseless Motors
- Aluminium Alloy Build/Metal Phone Holder
The Zhiyun Smooth II is a handheld 3-axis gimbal that eliminates any shaky movements when using a smartphone to take videos. It pairs with a smartphone via Bluetooth and has an app which can be installed on Android and iOS devices allowing you to easily use the gimbal to take cinematic smooth quality videos on your smartphone.
Handheld 3-Axis Gimbal
The Zhiyun Smooth II is a gimbal which has a pan, tilt and roll axis motor to compensate for shakes and bumps. By removing any movement along the 3 axes it allows you to take ultra-smooth videos with your smartphone. This can be really useful when combined with a flagship mobile device like the iPhone 6s Plus or Samsung Galaxy S7 to create high quality 4K footage.
Wide range of Motion Available
With the gimbal you have 360° degrees of movement available with the pan motor, this is useful for taking panoramic shots with your smartphone as well as capturing smooth left to right pans. The gimbal boasts 270° tilt range and features 90° of roll movement to provide a wide range of motion. You can even use switch the roll axis of the Gimbal to shoot in vertical mode to allow you to shoot in portrait mode for selfies and bring more creativity to your videos and images.
Smartphone App
There is a smartphone app that is designed to be used with the gimbal and it is available for Android and iOS devices. Using the App you can calibrate the gimbal to fine-tune its balance, upgrade the firmware and control the modes and other settings when in operation.
Stepless Rotational Joystick
There is a stepless rotational joystick on the gimbal that allows you control your camera turning left and right along the pan axis, or up and down along the tilt axis. This makes it possible to capture smooth camera movements while at the same time compensating for vibration, unlocking massive cinematic potential with your portable mobile device.
3400mAh Rechargeable Battery
There is a 3400mAh rechargeable Li-ion battery that is included along with the Gimbal and it delivers up to 5 hours of power, easily enough time to shoot videos with your family while you’re on holiday or to help to capture that special moment free of hand shake. Also the battery can be recharged while the Gimbal is in use simply by plugging the provided cable into the micro USB port. The cable also can be used when you need to upgrade the firmware on the gimbal to ensure up-to-date performance.
1/4-Inch Tripod Screw
With a standard camera 1/4-inch tripod screw available at the bottom of the Gimbal you can easily position it on a variety of tripods or Gorillapods for when you want to be in the shot or to combine the unit with a monopod for increased stability over long periods.
Fourth Generation Motors
The motors on gimbal are the latest upgrade from the previous models, and when they are in operation there is virtually no noise produced making sure that the sound in your videos is clear and un-interrupted.
Aluminium Alloy Build
The premium aviation grade aluminium alloy build of the Smooth-II Gimbal ensures that it feels comfortable in the hand and is also drop resistant. This makes the gimbal a sturdier unit that will last for a long time.
Metal Smartphone Holder
As for the smartphone holder it is made from metal and has a thumbscrew which ensures that you are able to attach your smartphone easily and keep it secure.
Model |
Smooth-II |
Dimensions |
115mmx345mmx285mm |
Operation current |
250mA |
Operation temperature |
10°C-45°C |
Run-time |
5h |
Weight |
395g (Battery excluded) |
Payload weight |
200g |
Tilt axis mechanical movement range |
270° |
Roll axis mechanical movement range |
90° |
Pan axis mechanical movement range |
360° |
Supports smartphone models |
Almost all smartphones |
Maximum smartphone width |
81.5mm (Maximum mount |
Minimum smartphone width |
55mm(Minimum mount stretching width) |
Battery Charger Name |
Zhiyun Li-ion battery charger |
Battery Charger Model |
18650 Li-ion battery charger |
Battery Charger Input voltage |
5V |
Charging current |
800mA |
Battery Name |
Zhiyun Li-ion battery |
Battery Model |
18650Li-ion |
Battery Capacity |
3400mAh |
Battery Voltage |
3.7V |
Battery type |
Li-ion |
Whole battery weight |
45g (Single) |
Battery Charging temperature |
0°C-45°C |
Battery Discharge temperature |
10°C-45°C |
Battery Storage temperature |
25°C Room temperature |
Maximum charging current |
800mA |
Wireless remote controller Name |
Zhiyun wireless remote controller |
Wireless remote controller Model |
ZW-BO1 |
Wireless remote controller Run-time |
=50h |
Wireless remote controller Maximum valid signal range |
10m(No interference, No shelter) |
Wireless remote controller Battery type |
Li-ion |
Wireless remote controller Charging pattern |
5V adapter or USB |
Wireless remote controller Operation temperature |
0°C-40°C |
Wireless remote controller Charging temperature |
0°C-40°C |
Wireless remote controller Capacity |
150mAh |
* Specifications subject to change by the manufacturer without notice
