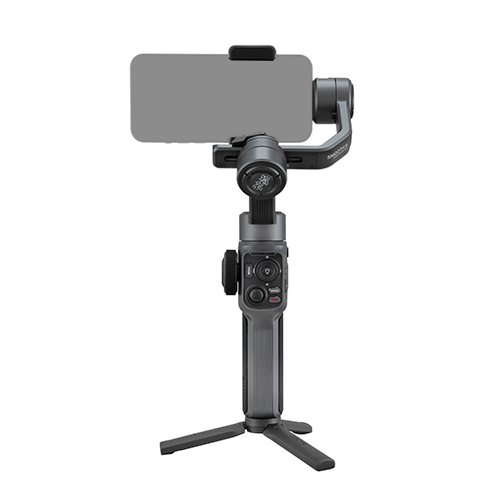

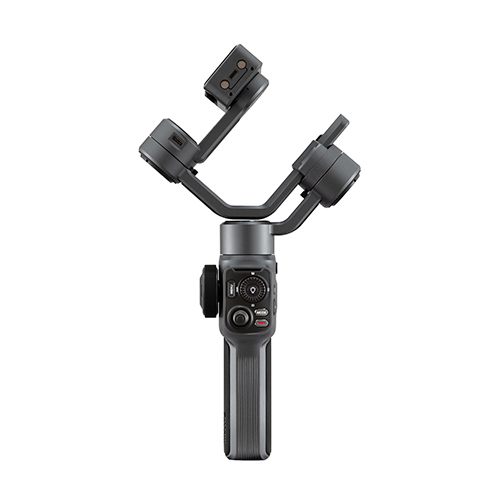

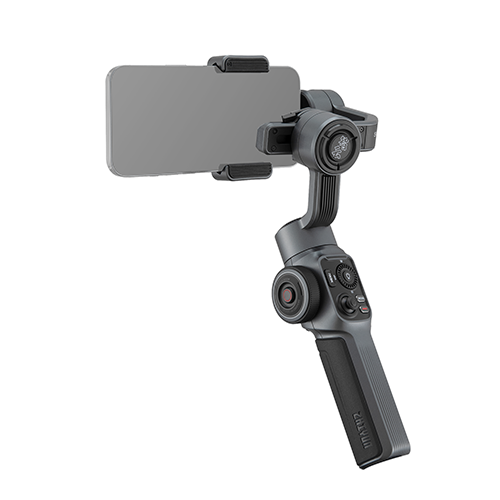

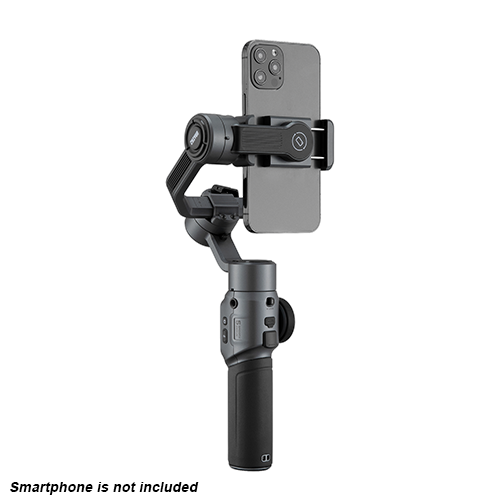

Zhiyun Smooth 5 Smartphone 3-Axis Handheld Gimbal
SKU code: 48640
- 320g Payload
- Strong, powerful magnetic fill light (600 lumens)
- Upgraded motor performance
- Smart lock design
- All-in-One control panel
- Multifunctional control wheel
- Creative function
- Smart editor
Design - Upgraded motor performance and algorithm
The ZHIYUN SMOOTH 5 gimbal is smaller than its predecessor, but it performs considerably better due to improved motor performance and algorithm. The industry-standard 3-axis design allows for incredibly smooth movement in all angles, even at extreme angles. It attaches comfortably to phones favoured by mobile videographers like the iPhone 13 Pro MAX, Xiaomi Mi Mix Fold, Huawei Mate X2, and Samsung Galaxy S21 Ultra thanks to its clever lock design, making it easy to shoot in all angles and move seamlessly from portrait to landscape mode.
Easy to use control panel - Point, click, and shoot
Users will feel appreciate the all-in-one control panel, which allows them to alter multiple aspects with only one hand without having to use an app. There's also a multipurpose control wheel that allows users to fine-tune zooming and focusing.
Creative Functions - Next-generation tools for the mobile creative genius
Mobile filmmakers can achieve their creative best with the ZHIYUN SMOOTH 5 Gimbal. Magical Pano, which enables for a spectacular view in your smartphone with 180° panorama, Timelapse, which allows you to watch the time go by at a faster pace to experience scenes that used to take a longer time, and Live Stream Master, which enables for face tracking for the ideal live stream experience, are some of the creative features included in the SMOOTH 5 Smartphone Gimbal.
Fill light - Light up every scene with Hollywood quality lumens
The ZHIYUN SMOOTH 5 Smartphone Gimbal includes a magnetic fill light that generates 580 lumens and can be dimmed to exactly illuminating any situation thanks to the stepless dimming control. It also includes colour filters and can be mounted on either side of the smartphone..
Smart Editor- Make Hollywood Magic with a few clicks
The raw footage is transformed into the masterwork throughout the editing process. The ZHIYUN SMOOTH 5 Gimbal has a comprehensive smart editing suite, allowing mobile filmmakers to produce their greatest work yet. With the ZY Cami Editor, you may impress your viewers with your work of art by reversing the clip and editing it while adding filters, stickers, subtitles, and background music. Filmmakers can use the SMART Mode to pre-program the gimbal and achieve creative perfection with dozens of video templates that include outstanding special effects and music.
Item |
Min. |
Standard |
Max. |
Remark |
Operation Voltage |
6.5V |
7.4V |
8.4V |
|
Operation Current |
70mA |
|
3000mA |
|
Charging Voltage |
5V |
|
9V |
|
Charging Current |
— |
|
1600mA |
|
Output Voltage |
— |
5V |
— |
|
Output Current |
— |
— |
1A |
|
Following Deviation in Static State |
±0.01° |
|
±0.04° |
|
Following Deviation in Motion State |
±0.05° |
±0.1° |
±0.3° |
|
Tilt Mechanical Range |
-140° |
349° |
209° |
Including storage state |
Roll Mechanical Range |
-90° |
300° |
210° |
Including storage state |
Pan Mechanical Range |
-180° |
360° |
180° |
|
Controllable Tilt Angle |
-90° |
- |
+170° |
|
Controllable Roll Angle |
-50° |
- |
+50° |
|
Controllable Roll Angle |
-180° |
- |
+180° |
|
Operation Temperature |
-10℃ |
25℃ |
45℃ |
|
Charging Ambient Temperature |
0℃ |
25℃ |
45℃ |
|
Battery Capacity |
— |
2600mAh |
— |
Built-in battery |
Runtime |
4.5h |
- |
25h |
Lab Data 1 |
Charging Time |
2h |
- |
4h |
Lab Data 2 |
Payload |
150g |
- |
300g |
|
Horizontal Arm Adjustment Range |
-12mm |
47mm |
35mm |
|
Mounting Clamp Supporting Range |
50mm |
- |
90mm |
|
Bluetooth |
Bluetooth 4.2 |
|||
EIRP |
<3dBm |
|||
Operation Frequency |
2.402GHz~2.480GHz |
|||
Product Dimension (Folded) W*D*H |
311*168*52mm |
|||
Product Net Weight |
615g |
|||
|
|
|||
|
|
|||
|
|
|||
Compatible Model |
1. Smartphones that their width is within the holder's capable width. |
|||
"""Lab Data 1"": The data is collected under the below conditions: a specified temperature of 25℃; the gimbal has been balanced and mounted with an iPhone XR (220g). When the fill light is set at the highest brightness level, the runtime of the gimbal is 4.5h. When the fill light is off and the gimbal is under standby state, the runtime is 25h.
""Lab Data 2"": When charging with a 15W Fast Charge at a specified temperature of 25℃, the charging time is 2h. When charging with a 5V/2A rated power adapter at a specified temperature of 25℃, the charging time is 4h. The actual charging time varies with environmental factors. In addition, the lower the temperature, the longer the charging time. All the data in this guide is collected from internal experiments of ZHIYUN laboratories. Under different scenarios, the above data is subject to a margin of error. Please refer to actual use of this product. " |
* Specifications subject to change by the manufacturer without notice
- Zhiyun Smooth 5 Smartphone 3-Axis Handheld Gimbal
- Tripod (M2)
- USB Type-C Charging Cable
Manufacturer Warranty
This product comes with a
12 month Australian warranty
from Zhiyun Australia
