Design - Upgraded motor performance and algorithm

The ZHIYUN SMOOTH 5 gimbal Combo is smaller than its predecessor, but it performs significantly better thanks to increased motor performance and algorithm. The industry-standard 3-axis design enables for extremely smooth movement in all directions, even at extreme angles. It easily attaches to phones popular among mobile videographers, such as the iPhone 13 Pro MAX, Xiaomi Mi Mix Fold, Huawei Mate X2, and Samsung Galaxy S21 Ultra, thanks to its innovative lock mechanism, allowing you to film from all angles and effortlessly switch between portrait and landscape modes.

Easy to use control panel - Point, click, and shoot

Users will enjoy the all-in-one control panel, which enables them to change numerous features with only one hand and without the need for an app. A multipurpose control wheel is also included, allowing users to fine-tune zooming and focusing.

Creative Functions - Next-generation tools for the mobile creative genius

Mobile filmmakers can achieve their creative best with the ZHIYUN SMOOTH 5 Gimbal - Combo. Magical Pano, which enables for a spectacular view in your smartphone with 180° panorama, Timelapse, which allows you to watch the time go by at a faster pace to experience scenes that used to take a longer time, and Live Stream Master, which enables for face tracking for the ideal live stream experience, are some of the creative features included in the SMOOTH 5 Smartphone Gimbal.

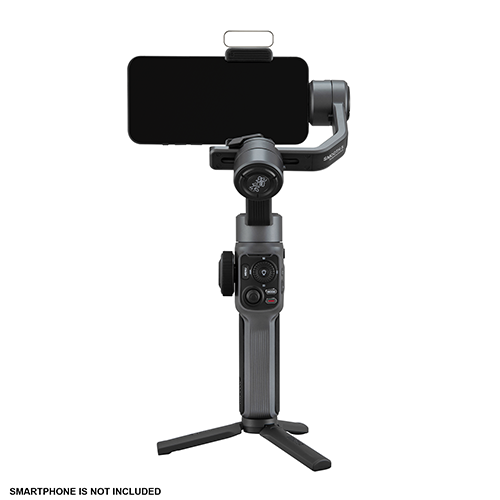

Fill light - Light up every scene with Hollywood quality lumens

The ZHIYUN SMOOTH 5 Smartphone Combo Gimbal comes with a magnetic fill light that produces 580 lumens and can be lowered to precisely illuminate any setting courtesy to the stepless dimming control. It also comes with colour filters and can be attached to either side of the smartphone.

Smart Editor- Make Hollywood Magic with a few clicks

The raw footage is transformed into the masterwork throughout the editing process. The ZHIYUN SMOOTH 5 Combo Gimbal has a comprehensive smart editing suite, allowing mobile filmmakers to produce their greatest work yet. With the ZY Cami Editor, you may impress your viewers with your work of art by reversing the clip and editing it while adding filters, stickers, subtitles, and background music. Filmmakers can use the SMART Mode to pre-program the gimbal and achieve creative perfection with dozens of video templates that include outstanding special effects and music.

Item

Min.

Standard

Max.

Remark

Operation Voltage

6.5V

7.4V

8.4V



Operation Current

70mA



3000mA



Charging Voltage

5V



9V



Charging Current



1600mA



Output Voltage

5V



Output Current

1A



Following Deviation in Static State

±0.01°



±0.04°



Following Deviation in Motion State

±0.05°

±0.1°

±0.3°



Tilt Mechanical Range

-140°

349°

209°

Including storage state

Roll Mechanical Range

-90°

300°

210°

Including storage state

Pan Mechanical Range

-180°

360°

180°



Controllable Tilt Angle

-90°

-

+170°



Controllable Roll Angle

-50°

-

+50°



Controllable Roll Angle

-180°

-

+180°



Operation Temperature

-10

25

45



Charging Ambient Temperature

0

25

45



Battery Capacity

2600mAh

Built-in battery

Runtime

4.5h

-

25h

Lab Data 1

Charging Time

2h

-

4h

Lab Data 2

Payload

150g

-

300g



Horizontal Arm Adjustment Range

-12mm

47mm

35mm



Mounting Clamp Supporting Range

50mm

-

90mm



Bluetooth

Bluetooth 4.2

EIRP

<3dBm

Operation Frequency

2.402GHz~2.480GHz

Product Dimension (Folded) W*D*H

311*168*52mm

Product Net Weight

615g

Compatible Model

1. Smartphones that their width is within the holder's capable width.
2. Smartphone Thickness10mm



"""Lab Data 1"": The data is collected under the below conditions: a specified temperature of 25; the gimbal has been balanced and mounted with an iPhone XR (220g). When the fill light is set at the highest brightness level, the runtime of the gimbal is 4.5h. When the fill light is off and the gimbal is under standby state, the runtime is 25h.



""Lab Data 2"": When charging with a 15W Fast Charge at a specified

temperature of 25, the charging time is 2h. When charging with a 5V/2A rated power adapter at a specified temperature of 25, the charging time is 4h. The actual charging time varies with environmental factors. In addition, the lower the temperature, the longer the charging time.

All the data in this guide is collected from internal experiments of ZHIYUN laboratories. Under different scenarios, the above data is subject to a margin of error. Please refer to actual use of this product.


* Specifications subject to change by the manufacturer without notice

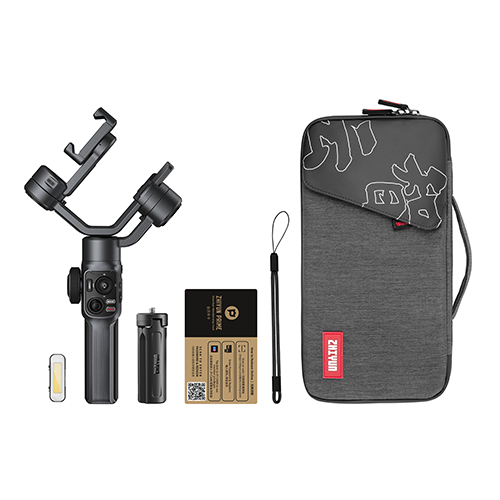

  • Zhiyun Smooth 5 Smartphone 3-Axis Handheld Gimbal
  • Tripod (M2)
  • Fill Light
  • Fill Light Filters X 4
  • Wrist Strap (Q2)

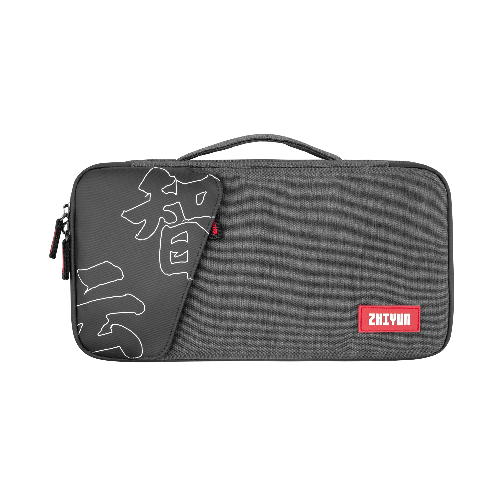

  • Protective Bag
  • Membership Card
  • USB Type-C Charging Cable
