4K 120fps & Full HD 240fps

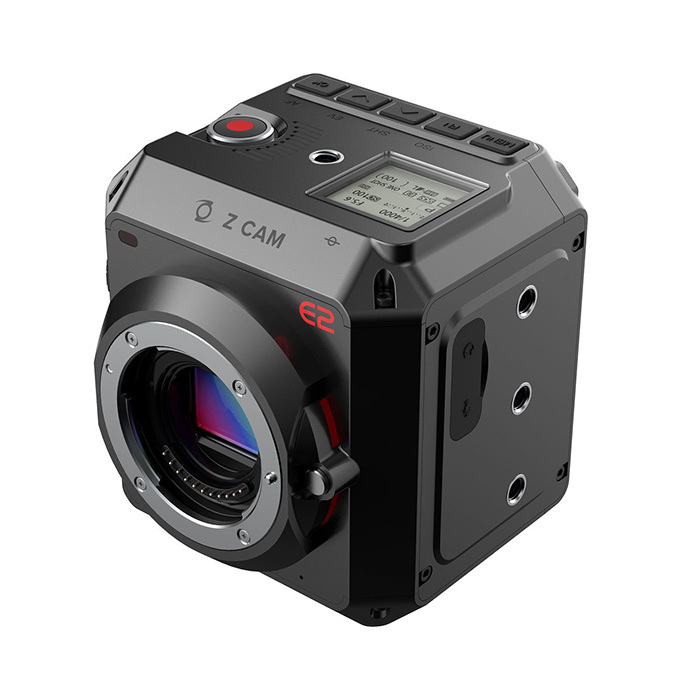

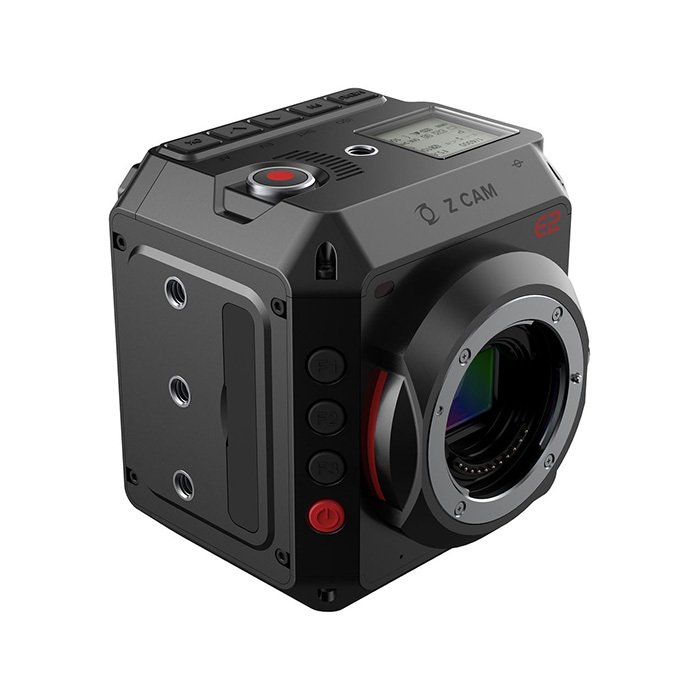

The Z Cam E2 Cinema Camera looks to disrupt the cinematic market with its budget 4K Micro Four Thirds mount camera. Its 4K DCI/UHD recording capability at up to 120fps and 240fps in Full HD hints that this is a camera with the image quality, speed, connectivity and reliability that professional cinematographers, production houses, media agencies and film/art schools are looking for.

Up to 16-Stops of Dynamic Range

The E2’s 10-bit colour support and 13 stops of dynamic range using the Z-Log2 profile offers incredible post-processing and colour grading versatility. Delivering excellent tonal gradations and colour accuracy ensures your clips can be withstand aggressive colour grading while limiting deterioration. Additionally, a Wide Dynamic Range mode can be utilised to further increase your dynamic range to an amazing 16 stops.

Triple Native ISO Imaging Circuitry

A triple native ISO of 80, 160 and 800 means you can adjust your exposure from extremely bright scenes to darker scenes while maintaining an excellent signal-to-noise ratio. The end result is noticeably less noise, especially when shooting wide open, across a range of scenarios for maximum image quality.

Apple ProRes 4:2:2 10-Bit Certified

Designed to make integration easy, the Z Cam E2 Apple ProRes certified, recording in 422 10-bit, or H.264 and H.265 codecs for efficient storage utilisation and maximum compatibility with your existing editing workflow.

CFast 2.0 Compatibility

Its ultra-fast 4K@120fps and 1080p@240fps recording is made possible thanks to the inclusion of a CFast 2.0 slot for storage. The convenience of CFast 2.0 over SSD storage allows you to easily swap out cards during a shoot for import or backup, or simply swap another card when you run out of memory.

No Recording Time Limit

With no recording time-limit, the E2 can record to the capacity of your media storage, adding peace of mind for single shot scenarios such as event coverage of conferences, concerts, keynotes, panel discussions and more. A USB-C port can be used for connecting an external SSD to make your workflow from shooting to editing even more convenient.

USB-C Interface

The USB-C interface can also be utilised for live view can camera control using a compatible Apple iOS device and the Z-Camera app installed. The app also works via Wi-Fi, allowing you to wirelessly control camera settings and stop/start recording remotely.

HDMI 2.0 Interface

Video output is supported via a HDMI 2.0 interface, delivering a maximum DCI 4K@60 fps, 10-bit colour, YUV 422 for native monitoring or output to an external recorder.

Gigabit Ethernet Port

A Gigabit Ethernet port built into the camera body facilitates ultra-fast 1000Mbps data transfer and remote camera control. This data port also opens up possibilities for live streaming, enabling you to broadcast live, high quality video over the internet.

Sync up to 100 Cameras

The E2 also supports multi-cam synchronisation. A built-in 10-pin LEMO port enables you to daisy chain up to 100 devices for pixel level multi-camera sync, facilitating complicated multi-angle setups with ease.

Robust Aluminium Design

The camera itself employs a fashion over function ethos. Made from aluminium for its desirable weight, strength and heat dissipation properties, making the unrestricted recording times possible.

Extensive Accessory Mounting Points

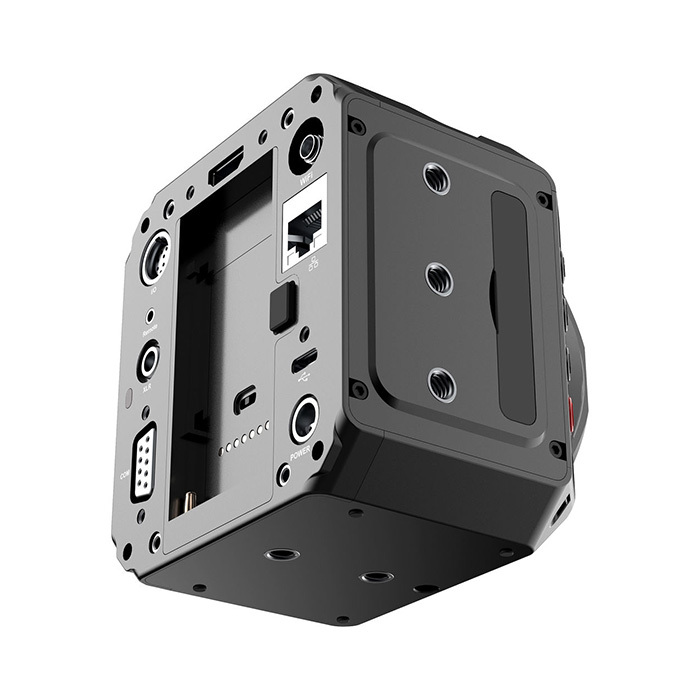

The Z-Cam E2 also features nine threaded mounting holes in its chassis to facilitate multiple mounting options for a cage, external monitor, accessory arms, audio gear, barn doors, focus pullers and virtually anything else you can think of that will help get the shot.

Sensor Type

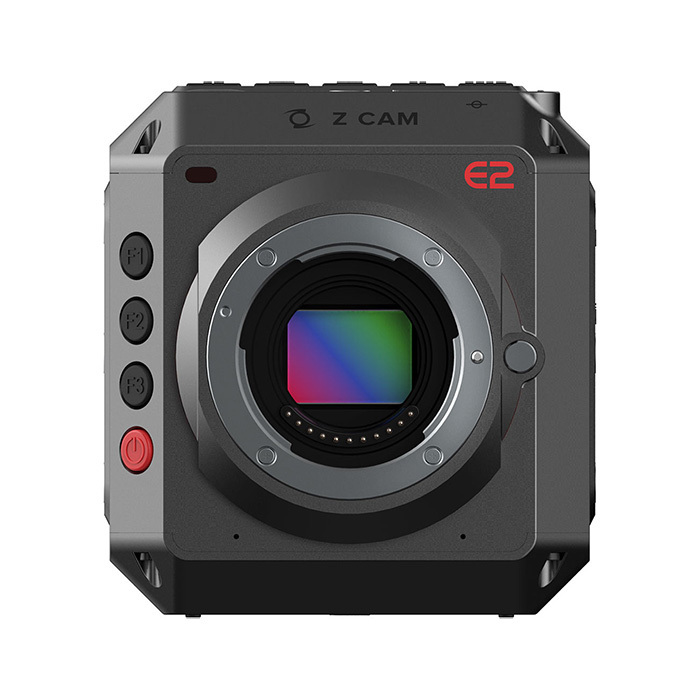

4/3" WDR CMOS Sensor

Sensor Size

19.0 x 13.0 mm

Effective Pixels

10.28M

Dynamic Range

13~15 Stops (Z-Log2) / 16 Stops (with WDR activated)

Lens Mount

Micro Four Thirds

Microphone

Built-in Stereo Microphone

Resolution

4096 x 2160 (C4K) / 3840 x 2160 (4K)

4096 x 1728 (C4K 2.4:1) / 3840 x 1620 (4K 2.4:1)

3696 x 2772 / 3312 x 2760

2704 x 1600 / 1920 x 1080

Frame Rate

59.94 / 50 / 29.97 / 25 / 24 / 23.98 fps

Max Variable Frame Rate

120 fps for 3840 x 2160 (H.265 only)



150 fps for 4096 x 1728 (H.265 only)



160 fps for 3840 x 1620 (H.265 only)



160 fps for 2704 x 1600 (H.265 only)



59.94 fps for 3696 x 2772 (Apple ProRes & H.265)



59.94 fps for 3312 x 2760 (Apple ProRes & H.265)



* Please refer to manufacturer website for more detail of the max frame rate for different encoders.

Max Bit Rate

H.265 / H.264

220 Mbps for 4096 x 2160 / 3840 x 2160 / 4096 x 1728 / 3840 x 1620 / 3696 x 2772 / 3312 x 2760 / 2704 x 1600

200 Mbps for 1920 x 1080

ProRes
Please check manufacturer website for the bit rate of ProRes encoding.

Colour Bit Depth

10-bit (H.265 & ProRes) & 8-bit (H.264)

Video Encoder

ProRes 422 HQ / ProRes 422 / ProRes 422 LT / ProRes 422

ZRAW / Proxy / H.265 main 10 profile / H.264 high profile

Audio Format

24-bit 48 kHz

Audio Encoder

AAC / PCM (for MOV only)

File Format

MOV / MP4

Record Mode

Video / Time Lapse Video

ISO

Auto, Manual (500 ~ 102400 / 220 ~ 51200 with WDR activated), Native ISO

Shutter Speed

Auto, Manual (up to 1/8000”) or

Shutter Angle

Auto, Manual (1° ~ 360°)

White Balance

Auto, Pre-set, Manual (2220K ~ 7500K)

Focus Mode

MF / AF / CAF


Brightness / Contrast / Saturation / Sharpness

Image Profile

Rec.709 / Z-Log2 / FLAT / HLG

Audio

Audio In / Out Level

Time Code

Current Time / Manual Input / External Input

Storage

Media CFAST 2.0

File System

exFAT

HDMI

HDMI 2.0 Type A (video output up to C4K @60fps)

USB

USB 3.0 Type C for camera control & data transfer only

I/O

10-pin LEMO port for synchronization (requires additional Sync Cable, not included)

COM

DB-9 connector, supports RS-232

Remote Control

2.5 mm jack socket (Sony LANC compatible)

Audio-in

3.5 mm stereo jack socket for active microphone only, or 5-pin LEMO port for dual channel XLR microphone (requires additional XLR audio connector)

Audio-out

3.5 mm stereo jack socket

Wi-Fi

802.11n, 2.4G with external antenna port

Ethernet

Gigabit Ethernet port for control, setting & live streaming

Battery

Sony NP-F series compatible (Battery not included)

External Power Supply

DC 12V 5A (4-pin LEMO socket), with LEMO connector and AC/DC power adapter

Material

Aluminium Alloy

Weight

757 g (without lens)

Dimensions (W x H x D)

91.2 mm x 99.2 mm x 89.1 mm (without lens)

Storage Temperature

-20 °C ~ 60 °C

Operation Temperature

0 °C ~ 40 °C


* Specifications subject to change by the manufacturer without notice

  • Z CAM E2 Professional 4K Cinematic Camera
  • LEMO Power Cable with D-Tap Plug
  • D-Tap Connector
  • AC/DC Power Adapter
  • Power Cable
  • Lens Mount Cap

Manufacturer Warranty


This product comes with a

12  month Australian warranty

from Z CAM Australia
