Tilta ES-T18 Overview

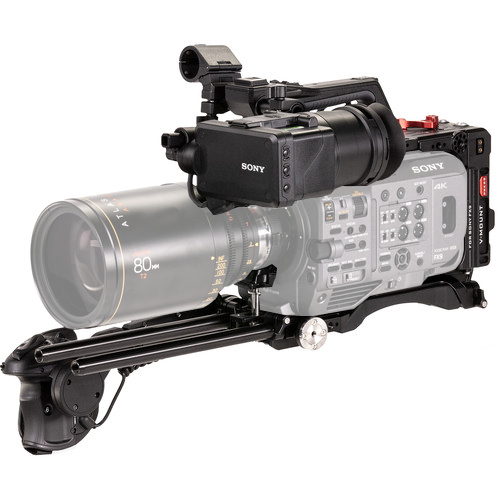

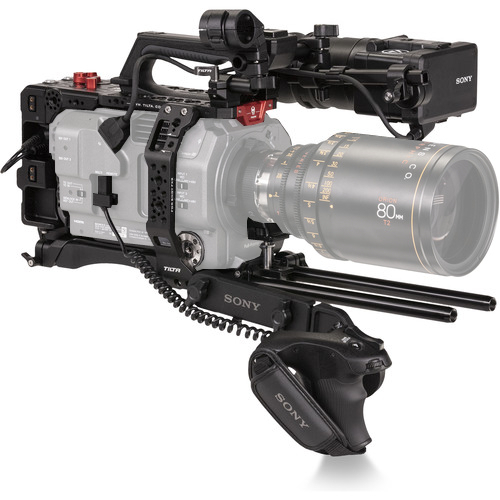

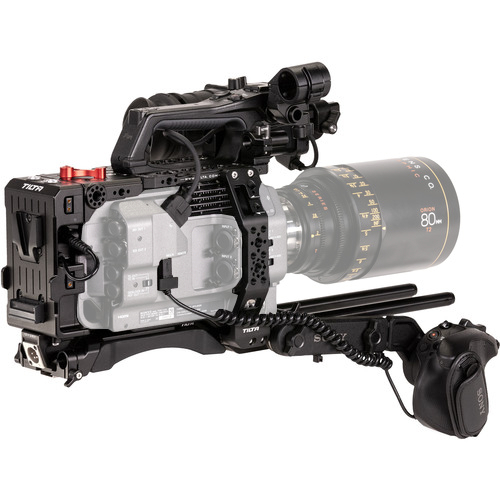

Tilta's V-Mount Camera Cage with Battery Plate for the Sony FX9 is a comprehensive modular system. It comes with a V-mount battery plate distribution box, a VCT-U14 baseplate with a shoulder pad, two 2-pin LEMO and three D-Tap outputs, and an external XLR power input module. Additionally, the cage has a built-in lens adapter support bracket and top, front, and rear 15mm rod ports.

For mounting, the cage features 1/4"-20 and 3/8"-16 accessory and tripod mount threads, 1/4"-20 and 3/8"-16 ARRI-style anti-twist threads, and ARRI-style rosettes for extension arms and handgrips.

V-Mount Battery Plate

The battery plate attaches to the included top plate on the back of your camera and allows you to power the camera and accessories. It provides two 2-pin LEMO and three D-Tap outputs, and comes with an external 4-pin XLR power input module. The battery plate can be adjusted back and forth from the back of the camera via a bracket to help optimally balance the camera on your shoulder.

VCT-U14 Baseplate with Shoulder Pad

The VCT-U14 baseplate features an ergonomic shoulder pad and a 15mm LWS rod mount on the front and back. Two 7.9" rods are included for attaching accessories such as a follow focus. Standard ARRI-style rosettes on the sides of the baseplate allow you to install extension arms or additional handgrips, and an integrated, adjustable lens support on the front provides support for longer, heavier lenses. The baseplate also features a quick release plate on the bottom that provides 1/4"-20 and 3/8"-16 tripod mount threads, and this plate is interchangeable with select other Tilta quick release plates.

Top and Side Plates

The top plate attaches to the top of the camera without interfering with the camera's original top handle. It features a 15mm rod clamp on top for mounting an EVF and accessories to included 1.8" short 15mm rods. The side plate connects the top plate with the baseplate, and both the top and side plates offer multiple 1/4"-20 and 3/8"-16 ARRI-style anti-twist threads to incorporate additional accessories.

TILTA ES-T18

Support Type Baseplate, Cage, Rod Support System, Shoulder Support
Configuration Battery Mounting Plate, Lens Support Bracket

MOUNTING

Rod Standard 15 mm LWS / 60 mm Spacing
Included Rods 2 x 7.9" / 20 cm 15 mm Rod
2 x 1.8" / 4.5 cm 15 mm Rod
Battery Plate Type 1 x V-Mount
Accessory Mounting Side Plate, Side: Multiple x 1/4"-20 Thread, Multiple x 3/8"-16 Thread
Top Plate, Top: Multiple x 1/4"-20 Thread, Multiple x 3/8"-16 Thread
Tripod Mounting Quick Release Plate: 1/4"-20 Thread, 3/8"-16 Thread
Rod Ports Top Plate, Top: 2 x 15 mm Rod Port
Baseplate, Front: 2 x 15 mm Rod Port
Baseplate, Rear: 2 x 15 mm Rod Port
Rosettes Baseplate, Sides: 2 x ARRI Rosette with M6 Thread

GENERAL

Materials Aluminum, Steel



* Specifications subject to change by the manufacturer without notice

  • Tilta Camera Cage with Battery Plate for Sony PXW-FX9 (V-Mount)
  • V-Mount Battery Plate
  • VCT-U14 Baseplate
  • 4-Pin XLR Power Input Module
  • 2 x 15mm Rod (7.9")
  • Multifunctional Extended Side Arm
  • Multifunctional Extended Top Plate
  • EVF 15mm Rod Adapter with Two 1.8" Rods
  • Lightweight Dovetail Plate (10")

Manufacturer Warranty

This product comes with a

12  month Australian warranty

from Tilta Australia
