Key Features:
- 2x Transmitters with Built-In Mic + Lav, 1x Receiver
- SYNCO Wireless LinkLable UHF Band
- Rechargeable 1300mAh Li-ion Battery for 8.5hrs Use
- Quick Charge all Units in 3hrs
- Analyses Frequency for Best Channel
- Operates at 150m Line of Sight & 80m Non-line of Sight
- Blocks out Interference by Bluetooth &WiFi
- Compact antennas that are 180° Foldable
- 2 Channel Recording Mixed or Not
- Adjustable Power Options
- 100Hz High-pass Filter
- 15 Level Gain Control

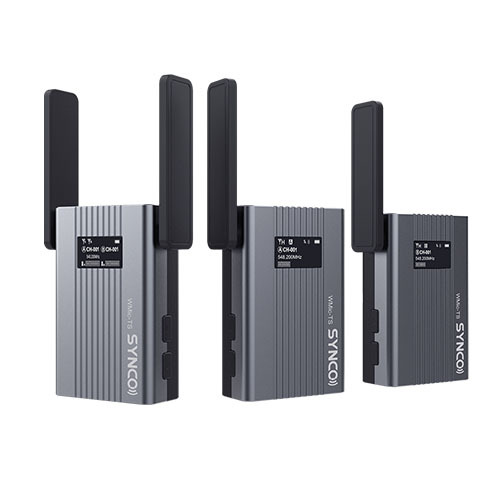

Synco Audio UHF Camera-mount Wireless System - WMic-TS
SKU code: 47440
Australian Owned, Online Since 2001
Local Contact Centre
Industry Experts, Knowledgeable Team
Australia Wide Delivery
From Beginner to Pro, Affordable Gear
Secure Payment Methods
Key Features:
- 2x Transmitters with Built-In Mic + Lav, 1x Receiver
- SYNCO Wireless LinkLable UHF Band
- Rechargeable 1300mAh Li-ion Battery for 8.5hrs Use
- Quick Charge all Units in 3hrs
- Analyses Frequency for Best Channel
- Operates at 150m Line of Sight & 80m Non-line of Sight
- Blocks out Interference by Bluetooth &WiFi
- Compact antennas that are 180° Foldable
- 2 Channel Recording Mixed or Not
- Adjustable Power Options
- 100Hz High-pass Filter
- 15 Level Gain Control
You May Also Like
The Essentials:
Bags, Cases & Straps:
Flashes & Lighting:
Audio Equipment:
Cables & Connectivity:
The Synco UHF Wireless Microphone System, the WMic-TS is the perfect wireless mic system to record dialogue such as interviews. This kit includes 2 transmitters with built in mics and lavs and a receiver unit.
LinkLable UHF band
The SyncoWMic-TS analyses the frequency to pick the cleanest and most suitable channel. Operating on professional UHF Bands the mic has a built-in smart chip which also supports the line-of-sight transmission of 150m and the non-line of sight 80m transmission distances.
Block Noise
The Synco Noise Blocker blocks out interference from electromagnetic radiation by nearby Bluetooth and WiFi signals. This improves the sound pickup and ensures a strong signal and accurate transmission.
Small Powerful Antennas
Compact antennas that are 180° foldable make the units easy to carry around and store.
A microwave integrated circuit ensures long-distance transmission of the signals without distortion.
2 Channel Recording
The Synco TS System supports both mono and stereo output so that you can either record the 2 microphone sources mixed onto left and right tracks, or separately to left and right tracks for more editing control after.
Output Power Options
Output power is selectable between high/low and automatically/manually to alter power for different situations. At high power a higher signal strength is used to overcome interference from conflicting radio signals and to give more power over long distances. The low power mode works at a shorter range and uses less power, therefore saving battery life.
Professional Configuration
The 1300mAh Li-ion battery gives the user 8.5 hours of continuous operation. Full charge is achieved in just 3 hours with the quick charger that charges the receiver and both transmitters simultaneously.
A 100Hz high-pass filter cuts out audio from lower sounds such as traffic and wind. A 15-level gain control offers you the ability to adjust for a range of sound levels from smooth speaking to louder noise.
This professional and simple system has a professional feature set that will enhance any video shooting kit.
Transmitter (TX ) |
|
Channels |
60 |
Group A Wireless Frequency |
525.000MHz~539.750MHz |
Group B Wireless Frequency |
540.000MHz~554.750MHz |
Working Distance |
150m (LOS), 80m (NLOS) |
Latency |
<20ms |
RF Output Power |
15dBm |
Stray Radiation |
<-60dBc |
Input |
Built-in Mic/External Mic |
Low-cut Filter |
100Hz |
Battery |
1300mAh Rechargeable Li-ion Battery |
Working Time |
8.5h |
Charging Time |
3h |
Antenna |
PCB Antenna |
Dimensions |
75.5×64×21.5mm |
Weight |
62g |
Operating Temperature |
-20?~70? |
Storage Temperature |
-20?~70? |
Receiver (RX) |
|
Group A Wireless Frequency |
525.000MHz~539.750MHz |
Group B Wireless Frequency |
540.000MHz~554.750MHz |
Working Distance |
150m (LOS), 80m (NLOS) |
Latency |
<20ms |
Receiving Sensitivity |
-95dBm |
Stray Radiation |
<-60dBc |
Signal/Noise |
88dB |
Audio Output Jack |
1 x 1/8” / 3.5 mm TRS Line Out |
1 x 1/8” / 3.5 mm TRS Headphone Output |
|
Audio Output |
Mono/Stereo |
Volume (Gain) |
15 Levels Adjustable Volume |
Battery |
1300mAh Rechargeable Li-ion Battery |
Working Time |
8.5h |
Charging Time |
3h |
Antenna |
PCB Antenna |
Dimensions |
75.5×64×21.5mm |
Weight |
72g |
Operating Temperature |
-20?~70? |
Storage Temperature |
-20?~70? |
External Lavalier Microphone |
|
Form Factor |
1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable) |
Sound Field |
Mono |
Polar Pattern |
Omnidirectional |
Frequency Response |
20Hz-20KHz |
Sensitivity |
-38dB |
* Specifications subject to change by the manufacturer without notice
- 2 x Bodypack Transmitters (TX)
- Camera-Mount Receiver (RX)
- 2 x Lavalier Microphones
- 2 x Lavalier Foam Windscreens
- 3.5mm TRS Coiled Output Cable for Cameras
- 3.5mm TRRS Output Cable for Smartphones
- 3-in-1 USB Charging Cable
- Carrying Bag
