High-Quality Audio for Content Creators

As high-resolution content becomes more common in the video production industry, the demand for high-quality audio is growing. Content creators today face the challenge of capturing top-notch audio quickly, reliably, and with limited resources.

Offering superb sound quality with digital processing, reliable RF transmission, true double tuner diversity reception and friendly features, the UWP-D series is an ideal partner for ENG (electronic news gathering) and EFP (electronic field production), as well as documentaries and weddings.

Digital audio processing for high-quality sound

Advanced digital audio processing technology by Sony assures high-quality sound with improved transient response performance. A new [optional] digital audio interface enables direct digital sound recording with many Sony professional camcorders and Alpha interchangeable lens cameras via the SMAD-P5 Multi Interface MI shoe adaptor, bypassing A/D and D/A conversion stages to further ensure excellent sound quality.

Fast, easy frequency setting

Sony's uniquely user-friendly NFC SYNC feature allows quick, intuitive secure channel settings between transmitter and receiver.

Light, compact design

Reduced system size and weight enable superior mobility in a wide range of applications including news, documentaries, weddings and remote production. The receiver's compact size and light weight make it an ideal partner for the use of small camcorders and interchangeable-lens digital cameras.

Oscillator Type Crystal-controlled PLL synthesizer
Antenna Type 1/4 λ wavelength wire antenna
Carrier Frequencies 14UC : 470.125 MHz to 541.875 MHz(UHF-TV channels 14 to 25)
25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)
42LA : 638.125 MHz to 697.875 MHz(UHF-TV channels 42 to 51)
90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz
21CE : 470.025 MHz to 542.000 MHz(UHF-TV channels 21 to 29)
33CE : 566.025 MHz to 630.000 MHz(UHF-TV channels 33 to 40)
42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)
38CN : 710.025 MHz to 782.000 MHz(UHF-TV channels 38 to 46)
E : 794.125 MHz to 805.875 MHz
BJ : 806.125 MHz to 809.750 MHz
KR : 925.125 MHz to 937.500 MHz
RF Output Power 30 mW/5 mW selectable (UC, U, CE, LA, CN models)
10 mW/2 mW selectable (J, E, KR models)
Capsule Type Dynamic
Directivity Uni-directional
Reference Audio Input level –55 dBV (GAIN MODE set to NORMAL, 0 dB attenuation)
Maximum Audio Input Level 151 dB SPL (21 dB attenuation, using supplied microphone unit)
Audio Attenuator Adjustment Range 0 dB to 21 dB (3 dB steps)
Frequency Response 70 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
70 Hz to 15 kHz (Typical) (J model)
Signal-to-Noise Ratio 60 dB (–60 dBV, 1 kHz sine wave input)
102 dB (GAIN MODE set to AUTO GAIN, max deviation, A-weighted)
96 dB (GAIN MODE set to NORMAL, max deviation, A-weighted)
Distortion 0.9% or less (–60 dBV, 1 kHz input)
Audio Delay Approx. 0.35 ms
Tone Signal Frequency In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz
Display OLED
Power Requirements DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector)
Battery life Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
  Approx. 10 hours with output power of 10 mW (J, E, KR models)
Operating Temperature 0 °C to 50 °C (32 °F to 122 °F)
Storage/Transport Temperature –20 °C to +55 °C (–4 °F to +131 °F)
Dimensions ø4.8 × 25.8 cm (diameter / length)
Mass Approx. 0.255 kg (excluding batteries)


* Specifications subject to change by the manufacturer without notice

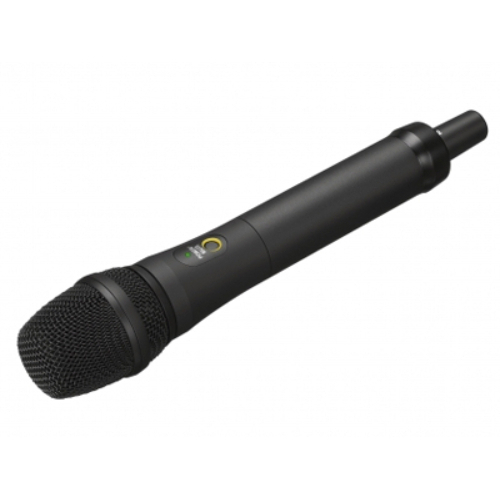

  • Sony UTX-M40 Wireless Handheld Cardioid Microphone Transmitter (CE42: 638 to 694MHz)
  • Allen Wrench
