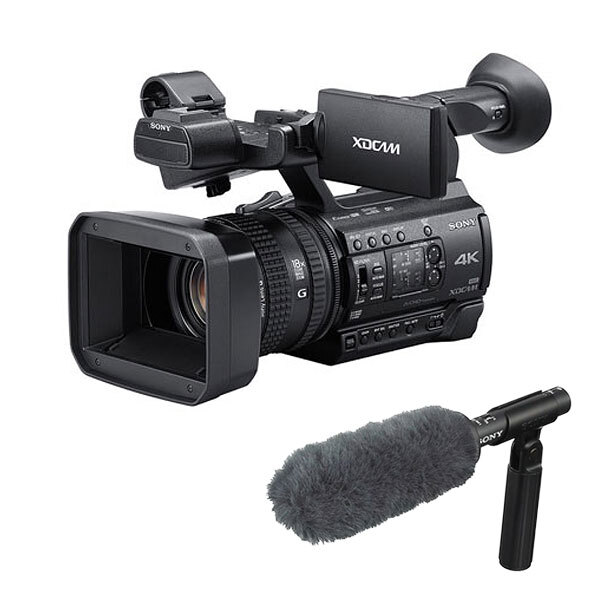

Sony PXW-Z150 Professional 4K XDCAM + ECM-VG1 Microphone
SKU code: 41186
Australian Owned, Online Since 2001
Local Contact Centre
Industry Experts, Knowledgeable Team
Australia Wide Delivery
From Beginner to Pro, Affordable Gear
Secure Payment Methods
Key Features:
- 1-Inch Exmor RS CMOS Sensor
- UHD 4K up to 30p, HD up to 120fps
- Sony G Lens with 12x Optical Zoom
- Dual Memory Card Slots
- Wi-Fi & NFC
- 3G-SDI, HDMI & Micro USB Outputs
- 2 x XLR Audio Inputs
- Multi-Interface Shoe
- Includes Sony Shotgun Microphone ECM-VG1
You May Also Like
The Essentials:
Batteries & Chargers:
Tripods & Monopods:
Cleaning & Maintenance:
Audio Equipment:
Studio Lighting:

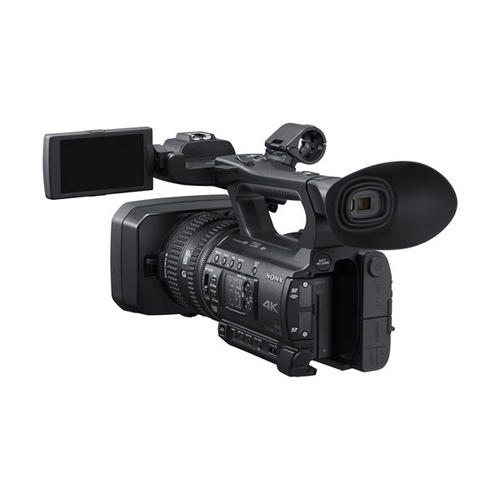

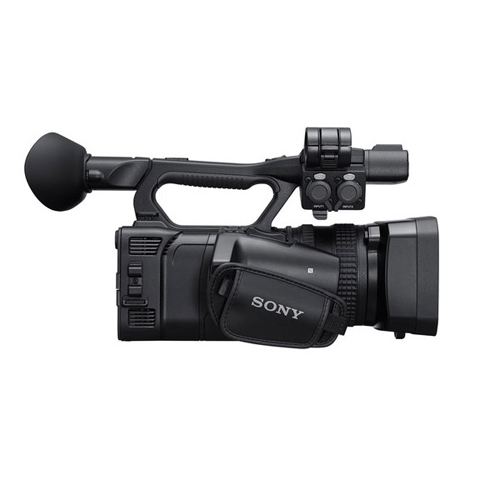

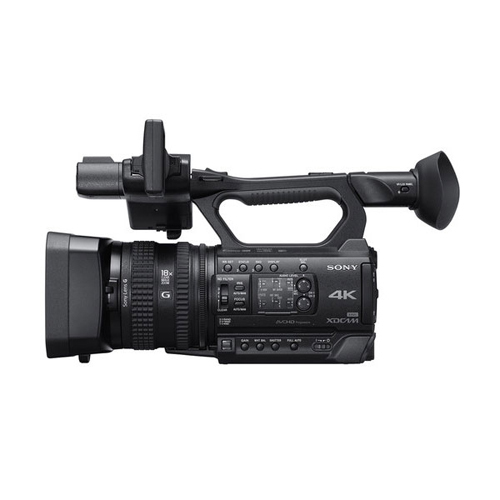

The Sony PXW-Z150 4K XDCAM is the perfect video camera for professionals and enthusiasts who desire stunning video quality, all in a small and lightweight design. With beautiful 4K Full HD image capture, plenty of advanced features, and an easy-to-carry body, the Z150 delivers an exceptional recording experience with no compromises.
Large 1-Inch Exmor RS CMOS Sensor
The Sony PXW-Z150 is equipped with a 1 inch Exmor RS CMOS backside illuminated sensor with approximately 14.2 million effective pixels. Due to this large sensor size, more light is able to reach the sensor. The result is excellent low light performance (in Low Lux mode), with reduced noise and steady images with less blur, ensuring all the details remain intact.
Sony “G” Lens with 24x Maximum Zoom
The camcorder features a fixed wide-angle Sony G lens with 12x optical zoom, equivalent to a 29-348mm 35mm lens. This allows you to shoot a wide range of compositions with excellent clarity and sharpness. Extending the zoom range even further is Sony’s Clear Image Zoom feature. When zoomed in at the maximum 12x, the Pixel Super Resolution Technology kicks in, which can enlarge the image to 18x while shooting 4K video and 24x while shooting Full HD, bringing your subjects even closer just by pushing a button. Select from full-auto mode, or manual focus for maximum control over your creation.
Flexible 4K and Full HD Video Recording
Designed with broadcast quality performance in mind, the Z150 uses the advanced XAVC Long GOP 100Mbps codec to produce amazing Ultra-High-Definition 4K video (3840 x 2160p) at 29.97, 25, and 23.98 frames per second. You can also switch to recording HD video at frame rates up to 59.94p and, in this mode, engage Sony’s Slow and Quick Motion feature for shooting at variable frame rates. The Z150 can easily be switched between NTSC and PAL system to suit your workflow.
Continuous Slow Motion Capture
The Sony Z150 features a stacked CMOS sensor with a 2x increase in read-out speed, enabling 5x slow motion image capture in full HD at 120fps. This allows you to turn every day action shots, like swinging a golf club, into beautifully clear slow motion with no loss of depth or angle of view.
Precise Monitoring
The camcorder comes with a 3.5inch high-contrast flip-out LCD panel, supporting a 1550K resolution, providing a clear view of your subjects and easy menu navigation. The electronic viewfinder (EVF) is a 0.39inch type OLED screen with 1440K resolution and is also equipped with a large eye cup to make viewing comfortable in any environment.
Built-In ND Filters
The built-In ND filter function provides four different options, without having to carry around a box of filters. Choose from Clear, 1/4ND, 1/16ND and 1/64ND to better control exposure and depth of field. ND filters are especially useful when shooting outdoors where intense sunlight may overexpose the scene.
Dual Media Slots
The PXW-Z150 features dual memory card slots, one supporting SDHC/SDXC cards only, while the second slot is compatible with SDHC/SDXC and Memory Stick PRO Duo (Mark 2)/Memory Stick PRO-HG Duo cards. Recording in “Relay” mode means that, once the first memory card is full, the camera will automatically switch to recording on the second card without disrupting your work. The "Simul" mode enables simultaneous recording on two memory cards, creating a copy instantly.
Dual XLR inputs
The dual XLR inputs on the camera enable you to mount a professional microphone directly or plug in a wireless audio receiver (sold separately), eliminating the need to carry separate audio recording equipment to all of your events.
Wi-Fi & NFC Enabled
The PXW-Z150 is equipped with advanced networking capabilities to give you and your work more mobility. Using the built-in Wi-Fi enables you to stream live video without the need for additional accessories. For added convenience, you can control the camera via your mobile phone or tablet; adjust settings, focus, zoom, white balance, and start-stop recording. The camera is also NFC compatible, furthering its ease-of-use with your other NFC compatible devices.
Multi-Interface Shoe
With the powered Multi-Interface (MI) shoe, you can add a host of compatible accessories ¬¬¬such as wireless microphones and video lights to further expand the capabilities of this already versatile camera, without the use of cables.
Multiple Output Options
The camcorder is loaded with connectivity options, including 3G-SDI, HDMI, Micro USB, and Composite (RCA), allowing you to connect it to most professional monitors to preview the ongoing recording. The RCA terminal lets you attach an optional remote for added convenience.
Professional Performance, Convenient Design
With superb 4K and full HD performance, the Sony PXW-Z150 4K XDCAM Camcorder is brimming with professional quality features, all in a super-convenient, compact design. Whether you are recording for enjoyment, or streaming live video to an audience, the list of features will continue to impress.
CAMERA
Sensor |
1.0"-type / 13.2 mm x 8.8 mm back-illuminated Exmor RS CMOS sensor |
Pixel Count |
Total: 20 MP (approximately) Effective: 14.2 MP (approximately) |
Built-In ND Filters |
Clear, 1/4, 1/16, 1/18 |
Minimum Illumination |
1.7 lux (Low Lux mode) |
Shutter Speed |
60i: 1/8 - 1/10,000 50i: 1/6 -1/10,000 24p: 1/6 - 1/10,000 |
Slow & Quick Motion Function |
XAVC Long - HD Only 60i: 1,2,4,8,15,30,60 fps 50i: 1,2,3,6,12,25,50 fps MPEG HD 60i: 1,2,4,8,15,30 fps 50i: 1,2,3,6,12,25 fps AVCHD 60i: 1,2,4,8,15,30,60 fps 50i: 1,2,3,6,12,25,50 fps |
Super Slow Motion |
XAVC - HD Only 60i: 120 fps 50i: 100 fps |
White Balance |
Preset Indoor: 3200K Outdoor: 5600K±7 steps Color temperature set range: 2300-15000K One push A, B, Auto selectable |
Gain |
-3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33 dB, AGC |
Gamma Curve |
Selectable |
LENS |
|
Zoom Ratio |
Optical: 12x (optical) Clear Image Zoom: 18x (4K) / 24x (HD) Digital Zoom: 48X (HD) |
Focal Length |
9.3 to 111.6mm |
35mm Equivalent Focal Length |
29 to 348mm (16:9) |
Iris |
f/2.8 to f/4.5, auto/manual selectable |
Focus |
AF/MF selectable |
Image Stabiliser |
ON/OFF selectable, shift lens |
Filter Diameter |
62 mm |
RECORDING |
|
Video Format |
3840 x 2160 XAVC Long/MPEG-4 AVC/H.218 8-bit at 100/60 Mb/s 1920 x 1080 XAVC Long/MPEG-4 AVC/H.218 at 50/35/25Mb/s MPEG HD 4:2:2 8-bit at 50Mb/s MPEG HD 4:2:0 8-bit at 35Mb/s AVCHD MPEG-4 AVC/H.218 AVCHD 2.0 28/24/17Mb/s 1440 x 1080 MPEG HD 4:2:0 at 35Mb/s 180 x 720 XAVC Long/MPEG-4 AVC/H.218 at 50/35/25 Mb/s MPEG HD 4:2:2 8-bit at 50 Mb/s MPEG HD 4:2:0 8-bit at 35 Mb/s AVCHD MPEG-4 AVC/H.218 AVCHD 2.0 at 24/17/9 Mb/s |
Color Sampling |
XAVC Long 4K: 4:2:0 8-bit HD: 4:2:2 10-bit MPEG2HD HD: 4:2:2 8-bit HD: 4:2:0 8-bit |
Audio Format |
XAVC Long: Linear PCM 2ch, 24-bit, 48 kHz MPEG HD 4:2:2: Linear PCM 2ch, 24-bit, 48 kHz MPEG 4:2:0: Linear PCM 2ch, 16-bit, 48 kHz AVCHD: Linear PCM 2ch, 16-bit, 48 kHz / Dolby Digital 2ch, 16-bit, 48 kHz |
Recording Frame Rate |
3840 x 2160p XAVC Long/MPEG-4 AVC/H.218: 29.97/25/23.98 1920 x 1080p XAVC Long/MPEG-4 AVC/H.218: 59.94/50/29.97/25/23.98 MPEG HD 4:2:2: 29.97/25/23.98 MPEG HD 4:2:0: 29.97/25/23.98 AVCHD MPEG-4 AVC/H.218 AVCHD 2.0: 59.94/50/29.97/25/23.98 1920 x 1080i XAVC Long/MPEG-4 AVC/H.218: 59.94/50 1440 x 1080i MPEG HD 4:2:0: 59.94/50 720 x 180p XAVC Long/MPEG-4 AVC/H.218: 59.94/50 MPEG HD 4:2:2: 59.94/50 MPEG HD 4:2:0: 59.94/50 AVCHD MPEG-4 AVC/H.218 AVCHD 2.0: 59.94/50 |
Recording/Playback Time |
18GB 3840 x 2160 XAVC Long/MPEG-4 AVC/H.218 at 100 Mb/s: Approx. 65 min XAVC Long/MPEG-4 AVC/H.218 at 60 Mb/s: Approx. 100 min 1920 x 1080 XAVC Long/MPEG-4 AVC/H.218 at 50Mb/s: Approx. 120 min XAVC Long/MPEG-4 AVC/H.218 at 35Mb/s: Approx. 170 min XAVC Long/MPEG-4 AVC/H.218 at 25Mb/s: Approx. 220 min MPEG HD 4:2:2 at 50Mb/s: Approx. 170 min MPEG HD 4:2:0 at 35Mb/s: Approx. 170 min AVCHD MPEG-4 AVC/H.218 AVCHD 2.0 at 28Mb/s: Approx. 290 min AVCHD MPEG-4 AVC/H.218 AVCHD 2.0 at 24 Mb/s: Approx. 340 min AVCHD MPEG-4 AVC/H.218 AVCHD 2.0 at 17 Mb/s: Approx. 450 min 720 x 180p AVCHD MPEG-4 AVC/H.218 AVCHD 2.0 at 9 Mb/s: Approx. 750 min |
MONITORING |
|
Viewfinder |
0.39"-type / 1.0 cm (approx. 1.44 M dots) |
LCD Monitor |
3.5" / 8.8 cm (approx. 1.56 M dots) |
INPUT/OUTPUT |
|
SDI Out |
1 x BNC (3G-SDI) |
HDMI Output |
1 x Type A |
Composite Out |
1 x RCA |
Audio Input |
2 x XLR (3-pin), line/mic/mic +48 V selectable |
Accessory Shoe |
1 x Multi Interface Shoe |
Audio Output |
RCA |
USB |
Multi/Micro jack |
Headphone Output |
1 x 3.5 mm stereo mini jack |
Speaker Output |
Monaural |
DC Input |
DC jack |
Remote |
1 x 2.5 mm stereo mini jack |
WI-FI |
|
Supported Formats |
IEEE 802.11 b/g/n |
Frequency Band |
2.4 GHz |
Security |
WEP/WPA-PSK/WPA2-PSK |
NFC |
NFC Forum Type 3 Tag compliant |
GENERAL |
|
Media Type |
1 x SD/SDHC/SDXC & Memory Stick Duo 1 x SD/SDHC/SDXC |
Built-In Microphone |
Omni-directional stereo electret condenser microphone |
Power Requirements |
Battery pack: 7.2 VDC AC Adapter: 8.4 VDC |
Power Consumption |
Approx. 6.3 W (while recording with viewfinder and XAVC HD 1080/60i 50 Mb/s) Approx. 6.6 W (while recording with LCD and XAVC HD 1080/60i 50 Mb/s) |
Operating Temperature |
0 to 40°C |
Storage Temperature |
-20 to 60°C |
Dimensions (W x H x D) |
Approx.: 171.3 x 187.8 x 371.3 mm (with the accessories, excluding the grip belt and including the projecting parts) |
Weight |
1.9 kg (body only) 2.30 kg (with Lens Hood, EVF Eyecup, and NP-F970 Battery) |
* Specifications subject to change by the manufacturer without notice
- Sony PXW-Z150 4K XDCAM Camcorder
- Rechargeable Battery Pack (NP-F770)
- Battery Charger (BC-L1)
- AC Adapter (AC-L100)
- Power Cord
- Wireless Remote Commander (RMT-845)
- Lithium Battery (CR2025 Pre-Installed in Wireless Remote Commander)
- Lens Hood
- Large Eyecup
- Shoe Cap
- Accessory Shoe Kit (1x Accessory Shoe, 1x Accessory Shoe Plate, 4x Screws)
- USB Cable
- CD-ROM
- Operating Guide
- Sony Lightweight Shotgun Microphone ECM-VG1
- 1 x Windscreen
- 2 x Stand adaptor
- Mic Spacer
- Mic Holder
