Capture Professional Quality Video

This compact camcorder is packed with features to produce professional quality 4K or Full-HD images. With a big 1.0-type sensor and improved colour reproduction, you'll be able to capture stunning visuals. Plus, you'll have access to refined manual controls, including three independent manual lens rings, smart fully auto options and more.

Superb image quality

It features a large, 20 megapixels 1.0 type sensor that delivers stunning image quality in 4K (3840×2160) or Full-HD at 50Mbps. Its 1.0 sensor is brighter, has higher resolution and offers more bokeh with a shallow depth of field.

Well-balanced colour reproduction

NX200's newly developed gamma curve provides a vibrant look ready to share as soon as you export. It's perfect for capturing live events such as seminars, weddings, and houses of worship. Regardless of exposure settings, it captures natural skin colours and rich mid-range colours.

The professional's choice

Advanced manual controls, including three independent manual lens rings, built-in 4-step ND filters, and class-leading 4K and Full-HD performance make NX200 a choice you can rely upon for live events, corporate, education and wedding videography.

Stunning quality from a large 1.0 type sensor

The Exmor R CMOS sensor is approximately the same size as a 16mm film frame and seven times larger than three 1/4.7 type sensors combined. The key benefit of this large size is low noise and less blur because more light reaches the sensor, offering clear and steady pictures even in a dark scene with a minimum illumination. The large sensor size also enables beautiful background defocusing (bokeh) to enable you to focus on what you want to show and defocus the rest of the image.

Professional handy design

The HXR-NX200 is ergonomically designed to provide a lightweight and easy-to-use shooting experience. Three manual, independent lens rings enable smooth, natural adjustment of focusing, zooming and iris control. It can also be used in full-auto mode or completely manual for maximum creative control.

Built-in ND Filters

A built-in Neutral Density (ND) filter wheel includes positions for clear, 1/4 (2 stops), 1/16 (4 stops), and 1/64 (6 stops). This makes it easier to get all the advantages of shallow depth of field even in exterior day shoots, with no need to worry about bringing along and fitting a separate filter.

Multi-format recording with 100Mbps XAVC S 4K, HD and DV

XAVC S offers stunning picture quality, but also workflow flexibility and storage efficiency. Compared to AVCHD, XAVC S captures more details and less noise thanks to the higher bitrate, while also being supported by all the major non-linear editors. NX200 also offers the option to record HD in AVCHD or DV, making it easy to integrate your content into existing workflows. NX200 offers PAL-only recording frame rates of 25p 4K:QFHD 3840×2160 50p, 50i, 25p Full HD and 50i SD.

Dual media slots for recording flexibility

To extend recording time and workflow flexibility, the NX200 is equipped with two memory card slots and is compatible with SDXC and SDHC cards.

Mass Approx 1.80 kg (body)
Approx. 1.36 kg (body)
Approx. 2.10 kg (with lens hood, eyecup, NP-F570 battery)
Approx. 1.81 kg (with lens hood, eyecup, NP-F570 battery)
Dimensions (W x H x D)*1 17.13 × 18.78 × 37.13 cm (With the accessories (lens hood, large eyecup), excluding the grip belt and including the projecting parts)
6 3/4 x 7 1/2 x 14 5/8 inches (With the accessories (lens hood, large eyecup), excluding the grip belt and including the projecting parts)
Power Requirements DC In: 8.4V Battery: 7.2 V Power Consumption Approx. 5.7 W (while recording with viewfinder and AVCHD 1080/60i FX) Approx. 5.9 W (while recording with LCD and AVCHD 1080/60i FX)
Operating Temperature 0°C to 40°C 32°F to 104°F
Storage Temperature -20°C to +60°C -4°F to +140°F
Battery Operating Time Approx. 150 min. with NP-F570 battery (while recording with LCD, AVCHD 1080/50i FX) Approx. 240 min. with NP-F570 battery (while playing with LCD, AVCHD 1080/50i FX)
Recording Format (Video) XAVC S?MPEG4-AVC/H264 4:2:0 Long profile AVCHD : MPEG-4 AVC/H.264 AVCHD 2.0 format compatible DV
Recording Format (Audio) XAVC S 4K : Linear PCM 2ch, 16bit, 48kHz XAVC S HD : Linear PCM 2ch, 16bit, 48kHz AVCHD : Linear PCM 2ch, 16-bit, 48 kHz / Dolby Digital 2ch, 16-bit, 48 kHz DV : Linear PCM 2ch, 16-bit, 48 kHz
Recording Frame Rate XAVC S 4K (3840 x 2160)@25p, 100Mbps/60Mbps XAVC S HD (1920 x 1080)@50p, 25p, 50 Mbps AVCHD (1920 x 1080)@50p, PS mode (28 Mbps) AVCHD (1920 x 1080) @50i/25p, FX mode (24 Mbps) FH mode(17 Mbps) AVCHD (1440 x 1080)@50i, HQ mode (9 Mbps) LP mode (5 Mbps) AVCHD (1280 x 720)@50p, FX mode (24 Mbps) FH mode (17 Mbps) HQ mode ( 9 Mbps) DV (720 x 576) @50i, 25 Mbps
Recording/Playback Time XAVC S 4K@LPCM 2ch 100 Mbps Approx. 75 min with 64 GB memory card XAVC S 4K@LPCM 2ch 60 Mbps Approx. 125 min with 64 GB memory card XAVC S HD@LPCM 2ch 50 Mbps Approx. 155 min with 64 GB memory card AVCHD@LPCM 2ch PS Mode Approx. 290 min with 64 GB memory card Approx. 145 min with 32 GB memory card AVCHD@LPCM 2ch FX Mode Approx. 340 min with 64 GB memory card Approx. 170 min with 32 GB memory card AVCHD@LPCM 2ch FH Mode Approx. 450 min with 64 GB memory card Approx. 225 min with 32 GB memory card DV Approx. 280 min with 64 GB memory card Approx. 140 min with 32 GB memory card
XAVC S 4K@LPCM 2ch 100 Mbps Approx. 75 min with 64 GB memory card XAVC S 4K@LPCM 2ch 60 Mbps Approx. 125 min with 64 GB memory card XAVC S HD@LPCM 2ch 50 Mbps Approx. 155 min with 64 GB memory card AVCHD@LPCM 2ch PS Mode Approx. 290 min with 64 GB memory card Approx. 145 min with 32 GB memory card AVCHD@LPCM 2ch FX Mode Approx. 340 min with 64 GB memory card Approx. 170 min with 32 GB memory card AVCHD@LPCM 2ch FH Mode Approx. 450 min with 64 GB memory card Approx. 225 min with 32 GB memory card DV Approx. 280 min with 64 GB memory card Approx. 140 min with 32 GB memory card
Lens Mount Fixed
Zoom Ratio  12x (optical), servo
Focal Length  f = 9.3 – 111.6 mmequivalent to f = 29.0 – 348.0 mm on 35 mm lens (16:9) equivalent to f = 35.5 – 426.0 mm on 35 mm lens (4:3)
Iris   F2.8 – F11 auto/manual selectable Focus AF/MF selectable, 10 mm to ∞ (Wide), 1000 mm to ∞ (Tele)
Image Stabilizer  ON/OFF selectable, shift lens
Filter Diameter  M62 mm

CAMERA SECTION

Imaging Device (Type)  1.0-type (13.2 mm x 8.8 mm) back-illuminated Exmor R CMOS sensor
Effective Picture Elements  Approx. 14.2 M pixels (16:9)/Approx. 10.6 M pixels (4:3)
Built-in Optical Filters  OFF: Clear, 1: 1/4ND, 2: 1/16ND, 3: 1/64ND
Minimum Illumination  [50i] 1.7 lux (LOW LUX mode)
Shutter Speed  [50i]: 1/6 -1/10,000
Slow & Quick Motion Function  [50i]: 1080p: Frame rate selectable 1.2.3.6.12.25,50 fps
White Balance  Preset (Indoor: 3200K, Outdoor: 5600K±7 steps, colour temparature set range: 2300-15000K), Onepush A, B, Auto selectable
Gain  -3, 0, 3, 6, 9, 12,15, 18, 21, 24, 27, 30, 33 dB, AGC
Gamma Curve  Selectable



* Specifications subject to change by the manufacturer without notice

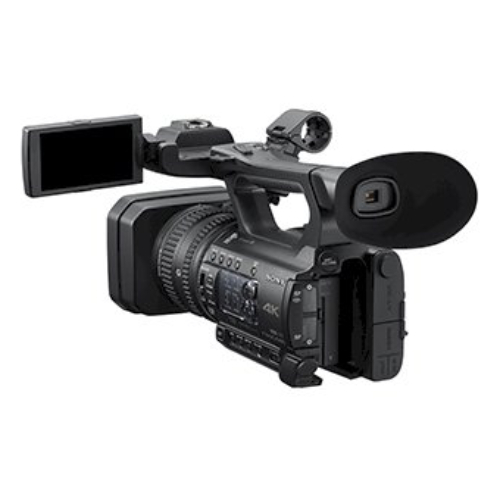

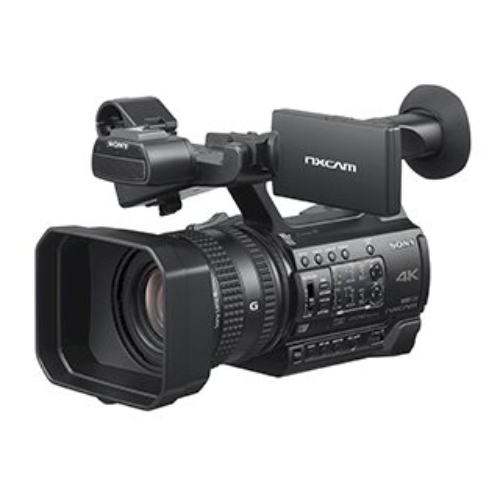

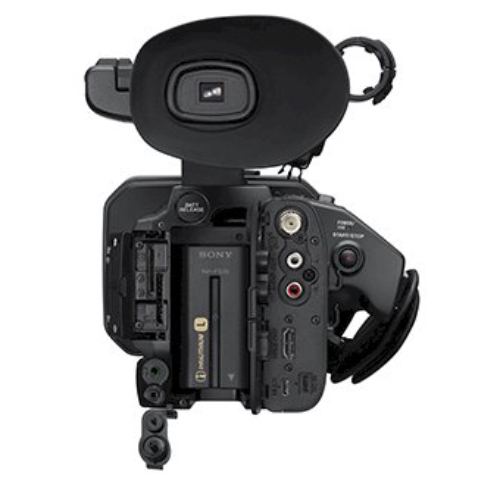

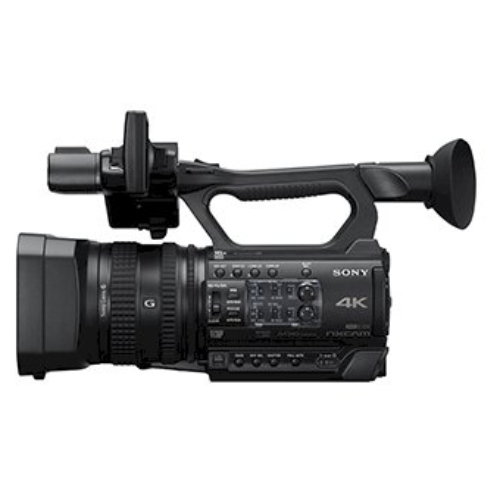

  • Sony HXR-NX200 NXCAM 4K Professional Camcorder
