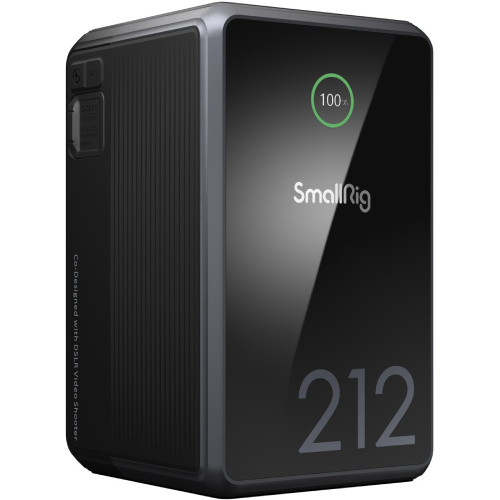

SmallRig x Caleb Pike VB212 mini V Mount Battery 4293

The SmallRig x Caleb Pike VB212 Mini V Mount Battery 4293 adopts a highly integrated design that reduces size, making it more portable without sacrificing power. Featuring advanced fast-charging protocol chips, MCU, voltage control, and BMS chips, it supports a wide range of fast charging protocols (PD 3.1 / QC 3.0 / AFC), and allows for two-way PD fast charging and discharging with a maximum of 140W. The intelligent BMS system ensures safer charging with protections against overcurrent, short circuit, overtemperature, and overvoltage. This battery comes equipped with D-Tap, USB-C, USB-A, DC 8V-OUT, DC12V-OUT, and BP interfaces, enabling direct powering of cameras, video cameras, monitors, lights, phones, laptops, and more-no V-mount plates required. The built-in 16-bit Smart ADC, combined with the MCU and a TFT display, keeps you informed of the battery status in real time. The premium battery cells offer excellent performance, with cyclic charging and discharging for long-lasting stability. Compliant with international standards like MSDS, UN38.3, IEC62133, and UL2054, this battery is built for safety. The robust aluminium alloy body with silicone coating provides drop-proof protection, while TPU and PC V0 materials make it heat-resistant and fire-retardant. A scratch-resistant PC and acrylic cover safeguard the display. The battery's design ensures easy interaction with the dust cover, and it delivers reliable power for your gear, allowing you to capture every moment with confidence.

Button function:

1. Click to check the battery level, and click again to turn off the screen.

2. Double-click to switch the display port voltage and power.

3. Click four times to turn on/off low current mode.

4. Press and hold for 10 seconds to force restart.

Product Dimensions 13.21 x 8.27 x 7.93cm
Product Weight (Including Charging Cable) 1.345kg
Material(s) Aluminium Alloy, Silicone, TPU, PC V0
Capacity 14.76V 14.4Ah 212.544Wh

RATED POWER

Output 212W
Input 140W

INPUT

USB-C1 / USB-C2 140W (Max.)
D-Tap1 8A (Max.)
BP 10A (Max.)

OUTPUT

USB-C1 / USB-C2 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 5A, 28V / 5A (Max.)
USB-A 5V / 3A, 9V / 3A, 12V / 2.5A (Max.)
BP 14.76V / 19A (Max.)
D-Tap1 14.76V / 10A (Max.)
D-Tap2 14.76V / 6A (Max.)
8V-OUT 8V / 3A (Max.)
12V-OUT 12V / 3A (Max.)

CHARGING PROTOCOL

USB-C1 / USB-C2 PD3.1 / QC2.0 / QC3.0 / PPS / AFC / DCP-1.5A / APPLE-2.4A
USB-A QC2.0 / QC3.0 / AFC/ DCP-1.5A / APPLE-2.4A
Cutoff Voltage 11.2V
Operating Temperature -15°C~60? / 5°F~140°F
Charging Temperature 0°C~50°C / 32°F~122°F
Optional Charging Method BP port charger, 16.8V D-Tap charger, USB-C


* Specifications subject to change by the manufacturer without notice.

  • SmallRig x Caleb Pike VB212 mini V Mount Battery 4293
  • 240W USB-C Charging Cable
