SmallRig x Brandon Li All-in-One Mobile Video Kit Full Quick Release Co-design Edition 4596

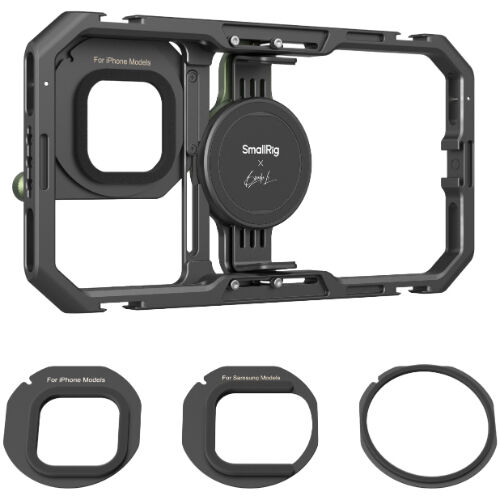

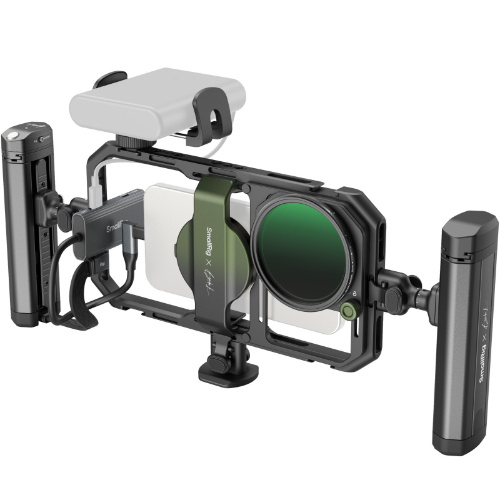

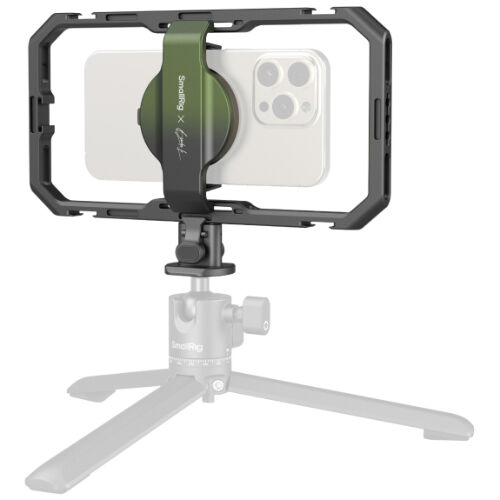

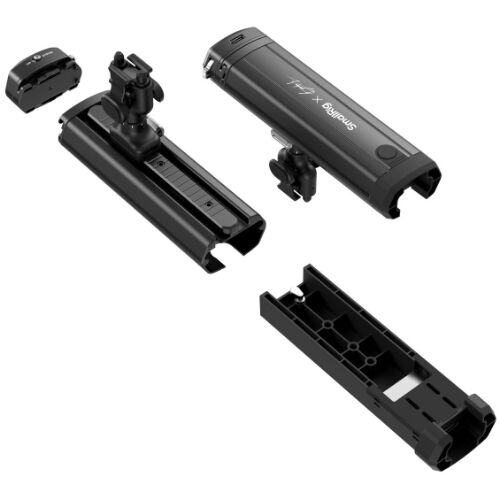

The SmallRig x Brandon Li All-in-One Mobile Video Kit Full Quick Release Co-design Edition 4596 is a comprehensive solution for professional smartphone video shooting. This kit includes a universal mobile phone cage, a rotatable side handle with an M.2 SSD enclosure and wireless remote control, a 67mm universal filter adapter, a magnetic 67mm VND 2-32 (1-5 Stop), a 4-in-1 USB-C docking station, an Arca-Swiss quick-release adapter, a power bank holder, and various accessories. The universal cage supports 67mm magnetic filters to reduce glare and light leakage for most mobile phones. The rotatable side handle integrates a wireless control for remote shooting, focusing, and zooming, along with an M.2 SSD enclosure for external recording. The handle adapter features stepless rotation, allowing seamless switching between side and top handle modes, with quick-release mechanisms for easy assembly and adjustments. Additionally, the Arca-Swiss quick-release adapter ensures fast attachment to tripods, and the cage provides multiple 1/4"-20 threaded holes and cold shoe mounts for versatile accessory combinations. The 4-in-1 USB-C docking station supports PD 100W charging, ProRes video storing, and USB-C microphone use, enabling efficient workflow for mobile videography.

Work With

1. The cage is compatible with mobile phones ranging from 5.7cm to 8.5cm in width, allowing for use with phone cases.

2. When magnetically connecting a mobile phone, it is recommended to use it with a mobile phone case featuring MagSafe to enhance the magnetic attraction.

3. It is not recommended to use magnetic attraction in intense sports scenarios.

4. When using the 67mm filter system, the phone can't be connected to the cage via MagSafe.

5. The power bank holder is compatible with power banks ranging from 5.3cm to 8.1cm in width.

6. Wireless remote controller: Android System, Harmony System; iOS model iPhone 12-iPhone 15 full series, iPhone 16 Pro; when adapting to the iPhone 16 Pro Max, it needs to adjust the Mouse Key's Maximum Speed to Variable 7.

PRODUCT DIMENSIONS

Cage  23.6 x 12.2 x 3.1cm
Handle 14.8 x 8.1 x 4.2cm
Product Weight  1.156 ± 0.050kg
Material  Aluminium Alloy, Plastic, Silicone, Magnet, Copper

M.2 SSD ENCLOSURE

Operating Protocol  NVMe V1.3
Built-in Interface  M.2 M-Key
USB Protocol  USB 3.1-C
Standby Power Consumption  0.38W
Compatible M.2 SSD  2230, 2242, 2260, 2280
Transfer Rates  SuperSpeed (10Gbps) / Hi-Speed (5Gbps) / Full-Speed (480Mbps) / Low-Speed (12Mbps)
Indicator Light Status  Blue LED Light:  Always on (power on / sleep / safe ejection); flashes (read/write data)

WIRELESS REMOTE CONTROLLER

Operating Power Consumption  ≤3mW
Standby Power Consumption  ≤0.04mW
Battery  145mAh
Voltage  3.7V
Current  2mA
Operating Temperature  -30° to 60°
Wireless Control Distance  10.0m
Wireless Frequency  2.4G Hz

4-IN-1 DOCK STATION

Standby Power Consumption  ≤0.2W
USB-C Ports  PD Charging / USB-C 3.1 / USB-C 2.0 x 2, Mobile Input
PD Charging  20V, 5A
USB-C 3.1  5V,3A,USB-C 3.1 10Gbps, ≥750MB/s,USB-C 3.0 5Gbps, ≥350MB/s
USB-C 2.0  5V, 2A,480Mbps, ≥35MB/s
Operating Temperature  -20° to 50°


* Specifications subject to change by the manufacturer without notice.

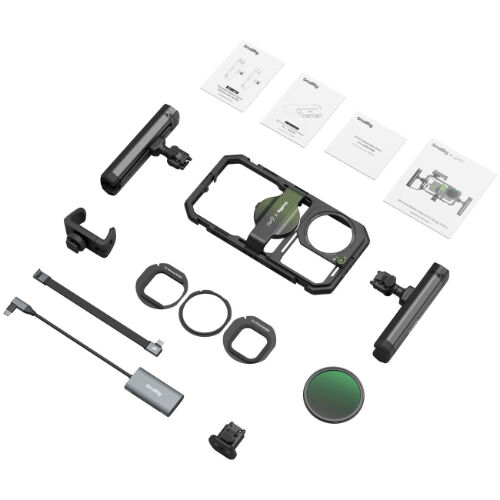

  • SmallRig x Brandon Li All-in-One Mobile Video Kit Full Quick Release Co-design Edition 4596
  • Universal Phone Cage
  • 67mm Magnetic Filter Adapter
  • 67mm VND 2-32 (1-5 Stop)
  • Rotatable Bilateral Side Handle with M.2 SSD Enclosure and Wireless Control
  • Rotatable Bilateral Side Handle
  • 4-in-1 Dock Station (USB-C PD / USB-C 3.1 / USB-C 2.0)
  • Arca-Swiss Quick Release Adapter
  • Power Bank Holder
  • Multifunctional Data Cable
  • Velcro Ties
  • User Manual
  • Photography Bag
