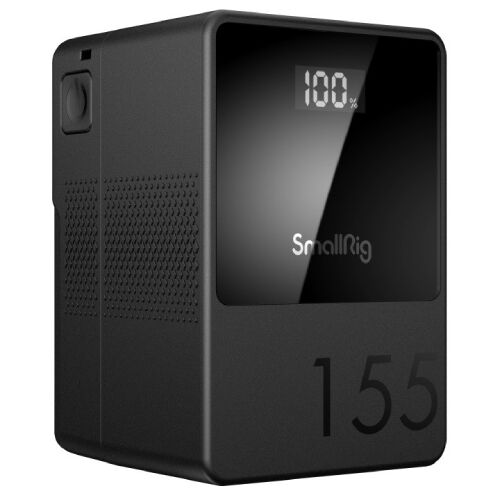

SmallRig VB155 mini V Mount Battery 3581

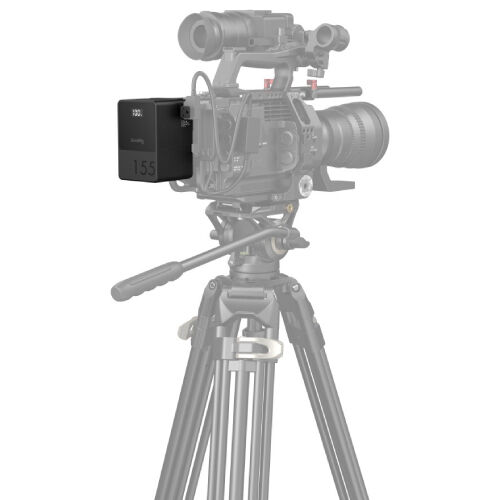

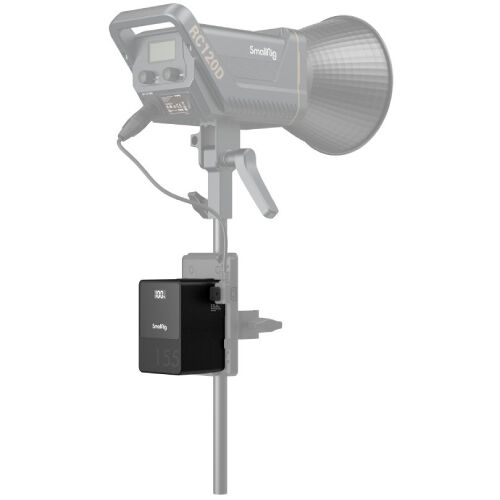

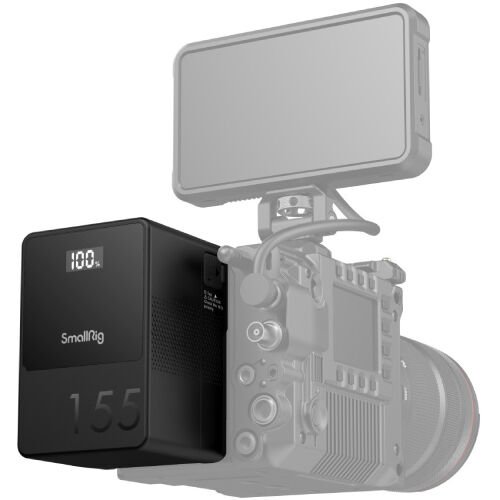

The SmallRig VB155 Mini V Mount Battery 3581 is a lightweight, compact solution that delivers reliable power for your camera gear. At about 70% the size of a standard V-mount battery, its highly integrated design offers portability without sacrificing performance. Featuring a fast-charging protocol chip, MCU, and BMS chip, the battery supports a variety of fast-charging protocols, including PD, QC, SCP, PPS, and APPLE-2.4A, offering bi-directional 65W USB-C PD fast charging. The adaptive voltage boost and current regulation provide optimal power management. Equipped with USB-A, USB-C, D-Tap, DC 8V, DC 12V, and V-Mount interfaces, it can power cameras, camcorders, monitors, wireless video transmitters, video lights, and more without the need for a V-mount plate. The 16-bit ADC, power meter algorithm, MCU, and OLED digital display allow you to track battery status in real-time. The built-in high-performance battery is stable, rechargeable, and meets internationally recognised standards such as MSDS, UN38.3, IEC62133, UL2054, and UL62368. This reliable battery ensures you're always ready to capture every moment without the added bulk.

Items
 Parameters
Material Fireproof PC
Capacity 14.8V 10.5Ah 155Wh
Rated Power Discharge: 155W Charge: 65W
VMount/ D-TAP Input 16.8V/ 8A
VMount/ D-TAP Output 14.8V/ 14A(MAX)
USB-A Output QC2.0/ AFC/FCP: 5V/3A, 9V/3A, 12V/2A
QC2.0/QC3.0/AFC/FCP/SCP QC3.0: 4.2-9V/3A, 9-12V/2A
/DCP-1.5A/APPLE-2.4A SCP: 4.5V/5A, 5V/4.5A
  DCP-1.5A: 5V/1.5A
  APPLE-2.4A: 5V/2.4A
USB-C Input/Output PD3.0: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A
  QC2.0/AFC/FCP: 5V/3A, 9V/3A, 12V/2A
Input 65W (Max) QC3.0: 4.2-9V/2A, 9-12V/2A
Output 65W (Max) SCP: 4.5V/5A, 5V/4.5A
PD3.0/QC2.0/QC3.0/PPS DCP-1.5A: 5V/1.5A
/AFC/FCP/SCP/DCP-1.5A/ PPS: 3.3-21V/3A
APPLE-2.4A APPLE-2.4A: 5V/2.4A
DC1 Output 8V/Max3A
DC2 Output 12V/Max3A
Cutoff Voltage 11V
Optional Charging Method 16.8V D-TAP charger, USB-C charger such as GaN charger with PD fast charging tech (up to 65W)
Product Dimensions 10.7 × 7.3 × 7.1 cm
Net Weight 0.770 kg ± 0.01 kg


* Specifications subject to change by the manufacturer without notice.

  • SmallRig VB155 mini V Mount Battery 3581
  • User Manual
