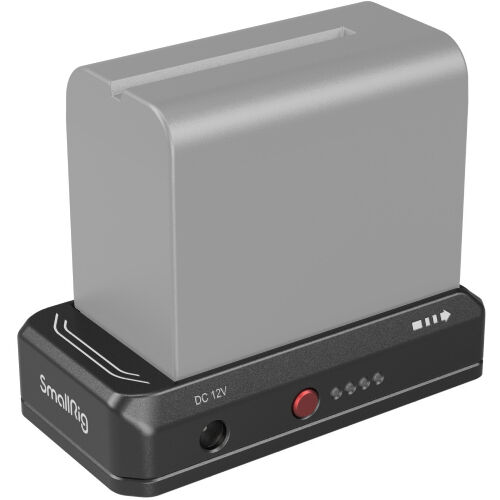

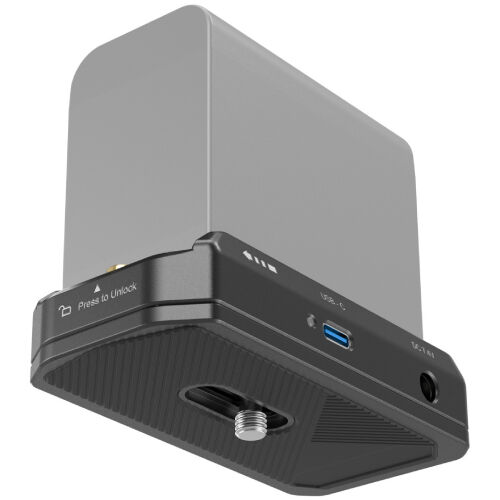

SmallRig NP-F Battery Adapter Mount Plate Kit with NP-FZ100 Dummy Battery Power Cable (Advanced Edition) 4341

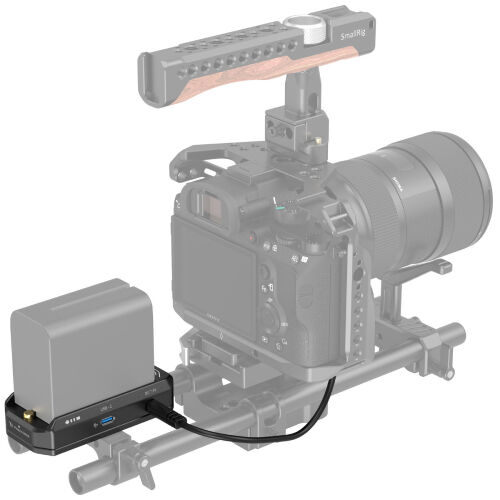

The SmallRig NP-F Battery Adapter Mount Plate Kit (Advanced Edition) 4341 is designed to power Sony FX3, FX30, α7CR, α7C II, α7 IV, ZV-E1, and other mirrorless cameras using NP-F batteries (including Sony and third-party brands). The aluminium alloy plate features gold-plated electrical contacts for enhanced durability and conductivity. It includes a self-locking button for quick and secure battery installation and a 1/4"-20 threaded hole for easy attachment to the cage. The plate offers 36W 7.4V/12V DC outputs and a 36W USB-C port for charging or current output. Ports include short circuit protection and automatic wake-up/sleep functions, while LED indicators display USB charging, battery connection, and battery life.

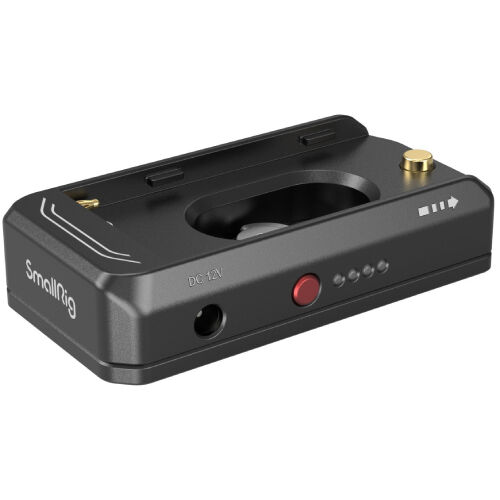

NP-F Battery Adapter Mount Plate Button/Indicator Function Display:

Power Display Button: Touch to check the battery level

Working Indicator Light

USB-C port charging and discharging indicator light: Orange - slow charge/slow discharge, ice blue light - fast charge/fast discharge

Battery Indicator: Four LEDs, one light flashes when below 10%, one light on when 10%-25%, two lights on when 25%-50%, three lights on when 50%-75%, four lights on when 75%-100%

Product Dimensions 9.4 x 4.7 x 2.3 cm (3168B)105 x 3.87 x 2.27 cm (DC5521 to NP-FZ100 Dummy Battery Power Cable)
Product Weight 0.156 kg
Material(s) CNC+ABS


* Specifications subject to change by the manufacturer without notice.

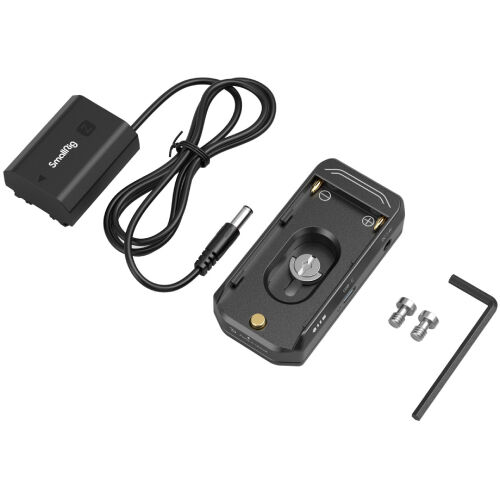

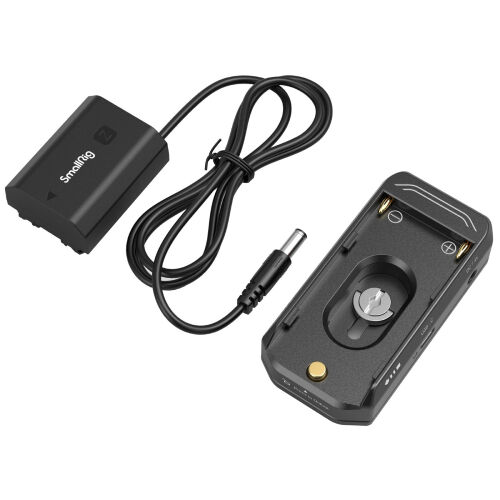

  • SmallRig NP-F Battery Adapter Mount Plate Kit with NP-FZ100 Dummy Battery Power Cable (Advanced Edition) 4341
  • 1/4"-20 Screw
  • Allen Wrench
  • User Manual
