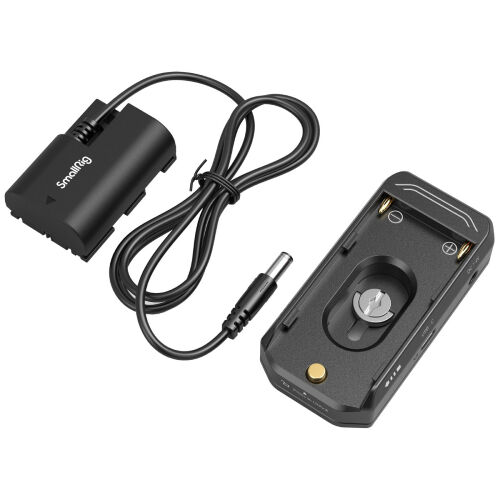

SmallRig NP-F Battery Adapter Mount Plate Kit for Canon EOS R5 / R5C and BMPCC 4K / 6K (Advanced Edition) 4340

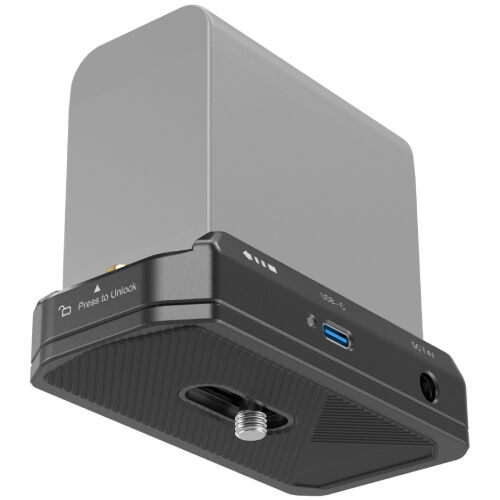

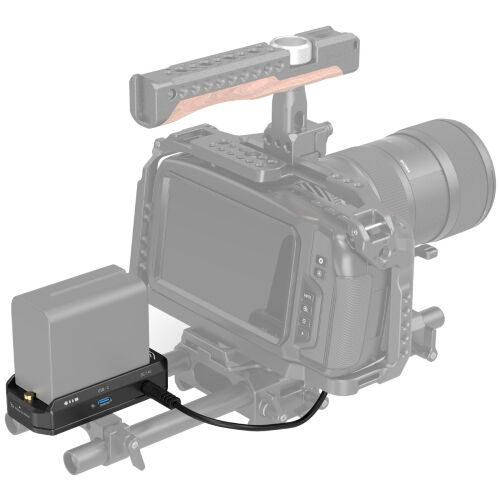

The SmallRig NP-F Battery Adapter Mount Plate Kit (Advanced Edition) 4340 is designed to provide long-lasting power for BMPCC 4K/6K, Canon R5C, and various mirrorless cameras using NP-F batteries, including both original Sony and third-party options. The aluminium alloy plate features gold-plated electrical contacts for durability and conductivity. It includes a self-locking button for quick battery installation and a 1/4"-20 threaded hole for easy attachment to the camera cage. The plate offers 36W 7.4V/12V DC outputs and a 36W USB-C port for charging or current output. With built-in short circuit protection, automatic wake-up/sleep functions, and LED indicators for battery status, this kit ensures reliable, safe, and efficient power management.

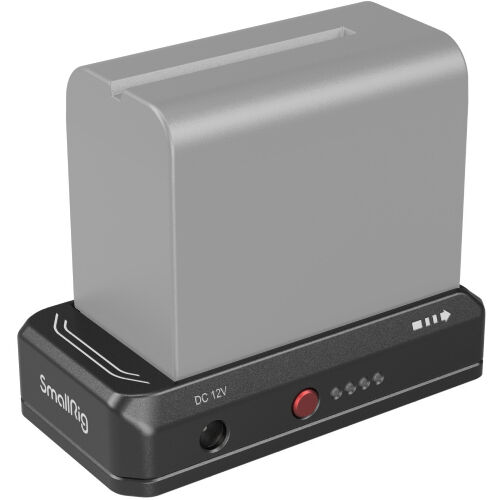

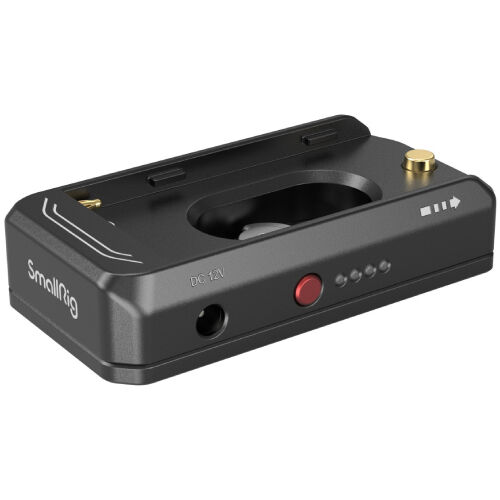

NP-F Battery Adapter Mount Button/Indicator Function Display:

Power Display Button: Touch to check the battery level

Working Indicator Light:

USB-C port charging and discharging indicator light: Orange - slow charge/slow discharge, ice blue light - fast charge/fast discharge

Battery Indicator: Four LEDs, one light flashes when below 10%, one light on when 10%-25%, two lights on when 25%-50%, three lights on when 50%-75%, four lights on when 75%-100%

Product Dimensions 9.4 x 4.7 x 2.3 cm (3168B) 105 x 3.84 x 2.1 cm (DC5521 to LP-E6NH Dummy Battery Power Cable)
Product Weight 0.150 kg
Material(s) CNC+ABS


* Specifications subject to change by the manufacturer without notice.

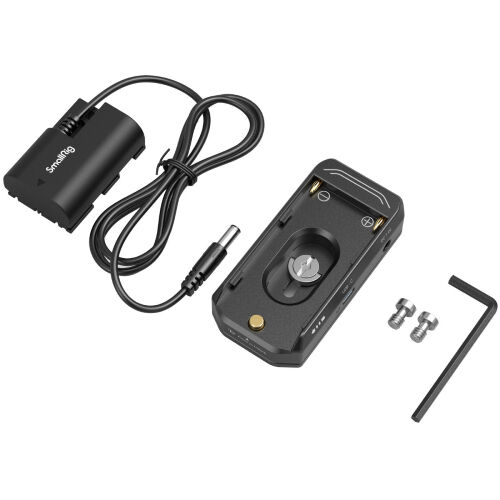

  • SmallRig NP-F Battery Adapter Mount Plate Kit for Canon EOS R5 / R5C and BMPCC 4K / 6K (Advanced Edition) 4340
  • 1/4"-20 Screw
  • Allen Wrench
  • User Manual

Manufacturer Warranty

This product comes with a

12  month Australian warranty
