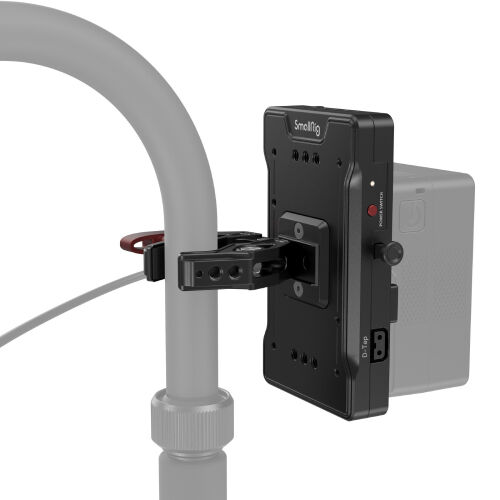

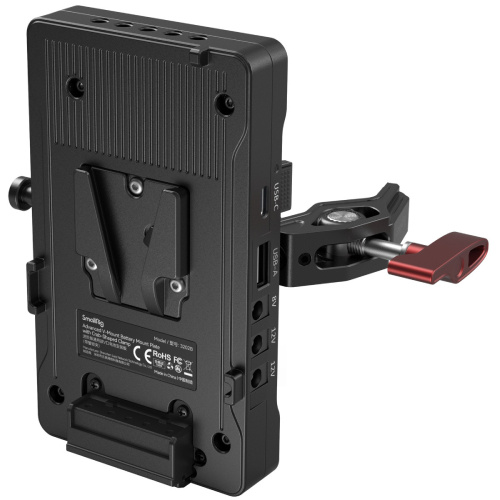

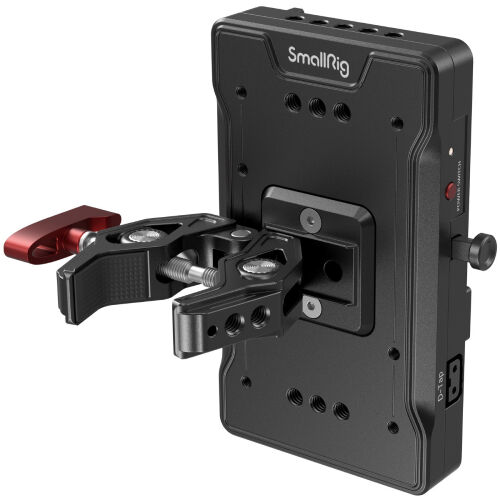

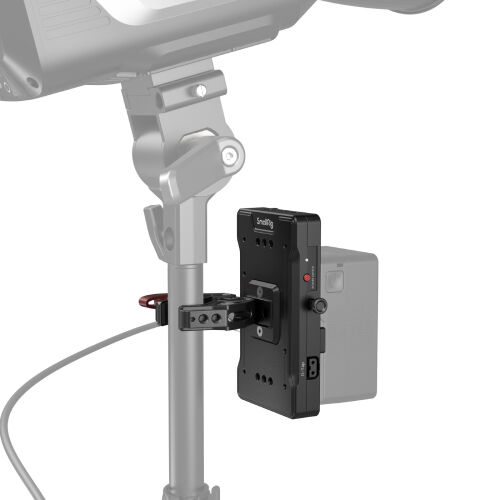

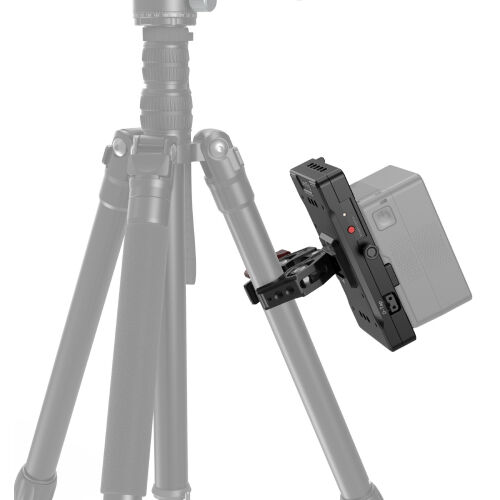

SmallRig Advanced V-Mount Battery Mount Plate with Crab-Shaped Clamp 3202B

The SmallRig Advanced V-Mount Battery Mount Plate with Crab-Shaped Clamp 3202B is engineered for flexibility and efficiency on set. This plate features a standard V-mount, ensuring compatibility with most V-mount batteries available. It offers a wealth of mounting options, including six 1/4"-20 threaded holes, ten M4 threaded holes on the back, and five 1/4"-20 threaded holes on the top and bottom. These allow for easy attachment of various accessories like the included crab-shaped clamp, dual rod clamp, and magic arm. For charging and powering your devices, it includes a PD protocol-compatible USB-C input/output (65W Max.), a QC protocol-compatible USB-A output (36W Max.), a D-Tap input/output (14.8V), and three DC output ports (DC5521 8V x 1, DC5525 12V x 2), providing a wide range of options for powering camera equipment and accessories. The power indicator light and charging/discharging indicator light provide clear feedback on the battery's status and charging mode. The plate is constructed from high-quality aluminium alloy for durability, offering excellent heat dissipation and a premium feel, while the power on/off button allows for convenient control of multiple ports simultaneously. This plate is the perfect tool for efficient power management in your setup.

Work With

V-mount Battery

Battery Compatibility
 V-Mount Battery
Crab-Shaped Clamp Compatibility Φ15-40mm rod; V-mount battery weighing not more than 1700g
Battery Voltage 11.0V~16.8V
Battery Rated Capacity 3500mAh~20000mAh / 14.8V
Cut-off Voltage 11.0V
Input Voltage (Max.) 16.8V
Working Power (Max.) ≤ battery power (subject to battery capacity)
Total Maximum Power Discharging: 271W (Max.)
D-Tap Rated Input / Output Current 5A
D-Tap Input / Output Current (Max.) 10A (subject to power adapter)
D-Tap Input Voltage 11.0V~16.8V
USB-A Output Power 36W (Max.)
USB-A Output Protocol QC2.0 / QC3.0 / AFC / DCP-1.5A / APPLE-2.4A
USB-C Input Power 65W (Max.)
USB-C Output Power 65W (Max.)
USB-C Input/Output Protocol PD3.0 / QC2.0 / QC3.0 / PPS / AFC /DCP-1.5A / APPLE-2.4A
DC1 Output 8.0V / 3A (Max.)
DC2 Output 12V / 3A (Max.)
DC3 Output 12V / 3A (Max.)
DC Overcurrent Protection ≥4.1A
Product Dimensions 16×9.3×9.5cm
Product Weight 0.413 ± 0.005kg
Material

 Aluminium Alloy


* Specifications subject to change by the manufacturer without notice.

  • SmallRig Advanced V-Mount Battery Mount Plate with Crab-Shaped Clamp 3202B
  • Crab-Shaped Clamp
  • Hex Spanner
  • User Manual
