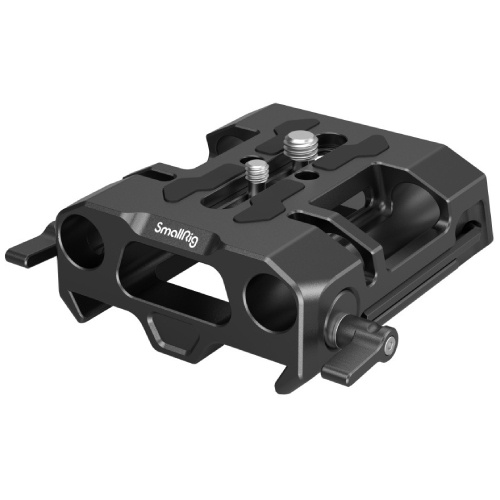

SmallRig 15mm Dovetail Bottom Mount Plate 4002

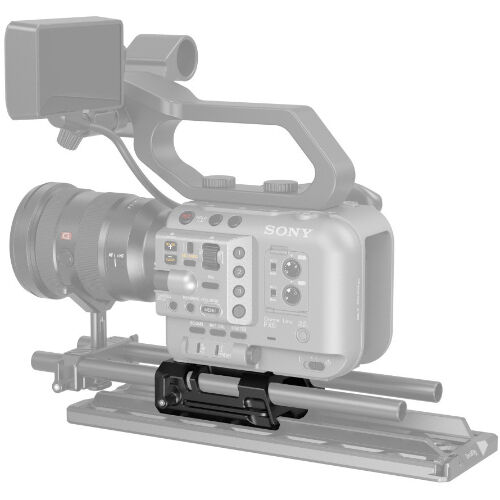

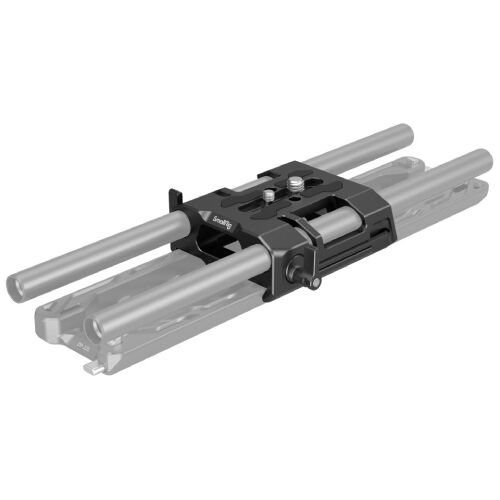

The SmallRig 15mm Dovetail Baseplate 4002 is an ARRI dovetail plate-compatible solution designed with a lightweight, hollowed-out structure, weighing just over 0.3kg yet capable of supporting up to 20kg. It features a low center of gravity, measuring only 3.8cm in height, keeping the camera just 28mm above the dovetail plate while providing ample space for dual 15mm rods. The baseplate secures the camera using one 1/4"-20 screw and one 3/8"-16 screw through the top slots, preventing twisting. A built-in wrench on the side allows for quick assembly and disassembly without interfering with baseplate operation. Additionally, it includes a 1/4"-20 and a 3/8"-16 threaded hole at the bottom, supporting compatibility with various quick-release plates beyond ARRI standards.

Work With

  • Universal
Product Dimensions 10.96 x 9.9 x 3.75 cm
Product Weight 0.318 kg
Material(s) Aluminium Alloy, Stainless Steel


* Specifications subject to change by the manufacturer without notice.

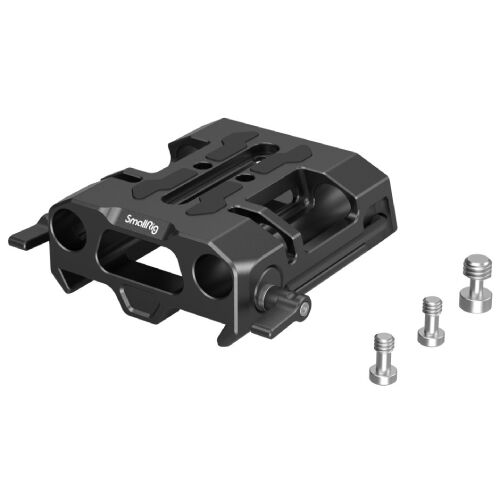

  • SmallRig 15mm Dovetail Bottom Mount Plate 4002
  • 1/4"-20 Screw
  • 3/8"-16 Screw
  • Wrench
