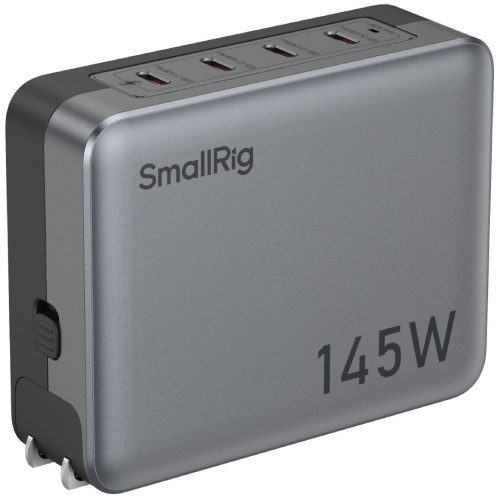

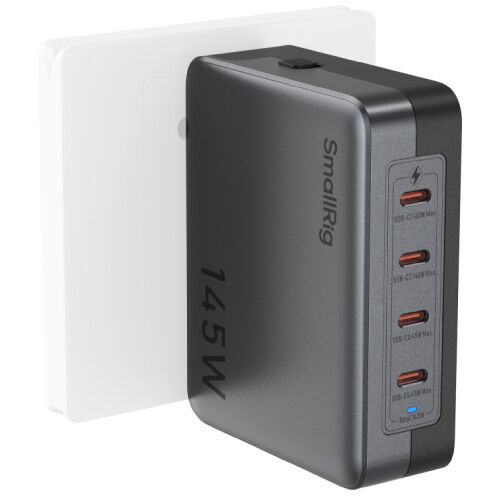

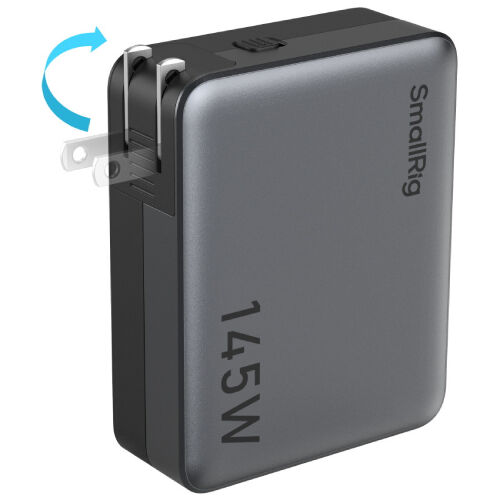

SmallRig 145W 4-Port PD Power Adapter (US Standard) 4747

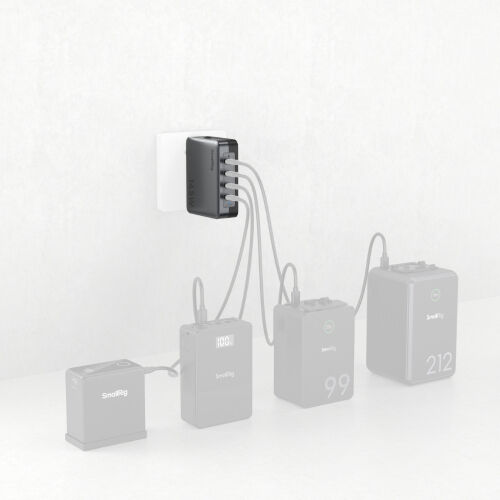

The SmallRig 145W 4-Port PD Power Adapter (US Standard) 4747 is a compact and powerful charging solution, offering a total output of 145W across four USB-C ports. Designed for versatility, it supports simultaneous charging of devices like V-mount batteries, NP-F batteries, rechargeable camera batteries, smartphones, and laptops, making it ideal for a variety of applications. USB-C1 and USB-C2 provide up to 140W each with PD3.1, while USB-C3 and USB-C4 offer up to 45W, ensuring efficient charging for high-power devices. The adapter is equipped with short-circuit and overcurrent protection for safe operation. Its lightweight design makes it travel-friendly, while the power status indicator provides a clear visual cue, lighting up when connected and turning off when disconnected. FCC certified, this power adapter delivers reliable performance and peace of mind.

Product Weight 0.35 ± 0.01kg
Product Dimensions 9.7 x 7.6 x 3.1cm
Material PC
Total Output Power 145W
Power Input 100-240VAC 50 / 60Hz 2.2A

SINGLE-PORT MODE

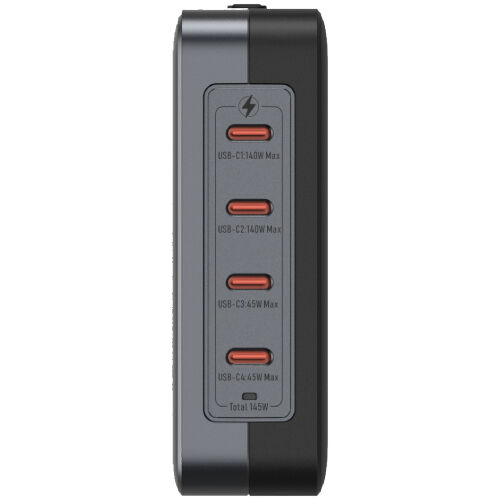

USB-C1 / C2 28V5A (140W) Max
USB-C3 / C4 20V2.25A (45W) Max
Total 140W Max

DUAL-PORT MODE

C1 / C2 + C3 / C4
USB-C1 / C2 20V5A Max
USB-C3 / C4 20V2.25A Max
C1 + C2
USB-C1 / C2 20V3.25A Max
C3 + C4
USB-C3 / C4 9V2.22A Max
Total 145W Max

TRIPLE-PORT MODE

C1 + C2 + C3 / 4
USB-C1 20V3.25A Max
USB-C2 20V1.5A Max
USB-C3 / C4 20V2.25A Max
C1 / C2 + C3 + C4
USB-C1 / C2 20V5A Max
USB-C3 / USB-C4 9V2.22A Max
Total 145W Max

QUAD-PORT MODE

USB-C1 20V 3.25A Max
USB-C2 20V 1.5A Max
USB-C3 9V 2.22A Max
USB-C4 9V 2.22A Max
Total 145W Max


* Specifications subject to change by the manufacturer without notice.

  • SmallRig 145W 4-Port PD Power Adapter (US Standard) 4747
  • Operating Instruction
  • User Manual
  • Guarantee Card
