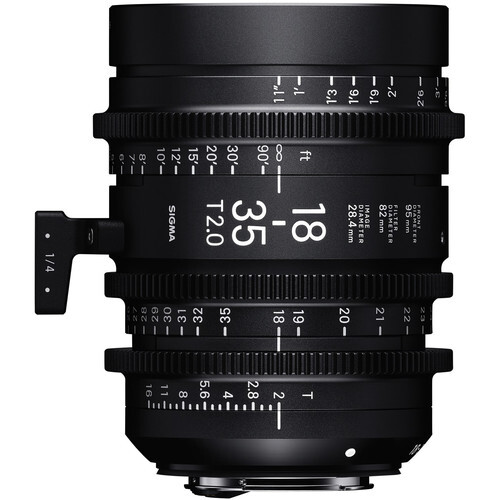

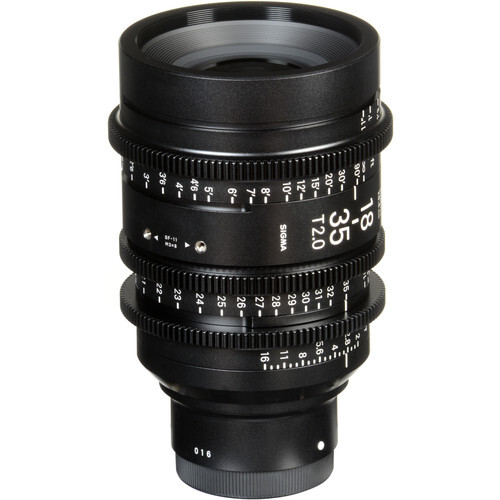

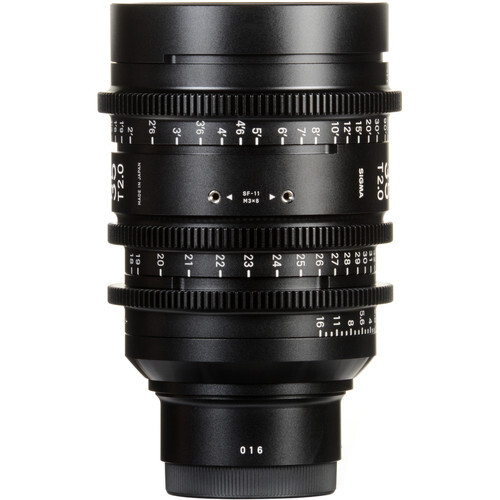

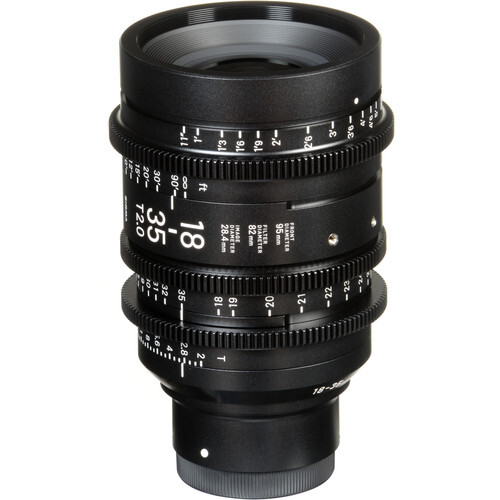

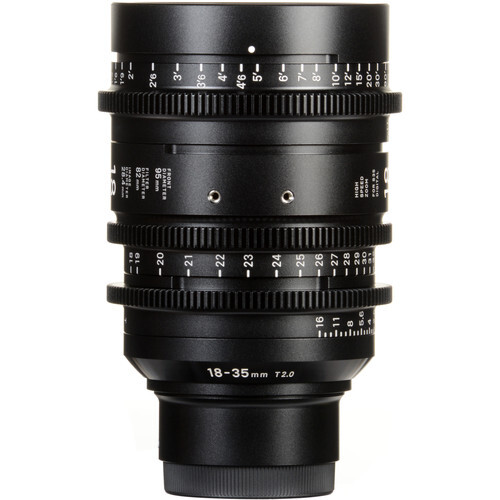

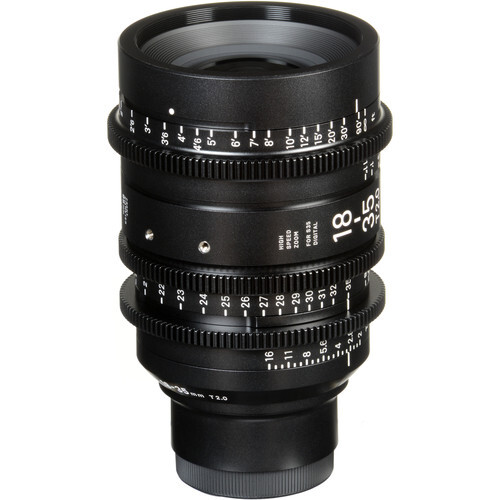

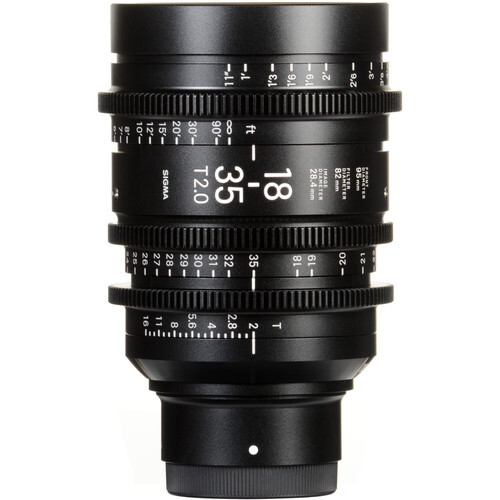

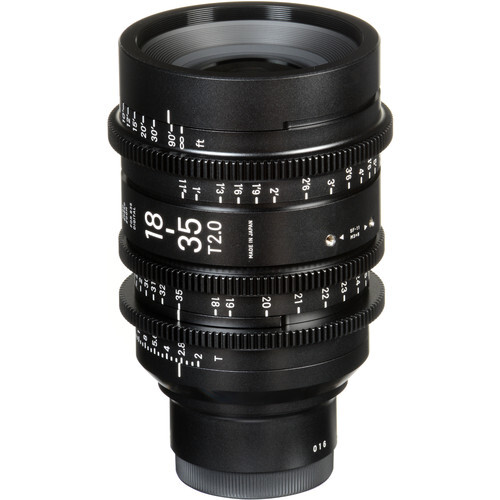

Sigma 18-35mm T2 High-Speed Zoom Lens for PL Mount
SKU code: 49999
- Covers Super 35mm Sensors
- 28.4mm Image Circle
- Internal Focus Design
- 180° Focus Barrel Rotation
- T2 Max Aperture, Clickless 9-Bladed Iris
- 95mm Front Lens Diameter
- Removable Lens Support Foot
You May Also Like
The Essentials:
Bags, Cases & Straps:
Tripods & Monopods:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Studio Lighting:
Storage:
Other:
Sigma 18-35mm T2.0 (ft) Overview
The Sigma 18-35mm T2 Cine High-Speed Zoom Lens with a PL mount and focus scales marked in feet provides an image circle that covers Super 35mm-sized sensors. It has a maximum T-stop of 2 and the aperture remains consistent over the zoom range. This lens is compatible with other Sigma High-Speed Zoom lenses, allowing for quick lens changes.
The 9-bladed iris provides round out-of-focus highlights for a natural-looking bokeh. The lens barrel features 180° of rotation from close focus to infinity, the zoom barrel rotates 160°, and the clickless iris ring features 60° of rotation. All three lens control rings are geared with cine-standard 0.8 Mod gears, and the focus scale is marked in feet. The front of the lens is 95mm in diameter with a removable 1/4"-20 support foot that helps support the lens with the aid of a 1/4"-20 rod-mounted lens support (not included).
Colour Balance
All the lenses in the lineup are designed to comply with SIGMA's CCI standard simplifying when intercutting between lenses.
Dustproof and Splashproof Design
Sharing the same dustproof and splashproof construction as the SIGMA 150-600mm F5-6.3 DG OS HSM | Sports, each ring and mount is sealed to prevent water and dust from entering.
All-Metal Body Construction
The lens body is made completely of metal to stand up to the rigours of the production day.

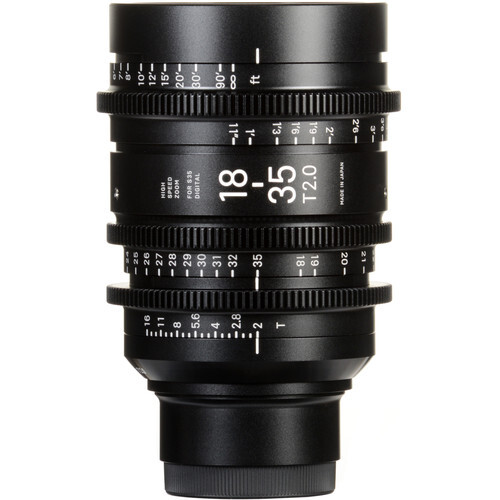

Lens Markings
The main lens markings are in luminous paint for easy visibility in low-light situations. The intermediate markings are laser-engraved for durability. The focus and zoom markings are readable from either side of the lens.

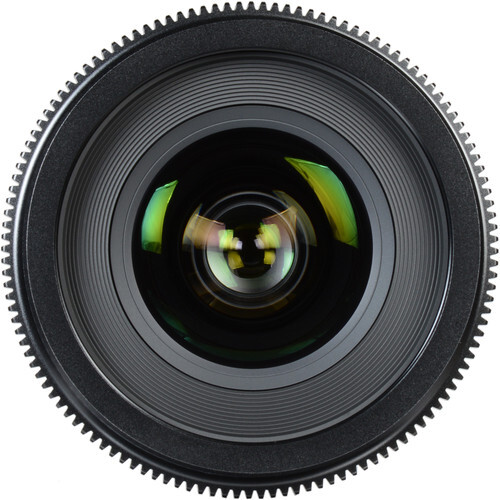

Lens Front
The lens features a 95mm front diameter for compatibility with a wide variety of matte boxes and incorporates an 82mm front filter thread.
Lens Gears
All three lens gears are standard 0.8 Mod and feature a damper that eliminates metallic sounds when you reach the end of the lens travel.
Support Foot
The lens includes a removable support foot.
SIGMA 18-35MM T2.0 (FT) | |
Focal Length | 18 to 35mm |
Lens Mount | ARRI PL |
Lens Format Coverage | Super35/APS-C |
Image Circle | 28.4 mm |
Maximum Aperture | T2 |
f/1.8 | |
Minimum Aperture | T16 |
Minimum Focus Distance | From: 27.9 cm |
Diaphragm Blades | 9 |
Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch |
Iris: 0.8 MOD / 32 Pitch | |
Zoom: 0.8 MOD / 32 Pitch | |
Front Diameter | 95 mm |
Filter Thread | 82 mm |
Focus Scales | Imperial |
Focus Rotation | 180° |
Iris Rotation | 60° |
Zoom Rotation | 160° |
Zoom Ratio | 1.94x |
Lens Support | 1/4"-20 Mounting Thread |
* Specifications subject to change by the manufacturer without notice
- Sigma 18-35mm T2 High-Speed Zoom Lens for PL Mount
- Support Foot
- Front Lens Cap
- Rear Lens Cap
