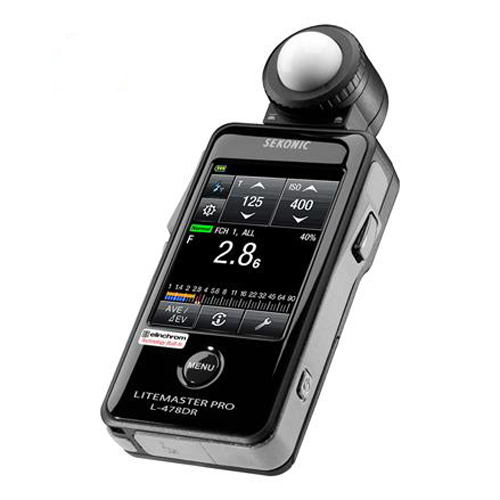

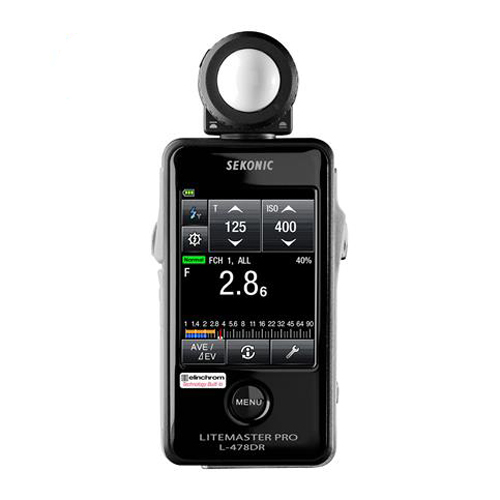

Sekonic Litemaster Pro L-478DR-EL with Elinchrom Radio Transmitter
SKU code: 32256
Australian Owned, Online Since 2001
Local Contact Centre
Industry Experts, Knowledgeable Team
Australia Wide Delivery
From Beginner to Pro, Affordable Gear
Secure Payment Methods
Key Features:
- Sensitivity Range: -2 to 22.9 EV at ISO 100
- Supports Flash light metering (with PC Sync)
- Controls and Flashes Elinchrom Skyport compatible Lights (4 Groups)
- Supports 3 Camera Profiles
- Runs on AA Batteries
Wide Range Light Sensitivity
The Sekonic Litemaster Pro L-478DR-EL light meter has a tremendous light sensitivity of -2 to 22.9 EV at ISO 100 which allows you to take accurate exposure readings before taking a shot. Especially if you are shooting HD videos with your DSLR cameras, the Sekonic Litemaster exposure meter provides you with HD and HD cine settings. Using these settings you can meter light for a specific shutter angle from 1-358° and frame rate selection from 1-1,000 fps.
Large Touchscreen Display
2.7” touchscreen display is bright, easy to read and offers intuitive control. Large touch buttons make changing the settings effortless and free from any confusion. Exposure values appear in large font size which can be read without straining your eyes. The EL Skyport modes are highlighted in Green and Red colours for easy identification and to make sure that your studio lights are firing properly.
Elinchrom Skyport Compatible
The exposure meter can measure as well as control the flashes fired by Elinchrrom Lights having Skyport receivers. The RX range of Elinchrom studio strobes can be controlled using the 20 channel transmitter built into the exposure meter itself. Exposure can be precisely controlled by clubbing the lights into different groups (up to 4), each set at a different value.
Customisation for Different Needs
The exposure meter has a lumisphere which is retractable to measure the light from single source and when it is in an exposed position, it measures light from all the direction. While shooting products under multiple lights with varying intensities, and for other photography purposes when you need to measure light of only a selected area, 5° viewfinder (sold separately) can be easily attached. The lightmeter can be profiled for 3 separate cameras using the profiling target (again sold separately) and data transfer software (free download) to help you fine tune exposure readings which are already precise.
Runs on AA batteries
The Sekonic L-478DR-EL works on 2AA batteries which can be easily available at most retail outlets. So when you are travelling for any assignment, any need for changing batteries would not stop you from getting perfectly exposed photographs or videos.
Packaging Weight | 0.77 lb. (0,35 kg) |
Packaging Dimensions | 8.26" L x 5.82" W x 1.96" H (21cm x 14.8cm x 5cm) |
Receptor Head | Incident light and reflected light |
Light Receiving Method | Incident light and reflected light |
Receptor Incident Light | Convertible to flat diffuser (Lumisphere in retracted position) |
Receptor Reflected Light | 5° spot with optional viewfinder |
Flash Analyzing Function | 0 to 100% in 10% increments |
Multiple Flash Function | Infinite number of flash readings (Only one digit is displayed when the cumulated number is ten or more) |
Calibration Compensation | (+/-) 1.0 EV (in 1/10 stops) |
Exposure Compensation | (+/-) 9.9 EV (in 1/10 stops) |
Custom Functions | 14 custom functions |
Auto Power Off | Selectable in Custom Functions |
Measuring Modes Ambient Light | Aperture priority, Shutter speed priority, TF priority, CINE, HD Cine, Illuminance (lx/fc), Luminance (cdm2/fl) |
Measuring Modes Flash | Cord (PC), Cordless, Radio Triggering (with/without mulitple cumulative) |
Measuring Range (ISO 100) Flash | 0.63 to 2,000,000 lux - 0.10 to 180,000 fc |
Measuring Range Brightness | 0.25 to 190,000 cd/m2 - 0.10 to 190,000 foot lamberts |
Display Range Film Speed | ISO 3 to 409,600 (in 1/3 stops) |
Display Range Shutter Speeds Ambient | 31 min. to 1/64,000 sec. plus 1/200, 1/400 sec (in 1, 1/2 and 1/3 stops) |
Display Range Shutter Speeds Flash | 31 min. to 1/1000 sec plus 1/75, 1/80, 1/90, 1/100, 1/200, 1/400 |
Display Range Aperture | f/0.5 to f/161.2 (in 1, 1/2 and 1/3 stops) |
Display Range EV | EV-27.9 to EV55.8 (with Incident light reading of ambient light) |
Display Range Cine Speeds fps | 2 to 1000 f/s, plus user created settings: 20 entries |
Display Range Shutter Angle | 1°to 358°, plus user created settings: 20 entries |
Battery(Power): | 3 Type AA 1.5V Batteries Alkaline, Manganese, Lithium, Nickel Hydride, Nickel Based |
Battery Power Indicator Display: | Icon with 3 status |
Radio Triggering System: | Elinchrom Skyport |
Frequency: | 2.4GHz |
Triggering Range: | Up to 100 feet, Transmitter-Receiver |
Frequencies/Groups: | Normal: 20 Frequencies / 4 Groups Speed: 20 Frequencies / 4 Groups |
* Specifications subject to change by the manufacturer without notice.
