Key Features:
- Ultracompactclip-on body-pack wireless transmitter
- Works with Blink 500 RX, RXDi, and RXUC portable dual-receivers (Sold separately)
- Great soundingbuilt-in omnidirectional microphone
- External mic input (ASR-M1 omnidirectional lavalier microphone included)
- Power indicator
- Volumecontrol buttons
- Built-in clip
Saramonic Blink 500 Transmitter TX
SKU code: 45178
Australian Owned, Online Since 2001
Local Contact Centre
Industry Experts, Knowledgeable Team
Australia Wide Delivery
From Beginner to Pro, Affordable Gear
Secure Payment Methods
Key Features:
- Ultracompactclip-on body-pack wireless transmitter
- Works with Blink 500 RX, RXDi, and RXUC portable dual-receivers (Sold separately)
- Great soundingbuilt-in omnidirectional microphone
- External mic input (ASR-M1 omnidirectional lavalier microphone included)
- Power indicator
- Volumecontrol buttons
- Built-in clip
You May Also Like
The Essentials:
Bags, Cases & Straps:
Cleaning & Maintenance:
Audio Equipment:
Cables & Connectivity:
Other:
Built-in Microphone & Lavalier for Blink 500 Receivers

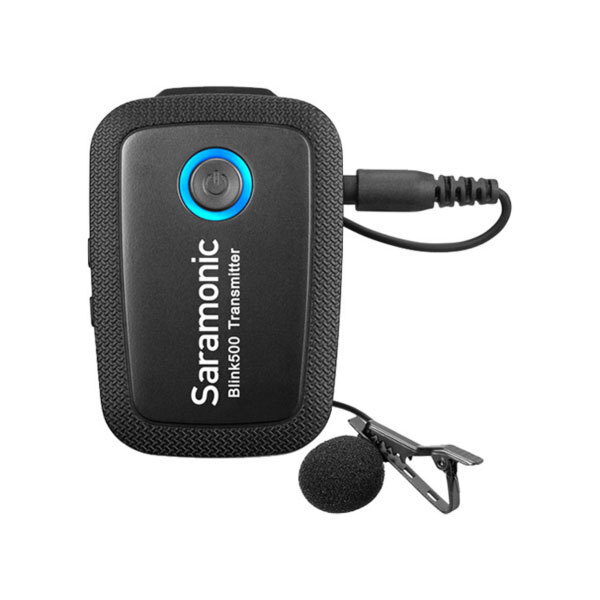

The Saramonic Blink 500 TX is a remarkably compact and lightweight clip-on wireless microphone transmitter with built-in microphone & lavalier that delivers broadcast quality sound and is designed to work with the Blink 500 RX, RXDi, and RXUC portable dual-receivers.
The Saramonic Blink 500 TX has an excellent sounding built-in microphone and the entire device is small and light enough to clip directly to shirt collars, clothing or slide into a pocket. It is also versatile enough to set on a table or podium, or even used handheld.
The built-in microphone is capable of capturing voices clearly and naturally, but if you want an even cleaner visual look, it also operates as a traditional bodypack transmitter with the included SR-M1 professional omnidirectional clip-on lavalier microphone, providing an even more professional and visually discreet miking solution.
The item includes 1 clip-on wireless transmitter with a built-in microphone and a built-in clip, 1 SR-M1 omnidirectional clip-on lavalier microphone and windscreen.
Does not work as a stand alone unit. Requires Saramonic Blink 500 Wireless Receiver which supports up to two simultaneous transmitters. Blink 500 Receiver for Cameras, iPhones and Android Smartphones.
Transmitter Specifications |
|
Frequency |
2.4GHz |
Oscillator Type |
Gaussian Frequency-Shift Keying (GFSK) |
RF Frequency Band |
2400 to 2483.5 MHz |
RF Output Power |
10 mW |
Signal to Noise Ratio |
=70dB |
Voice Delay |
=6ms |
Reference Audio Input Level |
-30 to -42dBv (Microphone Input, 0 dB Attenuation) |
Audio Gain Control |
11dB, 18dB, 25dB |
Plug-In Power |
Yes, 1V |
Distortion |
=0.1% |
Digital Resolution |
24-bit / 48kHz |
Frequency Response |
20Hz to 16kHz |
Max Operating Range |
30m with Obstacles, 50m line of sight |
Max Number of Simultaneous Systems |
18 (up to 36 Microphones) |
Antenna |
Built-in 1/4? Wire Antenna |
Buttons |
On / Off / Pair, Volume Up, Volume Down |
Battery |
Built-in Li-ion 3.7V / 400mAh |
Approx. Battery Life |
5 hours |
Charging Connector |
USB Type-C (1.5 hours to be fully charged) |
Input |
3.5mm Microphone Input |
Indicators |
4 x Blue LEDs |
Microphone |
Built-In Pressure Operated Electret Condenser |
Microphone Pickup Pattern |
Omnidirectional (Built-In Microphone and External Lavalier) |
Microphone Frequency Range |
50Hz-18KHz (Built-In Microphone and External Lavalier) |
Microphone Equivalent Noise Level |
>58dB (Built-In Microphone and External Lavalier) |
Maximum SPL |
120dB (Built-In Microphone), 110dB (External Lavalier) |
Mounting Clip |
Built-In |
Operating Temperature |
0°C to 50°C |
Storage Temperature |
-20°C to +50°C |
Dimensions |
63 x 43 x 16.5mm |
Weight |
34g |
* Specifications subject to change by the manufacturer without notice
- Blink 500 TX Transmitter with Built-In Microphone and Clip
- SR-M1 Omnidirectional Lavalier Microphone
- Alligator-Style Lavalier Microphone Clip
- Foam Lavalier Windscreen
- 30.5cm Gold-Plated USB-C to USB-A Charging Cables
- Paring Pin
- Warranty Card
- User Manual
