Portkeys PT6 Overview

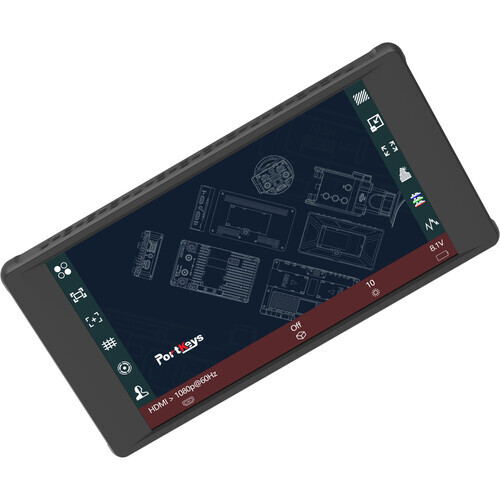

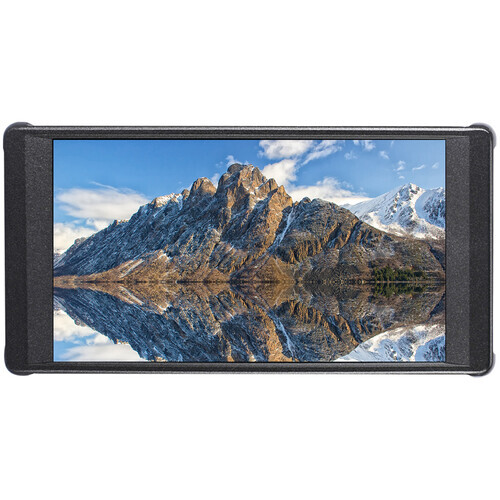

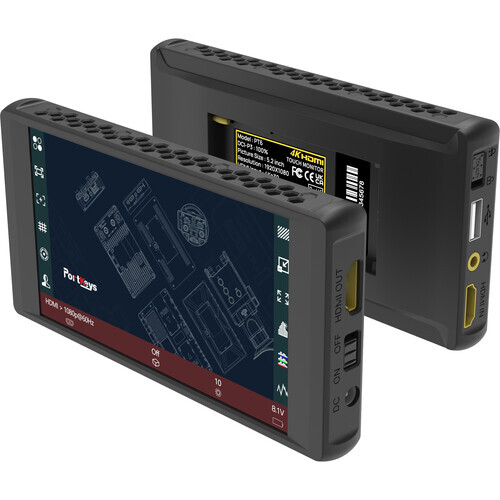

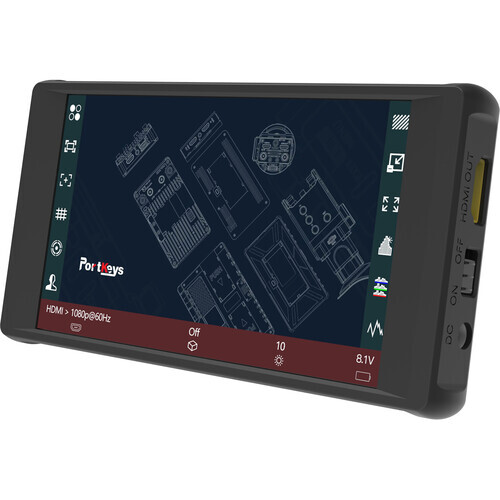

Boost the quality of your video monitoring with the PT6 5.2" 4K HDMI Touchscreen Monitor from Portkeys. This handy, 5.2" touchscreen monitor supports the DCI-P3 wide colour gamut and comes with a range of imaging tools, such as focus peaking, image cropping and anamorphic output. It offers up to 4K30 HDMI input and 1080p60 output, UI output and a stretch function for vertical monitoring.

3D LUT Output

Provides the ability to output 3D LUTs for customized, nuanced monitoring.

Vertical Stretch

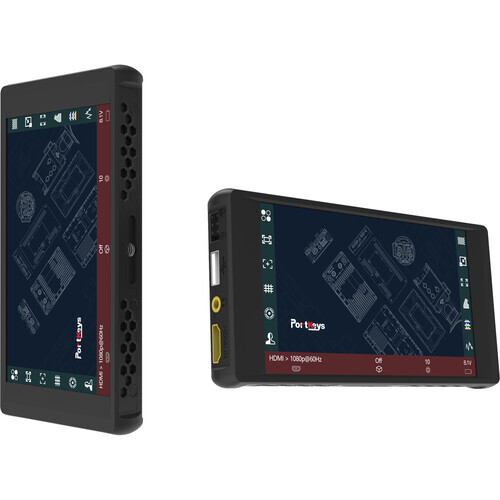

Real-time image stretching for vertical-mode capture.

Up to 4K HDMI Input

Supports up to DCI 4K30 input and 1080p60 output, both via HDMI.

Wide Colour Gamut

Covers 100% of the DCI-P3 wide Colour gamut, producing detailed, refined images.

Anamorphic HDMI Output

  • Calibrates anamorphic lenses, outputs via HDMI.
  • Supports 1.0/1.33/1.4/1.5/1.6/1.85/2/2.35x ratios and 0.25-4x user-defined adjustment range.

Touchscreen

Bright, compact, 5.2" touchscreen for on-camera monitoring.

Imaging Tools

  • 3D LUTs, anamorphic calibration
  • Vertical extension for portrait mode
  • Exposure: RGB and luma waveforms
  • Luma histogram, zebra
  • ARRI false Colour, false Colour
  • Focus: Zoom functions, customized peaking
  • Cropping: Customized cropping for viewing image details
  • Framing: Check field, grids, image flip, and crosshair marks
  • Display: Anamorphic, Colour temperature, contrast, and sharpness
  • Display: Brightness, tint, backlight, and underscan
  • Battery: Remaining power
  • Audio: Metering
DISPLAY

Panel Type
IPS-Type LCD
Display Size
5.2" / 13.2 cm
Resolution
1920 x 1080
Aspect Ratio
16:09
Viewing Angle
Horizontal: 178°
Vertical: 178°
Touchscreen
Yes
Maximum Brightness
600 nits / cd/m2
Contrast Ratio
1500:1
Bit Depth / Colour Support
10-Bit (1.07 Billion Colours)
HDR Compatibility
Yes
Pixels Per Inch (ppi)
423 ppi
Colour Gamut
100% DCI-P3
100% Rec. 709
Real-Time LUT Monitoring
SDR, HDR
Image Controls
Anamorphic De-Squeeze, Colour Temperature Selection, Customizable Aspect Ratios, False Colour, Focus Peaking, H/V Delay, Histogram, Image Flip, OSD Flip, Pixel Zoom, R/G/B/Chroma Only, RGB Parade, Scaling, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

INPUTS / OUTPUTS

Video I/O
1 x HDMI Input
1 x HDMI Output
Embedded Audio
HDMI
Audio I/O
1 x 1/8" / 3.5 mm Headphone Output
Power I/O
1 x Barrel (24 VDC) Input
Other I/O
1 x USB-A 2.0 Input

FORMAT SUPPORT

Video Format
HDMI (10-Bit 4:4:4/4:2:2)
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 60/59.94
Gamma Curve
HDR-HLG

POWER

DC Input Power
7 to 24 VDC
Battery Type
1 x LP-E6, L-Series
Power Consumption
6 W (Maximum)
Mounting
1 x 1/4"-20 Female

GENERAL

Material of Construction
Plastic, Polycarbonate
Dimensions
15.07 x 7.78 x 0.85 cm
Weight
0.170 kg


* Specifications subject to change by the manufacturer without notice

  • Portkeys PT6 5.2" 4K HDMI Touchscreen Monitor
  • Sunshade
  • HDMI Cable
  • Micro-HDMI to HDMI Cable
  • Rubber Cover
  • MH-2 Mount
  • Storage Box
