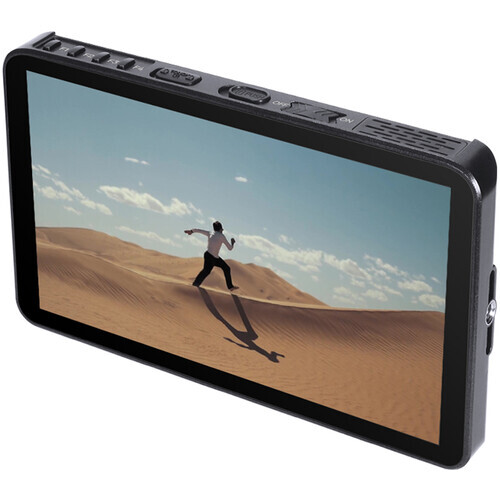

7" High-Bright Touchscreen Monitor with Wireless Control

Enhance your Sony camera setup with the PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control. This black 7" on-camera touchscreen monitor boasts a 1920 x 1080 resolution and 1000 cd/m² brightness, and is capable of inputting and outputting up to DCI 4K24 or UHD 4K30 video via HDMI. Enjoy pro monitoring and control with this monitor.

Compatible with Sony and Blackmagic Design cameras with wireless control capability, this monitor features a built-in wireless module that enables select camera functions, and a separately available control cable also allows you to connect your device to the monitor. Other features include 3D LUT support, vertical shooting stretching, anamorphic correction on HDMI output, cropping, and a variety of image monitoring tools, including peaking, Colour temperature, waveform, histogram, and more.

Wireless Camera Control Functions

  • Camera control is available via the integrated wireless module for Blackmagic Design cameras such as the Pocket Cinema Camera 4K/6K/6K Pro and Sony cameras, including the a1, a9, a7C, FX3, FX10, a7S III, a7 IV, RX0, and a7 III.
  • Control functions include iris, shutter, zoom, frame rate, ISO, Colour temperature, focus, and more.

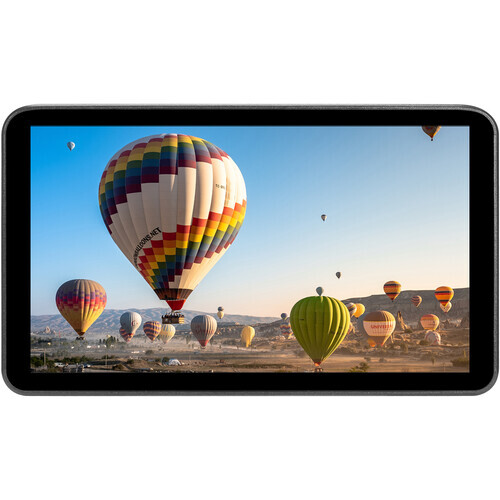

High-Bright 7" Touchscreen Monitor

This 7" LCD on-camera monitor features 1000 cd/m² and a 1000:1 contrast ratio for daylight visibility.

DCI/UHD 4K Video

Supports HDMI input and output up to DCI 4K24 or UHD 4K30.

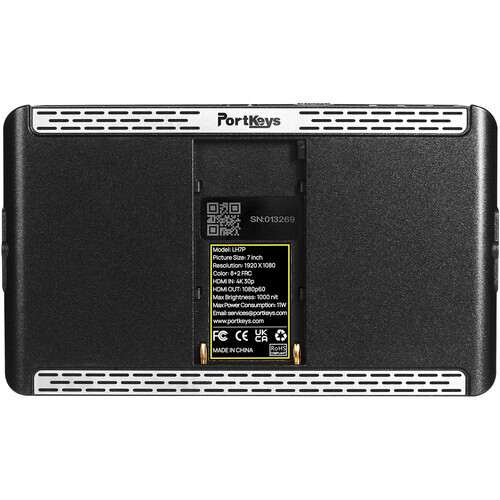

Sony L-Series Battery Plate

Power with the built-in L-Series battery plate or power your camera with a separately available dummy battery using the DC output.

Image Tools

  • 3D LUT support with custom LUTs via USB
  • Peaking
  • False Colour
  • Luma
  • Waveform
  • Real-time eye focus
  • Anamorphic de-squeeze
  • Anamorphic lens calibration
  • Frame guides, crosshairs, grids
  • Colour temperature
  • Brightness
  • Sharpness
  • Cropping
  • Check field
  • Zebra
  • Luma histogram
  • Custom RGB
  • Audio meters
  • HDR/HLG support
DISPLAY

Panel Type
LCD
Display Size
7.0" / 17.8 cm
Resolution
1920 x 1080
Aspect Ratio
16:09
Viewing Angle
Horizontal: 170° (85/85)
Vertical: 170° (85/85)
Touchscreen
Yes
Maximum Brightness
1000 nits /cd/m2
Contrast Ratio 10000:1
Bit Depth / Colour Support
8-Bit+FRC (1.07 Billion Colours)
HDR Compatibility
Yes
Pixels Per Inch (ppi)
314 ppi
Real-Time LUT Monitoring
HDR
Image Controls
Anamorphic De-Squeeze, Check Field, Colour Temperature Selection, Focus Peaking, Histogram, Image Flip, Waveform, Zebra

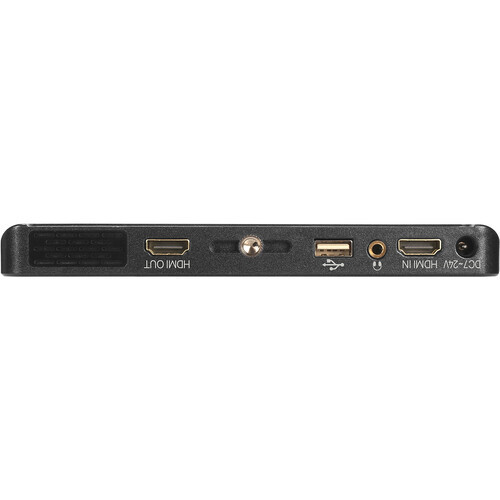

INPUTS / OUTPUTS

Video I/O
1 x HDMI 1.4 Input
1 x HDMI 1.4 Output
Embedded Audio
HDMI
Audio I/O
1 x 1/8" / 3.5 mm Headphone Output
Power I/O
1 x Barrel (24 VDC) Input
1 x USB-A (2 A / 5 VDC) Input
Other I/O
1 x USB-A (Firmware), (LUT Upload) [Shared with USB-A Power Input]
Wi-Fi
Yes
Bluetooth
Yes


FORMAT SUPPORT

Video Format
HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94/50
480i: 60/59.94/50

POWER

DC Input Power
7 to 24 VDC
Battery Type
1 x L-Series
Power Consumption
9 W

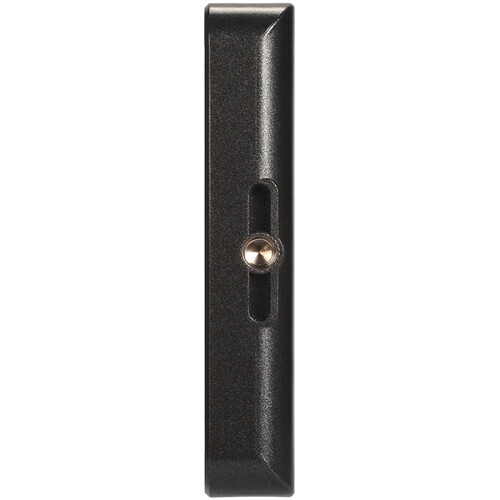

MOUNTING

Mounting
2 x 1/4"-20 Female

GENERAL

Material of Construction
Plastic
Dimensions
17.62 x 10.38 x 1.84 cm
Weight
0.245 kg


* Specifications subject to change by the manufacturer without notice

  • Portkeys LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)
  • Micro-USB Flash Drive
  • HDMI Cable
  • Cleaning Cloth
  • Storage Box
