Intelligent Wireless Flash Setup

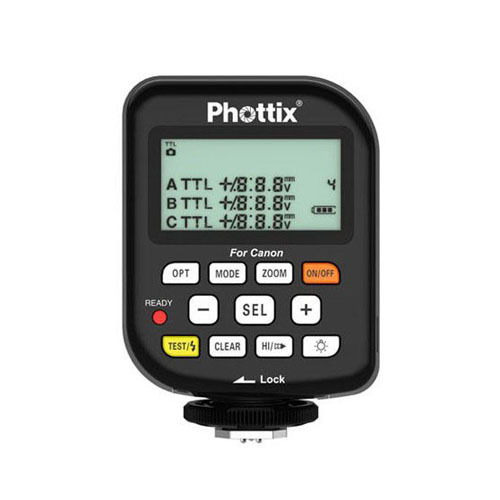

The Phottix Odin Wireless TTL Flash Trigger Transmitter allows users to remotely trigger their speedlights for creative and dramatic off-camera light setups with full TTL compatibility for ease of use when paired with one or more Odin Receivers. Enhance your studio and environmental photographs with Odin controlled wireless lights starting today!

Enables Remote Power Control

The Odin system preserves TTL functionality with the camera able to automatically set the flash unit to an intelligently chosen light output. Users can fine-tune light output via remote power control of each lighting group either in TTL (3 stops positive or negative) or Manual flash control. A:B ratio control of power output is also available, which is perfect for quickly setting dramatic portrait lighting.

Wireless High Speed Sync

Odin trigger and receiver pairs retain High Speed Sync capabilities with synchronisation down to 1/8000 second shutter speeds. Second curtain flash synchronisation and remote flash head zoom adjustment functionality is also retained.

Compatibility with Phottix Triggers

The Odin TTL transmitter is also able to trigger the Strato 4-in-1 and Atlas II receiver units. Strato and Atlas Transmitters are not able to trigger Odin receivers.

Ongoing Support

Upgrading the firmware for Phottix Odin Wireless TTL Flash Trigger Transmitter unit is simple thanks to built-in USB ports. Ensure maximum compatibility of your unit by keeping it up to date.

Groups 3 groups-A, B, C
Battery 2 xAA BATTERIES, 5V DC on receiver (external power port)
Flash port voltage handling =300V
Attachment ¼ tripod lug, cold shoe
Dimensions 90(L) x 45(W) x 40(H) mm (receiver)
Weight 66g (receiver) – without batteries
Channel 4 Channels
Frequency 2.4 GHz
Max sync speed 1/8000 sec
Output Hot shoe, 3.5mm port
Input USB port receiver
Working Temperature -15—65 C
Operating distance Approx. 100m
Storage temp -30—85 C
Input Voltage 2.4 – 3.2 V




Compatibility
Compatibility depends on the unit selected.

The Sony version of the Odin is compatible with Sony Digital Cameras and Flashes. Some third party TTL flashes may function with the Phottix Odin.

Odin Transmitter and Receiver units only have Minolta hotshoes. For cameras with newer ISO hotshoes, an adapter from Sony (not included in package) is needed to attach the transmitter onto cameras with an ISO hotshoe or to mount an ISO hotshoe flash on the receiver.

The Nikon version of the Odin is compatible with Nikon Digital Cameras and Flashes, Phottix Mitros TTL Flash for Nikon. Compatible with the following Nikon flash; SB-400, SB-600, SB-700, SB-800, SB-900, SB-910, Phottix Mitros TTL Flash for Nikon.

Please note cameras; D70 and D70s not compatible.

* Specifications subject to change by the manufacturer without notice



  • Odin TCU Transmitter
  • 2x AA Batteries
  • 3.5mm to PC Sync Cable
  • 3.5mm to 3.5mm cable
  • 6.3mm adapter
  • USB Cable
  • Lanyard
  • Instructions CD
  • QC certificate
