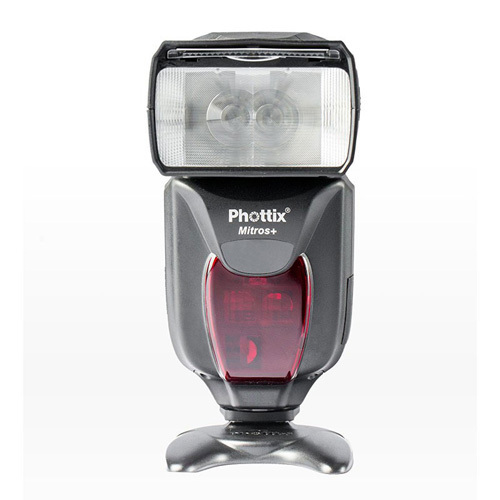

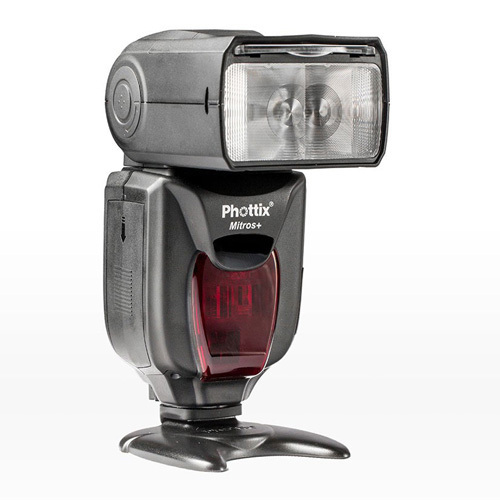

The Phottix Mitros+ TTL Transceiver Flash Canon is a highly versatile professional level flash that combines a Canon or Nikon compatible E-TTL or i-TTL flash, a Phottix Odin Transmitter and Receiver and a Strato II Receiver. It’s perfect for both on and off camera flash photography.

Powerful TTL Speed Light

With a guide number of 58, the Mitros+ is a powerful hot shoe flash unit fully compatible with TTL flash metering, with manual mode and multi modes, including high speed sync. An intelligent auto flash zoom matches the lens focal length from 24-105mm, or can be manually set.

Fast Recharge Time

A swivelling head (360 degree rotation, 97 degree tilt) and a quick recycle/recharge time from 0.1-2.5 seconds for minimal wait times between each shot make this unit perfect for event and wedding photography, making sure you never miss a critical moment.

Integrated Odin and Strato Wireless Triggers

Thanks to the integrated wireless trigger capabilities, the Mitros+ speedlight can trigger other Mitros+ units, Phottix Odin and Strato Receivers, or be triggered by the Odin TCU or Strato II Multi Transmitter. It’s perfect for strobist style off-camera flash photography either on location or in studio.

Remote Power Control Functionality

In Odin Transmitter mode, the Mitros+ permits remote power control in three different ways.

- Flash groups can be controlled with complete TTL functionality for automated flash exposures, and easy setup
- Flash groups can be triggered with remote manual flash power settings, from 1/128 through to full power, with 1/3 stop increments
- Flash groups can be triggered with some set to TTL power control, and others to manual control

Wireless High Speed Sync

While using the Mitros+ with Odin triggers, flash functionality such as high speed sync (at up to 1/8000 second shutter speeds), second curtain flash synchronisation and remote flash head zoom adjustments are retained.

Used in conjunction with Strato receivers and transmitters, the unit can sync up to 1/250 second shutter speeds.

Memory Function for Quick Setup

The Phottix Mitros+ TTL Flash Canon with built-in Odin and Stratos transceivers introduces a built-in memory function that retains flash set up and custom function settings for quickly deploying in different situations. Pair it with a light stand, umbrella, softbox or your favourite light modifiers for creative environmental portraits and product photography, or retrieve your preferred on-camera TTL setup in moments.

Power Four size-AA alkaline or size Ni-MH batteries (Nikon version compatible with Nikon high-performance battery pack SD-9 through specific adapter.)
Modes TTL, Manual, and Multi Stroboscopic
Zoom Auto and Manual Adjustments
Guide No 58/190 (at 105mm focal length, ISO 100 in meters/feet)
Flash coverage 24-105mm (14mm with wide angle diffuser panel)
Rotation 360 degrees, Up-Down: -7 to 90 degrees.
FEC (Flash exposure compensation) Manual
Sync modes First Curtain Sync, Second Curtain Sync, and High Speed Sync
Stroboscopic flash Frequency:1-199Hz Number of flashes: 1-90
Flash exposure confirmation Blue LED lamp lights up in TTL mode
Recycling time/Flash-ready indicator Normal flash: Approx.0.1-5 sec./Red LED indicator lamp lights up.
Quick flash: Approx.0.1-2.5 sec./Green LED indicator lamp lights up.
Power saving Non-wireless slave modes: 90 seconds, Wireless slave mode: (programmable) 10 minutes or 60 minutes
Standby current =100uA in sleep mode
Dimensions (L x W x H): 202.8×77.5×58.3 mm
Weight 427g (flash only, excluding batteries)




Wireless Functionality







Transmission method Radio Frequency and Optical pulse
Channels 4
Wireless options: Odin Tx, Odin Rx, Strato II Rx, OP Tx (Master), OP Rx (Slave), OP Slave, OFF
Transmission range (Approx.) Radio: 100m +, Optical: Indoors: 12-16m/39.3-52.4 ft., Outdoors: 7-9m/22.9-29.5 ft.
Reception angle Radio: 360 ° all directions, Optical transmission:±40°(horizontal),±30°(vertical)
Controlled groups 3 (A, B, and C)


* Specifications subject to change by the manufacturer without notice





  • Phottix Mitros+ Flash Trigger Transceiver
  • Flash Bag
  • 3.5mm to 3.5mm Cable
  • USB cable
  • Battery Port Adapter
  • Flash stand
  • Diffuser
  • Manual (USB Drive)
  • QC certificate
  • Quick-Start guide card
  • Warranty Card
