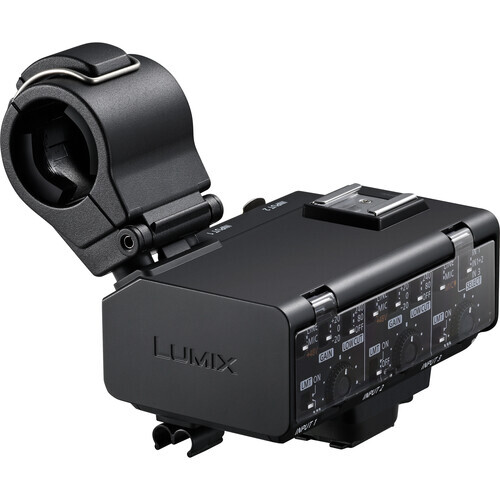

Panasonic Lumix XLR2 Adaptor

Expand the audio capabilities of your DC-GH7 mirrorless camera with this shoe-mounted DMW-XLR2 XLR Microphone Adapter from Panasonic. Powered directly by the camera through the hot shoe, it provides two XLR inputs for using professional microphones. Additionally, there is a 3.5mm stereo audio input for alternative mic options, making it a versatile solution for high-quality audio recording.

The unit features a control panel with a clear cover that sports numerous physical dials and controls for changing the levels, gain, and low cut filter of each input individually. It also supports high-resolution recording formats up to 96 kHz and 24-bit, and it provides 48V phantom power to either the dual XLR inputs or to the 3.5mm input. A cable clamp is provided for cable management, and a cold shoe mount on the top of the unit can support additional accessories.

Compatibility
Panasonic Lumix DC-GH7
Input Level
XLR:
  LINE: 0 dBu
  MIC, +48V: -40 dBu
  (0 dBu=0.775 Vrms)
  3.5 mm Jack:
  LINE: -10 dBV
  MIC, MIC (plug-in power): -40 dBV
  (0 dBV=1 Vrms)
Phantom Power
XLR: 48 V
  3.5 mm: 2.5 V
Input Level
-12 dBFS
Frequency
20 Hz to 40 kHz, +1/-1 dB (During Fs=96 kHz, During LINE)
Sampling Rate
Linear/Float:
  48 kHz, 24-Bit, 2-Channel
  96 kHz, 24-bit, 2-Channel
  (Select One of INPUT1, INPUT1+2, or INPUT3)
  48 kHz, 24-bit, 4-Channel
Audio I/O
2x XLR 3-Pin Input
  1x 1/8" / 3.5 mm Mic Input (Stereo)
Power Source
Camera
Operating Temperature
14 to 104°F / -10 to 40°C
Operating Humidity
10 to 80%
Mounting
Bottom: 1x Hot Shoe
  Top: 1x Cold Shoe
Colour
Black
Dimensions
9.2 x 6.12 x 6.09 cm (Without Microphone Holder)
  10.62 x 9.46 x 9.2 cm (With Microphone Holder)
Weight
0.158 kg (Without Microphone Holder)
  0.192 kg (With Microphone Holder)


* Specifications subject to change by the manufacturer without notice.

  • Panasonic Lumix XLR2 Adaptor
  • Microphone Holder
  • Cable Holder
  • Pouch
