Memory

SD (SDHC, SDXC, UHS-I, UHS-II, Eye-Fi Card[1] compatible)

*1 Not compatible with Endless Memory.

Sensor size

17.3 mm x 13.0 mm

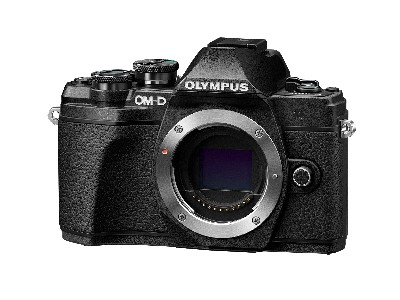

Lens mount

Micro Four Thirds

Number of pixels / aspect ratio

Number of effective pixels : Approx. 16.1 million pixels

Total number of pixels : Approx. 17.2 million pixels

Aspect ratio : 1.33 (4:3)

Dust reduction

Supersonic Wave Filter (image sensor dust reduction system)

Recording format

DCF2.0, Exif 2.3

File format

RAW (12-bit lossless compression), JPEG, RAW + JPEG

Recording image size

[RAW] 4608 x 3456 pixels
[JPEG] 4608 x 3456 pixels to 1280 x 960 pixels

Type

Built-in 5-axis sensor-shift image stabilisation for video and still photos
(compensates for yaw, pitch, roll, vertical shift, horizontal shift)

Modes

S-IS ON(AUTO), OFF

Live View image stabilisation

Activation by half-pressing shutter button or enlarging view

Focal length setting

Input focal length: 0.1 to 1000 mm (0.1 step)

Stabilisation performance

4.0 EV steps [*]
*Based on CIPA measurement conditions.

Available manual focal length setting

When using M.Zuiko Digital ED 14-42mm F3.5-6.3 EZ (focal length =42mm (35mm equivalent with 84mm)

Finder type

Eye-level OLED viewfinder, approx. 2.36 M-dot

Field of view / Viewfinder magnification

Approx. 100% / Approx.1.23x (50mm lens, Infinity, -1m-1)

Eye point / Diopter adjustment range

Approx. 19.2mm (-1m-1, Distance from rear lens surface) / -4 to +2m-1

Preview

Live View preview

Display Grid

Off / normal grid / trichotomy /golden grid / scale / diagonal / movie grid

Level Gauge

2-axis (horizontal/vertical) level gauge

Brightness and Colour Temperature Control

Adaptive brightness technology, ±2 level manual control /±3 level manual control

Eyecup

EP-16 eyecup is available separately

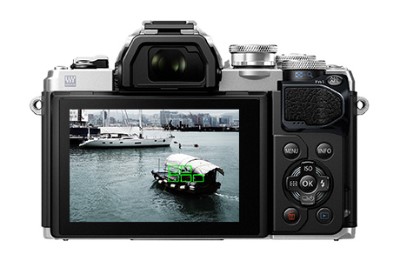

Live View

Approx. 100% field of view,
exposure compensation preview,
WB adjustment preview, gradation preview,
face detection preview (up to 8 faces), grid line, magnification display (x3/x5/x7/x10/x14)
Display modes: Standard, Histogram, Highlight & Shadow, Level Gauge, Off (Image only)

Preview

Live View preview

Live View Boost

With
*Exposure compensation will not be applied

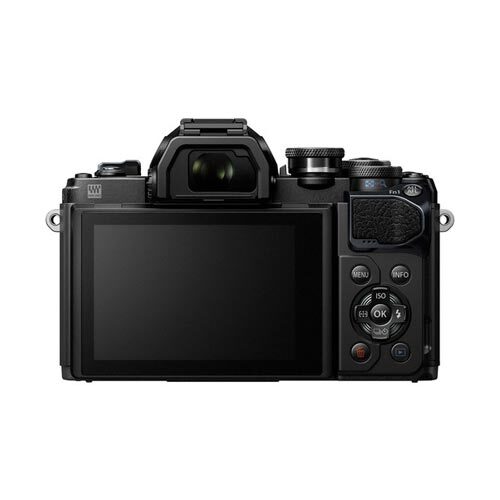

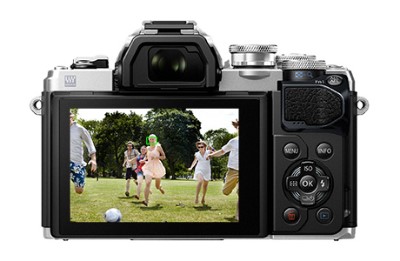

Monitor type

3.0-inch tilting monitor [*]

*Approx.1040 k dots (3:2), electrostatic capacitance touch panel

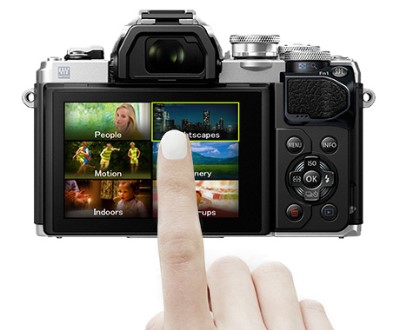

Touch control

Shutter release, AF area selection, AF area size adjustment, AF touch pad, frame forward/backward, magnified playback, Live Guide, Super Control Panel, Art Filter, Scene, Wi-Fi connection, video controls, video effects, video teleconverter

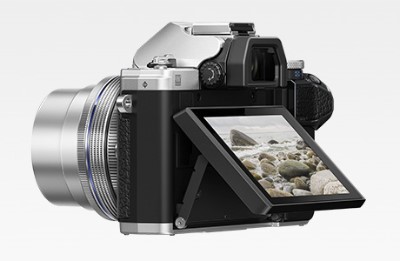

Tilting capability

Upward tilting angle: up to 85 degrees Downward tilting angle: up to 45 degrees

Brightness / Colour temperature control

±7 levels / ±7 levels

Colour tone select

Vivid / Natural

AF system

High-speed imager AF

Focusing point

121-point contrast AF

Focusing point selection mode

All target, group target (9-area), single target

Focus mode

Single AF (S-AF) / Continuous AF (C-AF)[1] / Manual Focus (MF) / S-AF + MF / AF tracking (C-AF + TR)[1]

*1 While Four-Thirds lens is attached, only S-AF (single target) or MF for video are available.

AF targeting pad

Yes (activate/deactivate with double tap on rear monitor)

Magnified frame AF

3x, 5x, 7x, 10x, 14x

*Autofocusing is possible in the magnified frame; can be assigned to button to turn magnify frame AF on and to activate magnification; touch icon on monitor to turn off; enables selection of AF point from over 800.

Super spot AF

Yes [*] (Contrast AF in centre of the monitor when magnified)

*Available only when a Micro Four Thirds lens is attached.

Face detection AF / Eye detection AF

With
Eye detection AF mode: off / nearer-eye priority

Manual focus assist

Focus ring rotation activates Live View image magnification and/or focus peaking when in S-AF+MF or MF mode

Peaking function

Activate with Fn button or focus ring
Change peaking settings using the Info button
Colour selection: white, black, red, yellow

AF illuminator

Yes

Metering system
(TTL Image Sensor Metering)

Metering system
(TTL Image Sensor Metering)

Metering range

EV -2 ~ 20 (using f/2.8 lens, ISO100)

Exposure mode / Shooting mode

Auto (Live Guide can be used) , P: Program AE (program shift can be performed), A: Aperture Priority AE, S: Shutter Priority AE, M: Manual (Live Bulb, Live Time and Live Composite are available), Scene Select AE, Advanced Photo AE, Art Filter

Scene select AE

[Advanced Photo]
Live Composite, Live Bulb, Multiple Exposure, HDR Backlight^[1], Silent, Panorama, Keystone Compensation, AE Bracketing, Focus Bracketing
[Scene]
(Portrait, e-Portrait, Landscape + Portrait, Night + Portrait, Children, Night scene, Sport, Hand-held Starlight^[2], Fireworks, Light trails, Sports, Panning, Landscape, Sunset, Beach & Snow, Backlight HDR^[1], Candlelight, Silent, Macro, Nature Macro, Documents, Multi Focus Shot)

·         *1 4 images automatically shot and combined into a single image composite

·         *2 8 images automatically shot and combined into a single image composite

Live Guide

Saturation, Colour, Brightness, Background Blur, Expressing Motion, Shooting Tips

·         *Multiple effects can be used simultaneously

ISO sensitivity

AUTO ISO (default): LOW (approx.100) - 6400 with customizable upper limit (200 to 25600)
Manual ISO: LOW (approx.100), 200 to 25600 (adjustable in 1/3 steps)

Exposure compensation

±5 EV, adjustable by 1/3 EV steps
When shooting in HDR or in video, only adjustable up to ±3 EV steps
Live View only reflects up to ±3 EV steps

AE lock

Locks with a half-press of the shutter button, AEL / AFL button (can be set to Fn button as well)

Shutter type

Focal-plane shutter (mechanical and electronic shutter)/ 1/4000 to 60 sec., with 1/3 EV adjustment steps
Live Bulb/Live Time: Max. 30 min. (selectable in menu settings, with 8-min. default setting)
Live composite: Max. 3 hours
Electronic first curtain shutter (Anti-shock mode) : 1/320 to 60 sec
Electronic shutter (Silent mode): 1/16000 - 30 sec

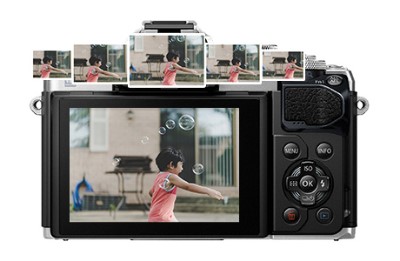

Sequential shooting maximum speed

[Sequential shooting H mode] approx. 8.6 fps (IS ON/OFF)

·         *Focus and exposure are fixed for values for the first shot

[Sequential shooting L mode] approx. 4.8 fps (IS ON/OFF)

·         *When using the M.Zuiko Digital ED 14-42mm F3.5-5.6 EZ

·         *SS=1/250

Max. recordable pictures
on sequential shooting^[*]

[RAW] Max. 8 frames (in seq. shooting L) Max. 22 frames (in seq. shooting H)
[JPEG (LN)] Max. 8 frames (in seq. shooting L) Max. 36 frames (in seq. shooting H)

·         *When using the M.Zuiko Digital ED 12-40 F2.8 PRO

·         *With TOSHIBA SDHC UHS-II R260?W240 EXCERIA™ PRO

Self-timer

Operation time: 12 sec., 2 sec., custom (Wait time: 1-30 sec., Shot interval: 0.5/1/2/3 sec., Number of shots: 1-10)

Flash intensity control method

TTL Auto, Auto^[*], Manual, Super FP^[*] (FP-TTL AUTO, FP-MANUAL)

·         *Available on the external flash

Built-in flash

TTL Flash, GN=5.8 (ISO100?m) / GN= 8.2 (ISO200?m)

Flash mode

Flash Auto^[*], Redeye, Slow Sync.(1st curtain), Slow Sync.(2nd curtain), Red-eye Slow Sync.(1st curtain), Fill-in, Manual(1/1(FULL)~1/64), Flash Off.

·         *AUTO and SCN only

Synchronisation speed

1/250 sec.^[*]


·         *Super FP: 1/125-1/4000 sec
*FL-50R: 1/180 sec. Others: 1/200 sec.

Flash intensity control

Up to ±3 EV in 0.3EV steps

Compatible external flash

FL-50R, FL-36R, FL-20, FL-14, FL-300R, FL-600R, FL-900R, STF-8, FL-LM3

White balance mode

Auto WB, 6 Preset WBs, 4 Capture WBs, Custom WB (Kelvin setting)

White balance compensation

±7 steps in each A-B/G-M axis

·         *Except for Custom WB

Colour matrix

sRGB, Adobe RGB

Mode

i-Enhance, Vivid, Natural, Muted, Portrait, Monotone, Custom, e-Portrait, colour creator, Art Filters

Gradation

Auto, Normal, High Key, Low Key [except i-Enhance, Art Filters, colour creator]

Highlight and shadow control

±7 steps each for highlight, shadow, midtone

Art Filter
(Variation / Art Effect)

Pop Art (I, II / a, b, c, d, e, f)
Soft Focus (- / c, e)
Pale & Light Colour (I, II / a, b, c, d, f)
Light Tone (- / d, f)
Grainy Film (I, II / b, c, d, g, h)
Pin Hole (I, II, III / d)
Diorama (I,II / d)
Cross Process (I, II / b, c, d, f)
Gentle Sepia (- / a, b, c, d, f)
Dramatic Tone (I / b, c, d, e, f) (II / b, c, d, e, f, g, h)
Key Line (I, II / a, b, c, d, e)
Water Colour (I, II / a, b, c, d)
Vintage (I, II, III / a, b, c, d, e, f, i)
Partial Colour (I, II, III / a, b, c, d, e, f)
Bleach Bypass (l, II / a, b, c, d, e, f, i)

Detail of Art Effect

a. Soft Focus Effect
b. Pin-Hole Effect
c. White Edge Effect
d. Frame Effect
e. Star Light Effect
f. Blur Effect (Top & bottom, Left & Right)
g. B&W Effect (None, Yellow, Orange, Red, Green)
h. Pict. Tone (None, Sepia, Blue, Purple, Green)
i. Shade Effect (Top & bottom, Left & Right)

Colour Ring (for partial colour)

18 colour selectable

Colour Creator

Colour pattern: 30 colours / Saturation setting -4 to +3

Exposure bracketing

Available as AE Bracketing in Advanced Photo mode.
3 frames in 1.0 EV steps, 5 frames in 0.7 EV steps.

Focus bracketing

Available as Multi Focus Shot in Scene mode and Focus Bracketing in Advanced Photo mode. Shoots 8 frames.
When in Advanced Photo mode, focus steps can be adjusted in 2 levels.
Compatible with Micro Four Thirds lenses only.

HDR
(Auto composite)

Available as Backlight HDR in Scene mode and HDR in Advanced Photo mode. ISO sensitivity is fixed at 200, and maximum shutter speed setting is 4 seconds.
HDR1 is available in both modes. HDR2 (painting-like) is available in Advanced Photo mode only. Exposure compensation can be performed in Advanced Photo mode only.

Keystone Compensation

Yes (can be confirmed in Live View)

·         *Horizontal and vertical compensation can be performed simultaneously by ±20 steps.

Shutter Type

Electronic first curtain shutter

Shutter Speed

1/320 to 60 sec.^[*]


·         *For speeds over 1/320 sec., mechanical shutter will automatically be selected.

Shutter start delay

0 sec.

Shutter Type

Electronic shutter

·         *Available as "Silent" in Scene mode and Advanced photo mode.

Shutter Speed

1/16000 to 30 sec.

Shutter start delay

0 sec.

Silent Mode Settings

Available as "Silent" in Scene mode and Advanced photo mode. (Sound, AF illuminator and flash are set to OFF as default settings).

Update interval time

0.5 sec. to 60 sec.

Update interval time / composite method

0.5 sec. to 60 sec. / Lighten Mode (Bright area prioritisation)

Interval Mode

Interval Time 1 sec. - 24 Hours, maximum 999 frames.
Automatic Time-lapse movie processing available.

Number of picture

2 frames

Aspect Ratio

4:3 (Default) / 3:2 / 16:9 / 1:1 / 3:4

Magnification

x2

Detection

2-axis

Recording format

MOV (MPEG-4AVC / H.264)

Mode / frame rate / compression method

[ MOV ]
3840 x 2160 (4K) / 30p, 25p, 24p / IPB (approx. 102 Mbps)
1920 x 1080 (FHD) / 30p, 25p, 24p / IPB (SF, F, N)
1920 x 1080 (FHD) / 60p, 50p / IPB (SF, F, N)
1280 x 720 (HD) / 30p, 25p, 24p / IPB (SF, F, N)
60p: 59.94 fps, 50p: 50.00 fps, 30p: 29.97 fps, 25p: 25.00 fps,
24p: 23.98 fps
FHD IPB (SF: SuperFine / approx. 52 Mbps, F: Fine / approx. 30 Mbps,
N: Normal / approx. 18 Mbps)
HD IPB (SF: SuperFine / approx.26Mbps, F: Fine / approx.14Mbps,N: Normal / approx.10Mbps)

·
*Frame rates may drop when particular Art Filters and Movie Effects are used.

·         *Class 10 or higher SD card is recommended for shooting video.

·         *UHS-II or USH-I U3 card is recommended for 4K shooting.

Maximum recording time

[MOV] Approx. 29min

Art Filter Movie

Yes
(Frame rates may drop when certain Art Filters are used)

Movie Effect

One-shot Echo / Multi-echo / Art Fade / Old Film

One-push Movie Digital Converter

Approx. 4x (enlarges view of touched area)

·
*Available in Movie Effect

Time Lapse Movie

[MOV]
3840 x 2160(4K) / 5 fps
1920 x 1080(FHD) / 5 fps,10 fps,15 fps
1280 x 720(HD) / 5 fps,10 fps,15 fps,30 fps

Clips

1, 2, 4, 8 sec.
(Further continued shooting possible up to 16 seconds by pressing video record button again)

High Speed Movie

120 fps (1280 X 720, MOV)

Image Stabilisation for Movie

M-IS1^[*] (Image sensor shift and electronic image stabiliser with multi motion IS),
M-IS2(Image sensor shift with multi motion IS),
Off

·         *While using M-IS1, field of view may be affected.

Grid Line / Focus Peaking

4 types of grid lines / 4 colours for focus peaking

Live View Output via HDMI

Monitor Mode (outputs video and info display to a connected monitor)^[*]

·
*Camera display is turned off when connected by HDMI.

Exposure Control

Program AE, aperture priority AE, shutter priority AE, manual

AE Lock

Yes

Recording format

Wave Format (Stereo linear PCM/16-bit, Sampling frequency 48 kHz)

Microphone / Speaker

Built-in stereo microphone / built-in mono speaker

Microphone function

Wind noise reduction, recording volume
Audio dubbing possible for still pictures (up to 30 sec.)

·         *May affect audio quality

GPS info. Function

Via smartphone GPS data

Wireless Shooting

Live View, rec view, wireless touch AF shutter, self-timer (w / countdown guidance, sequential shooting, video recording capability), wireless release, video recording, power off
Auto / SCN / ART / P / A / S / M (Live Bulb, Live Time, Live Composite) and drive mode can be selected.

Image Share

File Type: JPEG, MOV
Connect to up to 4 devices simultaneously. Marking function for image share.

Easy Connection

QR code setting

Playback mode

Single-frame, information display, index display (4 / 9 / 25 / 100 frames), Clips, calendar, enlargement (2x - 14x), video (with sound, FF / REW / Pause), picture rotation (auto), slideshow (with sound including BGM, Slide show effects, replaceable BGM), Light Box display

Information display

Histogram (independent luminance / RGB available), Highlight/Shadow point warning, AF frame, Photographic information, OFF

Video Editing function

Trimming (beginning / end) / in-video image extraction (4K only)

Editing function

RAW data edit, Gradation auto, Monochrome, Sepia, Red-eye fix, Saturation, Resize (1280 x 960, 640 x 480, 320 x 240), Trimming, Aspect, e-Portrait, Image Overlay, Post recording

RAW data edit

RAW data edit based on settings of the camera (including e-Portrait, Colour Creator, Art Filter, ART-BKT).
Preview capability.

Print function

Print reservation (DPOF), Direct print (PictBridge compatible)

Languages

34 languages selectable :
- English, French, German, Spanish, Italian, Japanese, Korean, Traditional Chinese, Simplified Chinese, Russian, Czech, Dutch, Danish, Polish, Portuguese, Swedish, Norwegian, Finnish, Croatian, Slovenian, Hungarian, Greek, Slovakian, Turkish, Latvian, Estonian, Lithuanian, Ukrainian, Serbian, Bulgarian, Rumanian, Indonesian, Malay, Thai

Dial customisation

Dial function is customisable for both dials

Button Customisation

Can select from 11 functions to assign to buttons.

Copyright Settings/Lens info Settings

Yes / No

USB connector

USB Micro-B

HDMI connector

Micro HDMI (Type-D)

Flash attachment

Hot shoe

Wireless LAN

Built-in (IEEE 8.02.11b/g/n)

PC interface

USB2.0 Hi-Speed

Battery

BLS-50 Li-ion battery (included)

Battery status display

Remaining power (4 steps)

Sleep mode

Yes (1 / 3 / 5 min. off)

Number of recordable pictures

Approx.330 shots when using BLS-50, with Live View constantly on, using M.Zuiko Digital ED 14-42mm f/3.5-5.6 EZ and TOSHIBA SD card, based on CIPA testing standards

Battery life for movie recording

Approx. 80 minutes^[*] (under standard JEITA testing)
Approx. 140 minutes^[*] (when zoom and other operational functions are not used)

·
*When repeatedly recording at the maximum time of 29 minutes, using M.Zuiko Digital ED 14-42mm F3.5-5.6 EZ, 4K video shooting.

Dimensions

121.5 x 83.6 x 49.5 mm
(based on CIPA standards: excludes protrusions)

Humidity

30 to 90% (when in operation) / 10 to 90% (when stored)

Temperature

0 to +40? (when in operation) / -20 to +60? (when stored)

Information display

Histogram (independent luminance / RGB available), Highlight/Shadow point warning, AF frame, Photographic information, OFF
