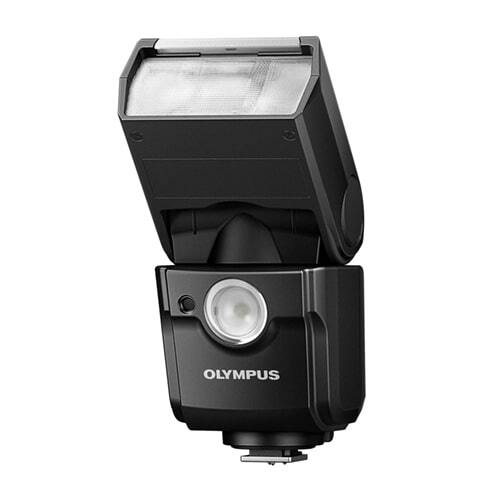

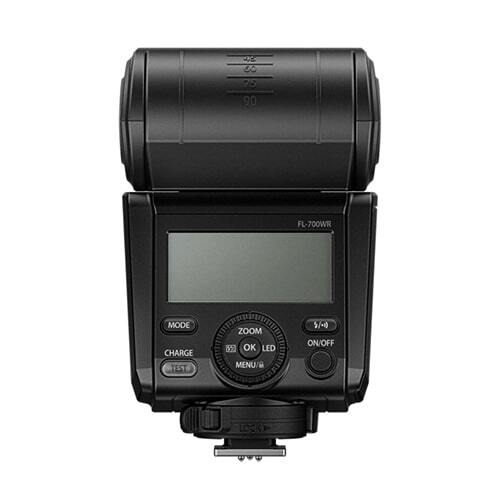

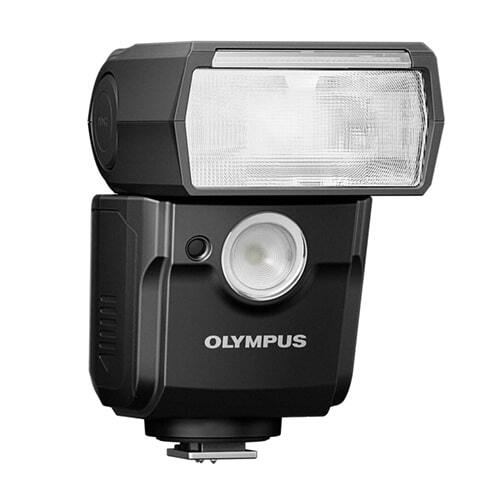

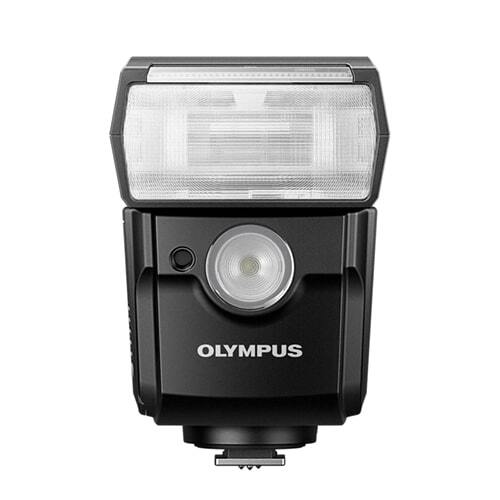

Olympus FL-700WR Electronic Flash
SKU code: NLA17971
- Guide Number 42m (ISO 100/m)
- 30m Wireless Radiowave Communication
- Olympus TTL Support
- Built-In Receiver for Flash/Commander Function
- Adjustable Bounce Angle
- LED Video Light (100 Lux @ 1m)
- Compatible with High Res Shot Mode
- Durable, Weather Resistant Design
High-Powered Electronic Flash
The Olympus FL-700WR is a high-powered on-camera flash that’s right at home with their professional level mirrorless cameras. With a maximum guide number of 42m at ISO 100/m, this compact unit delivers impressive output.Quick Recycle Time
A recycle time of just 1.5 seconds for a full powered flash means less time waiting and more time taking photos. This quick recharge time lends itself to sequential shooting modes, at up to 10fps, keeping up with the speeds of modern cameras.Wireless Radiowave Communication
The FL-700WR comes equipped with wireless radio wave communication that can operate at a distance of up to 30m, even in challenging locations where there may be obstructions. This ensures reliable communication with the flash, even if you can’t see it.Built-In Receiver
A built-in receiver function allows you to use the FL700WR as a flash or commander. When used as a commander, it can connect to 3 groups and an unlimited number of flash units. Operate specific groups independently by selecting which one to fire or not fire.Multi-Flash Mode
Multi-Flash Mode supports creative shooting endeavours like long exposure or bulb shooting. This mode fires the flash multiple times to capture the movement of your subject. Flash intensity and frequency can be adjusted to perfectly match your shooting scenario.High Res Shot Compatibility
The flash is also compatible with Olympus cameras that feature Focus Stacking, Focus Bracketing, and High Res Shot modes. This is deal for a completely streamlined workflow from the camera, to the editing desk.TTL Mode and Super FP Flash
TTL pre-flash measures the required flash intensity based on your camera settings and Super FP allows high-speed sync that exceeds your camera’s maximum sync speed. This is ideal when working in challenging lighting conditions like shooting in bright daylight.LED Video Light
For added convenience, the flash unit also has a built-in LED light with a 77° illumination angle a 100 lux output at 1m. This feature is great for shooting videos where constant lighting sources are big requirements.Rugged, Weather Resistant Design
Complementing their O-MD Pro cameras, like the E-M1mkII and E-M1X, the Olympus FL-700 WR flash is built incredibly tough. It’s dustproof, splashproof, and freezeproof to -10°C, giving you the ability to work outside, rain, snow, or shine.| Product type | TTL automatically controllable flash |
| Maximum guide number | Approx. 42 (firing angle of 75mm / standard light distribution, ISO 100·m) |
| Firing angle | Auto / Manual Focal length: 12mm to 75mm (35mm-equivalent focal length: 24mm to 150mm/ 7mm (35mm-equivalent focal length: 14mm) when using the built-in wide panel Light distribution modes: Standard / Wide[*]
* The same light distribution as the standard mode when the firing angle is 12mm or less. |
| Flash control modes | TTL / MANUAL / FP TTL / FP MANUAL / MULTI |
| Flash compensation | ±5 EV (Increment: 1/3 EV or 1/2 EV) |
| Manual flash intensity | From 1/1 to 1/128 (Increment: 1/3 EV or 1/2 EV) |
| Flash duration | From approx. 1/20000 second (M 1/128) to 1/950 second (M 1/1) |
| Firing frequency[1] | Approx. 2.5 seconds (when using AA dry-cell alkaline batteries) / Approx. 1.5 seconds (when using AA NiMH batteries) |
| Numbers of firing[1] | Approx. 240 times (when using AA dry-cell alkaline batteries) / Approx. 280 times (when using AA NiMH batteries) |
|
|
|
| Bounce | Upward: 0° straight ahead; from 0° to 90° upward |
| Radio wireless function |
|
| Control modes | Commander: Commander / Commander flash Receiver: RCV (commander flash control) / X-RCV (receiver control flash) |
| Maximum communication distance[1] | Approx. 30 m (98.4 ft.)
|
| Frequency | 2.4 GHz band |
| Numbers of channels | 15 (in the commander mode; with automatic channel setting function) |
| Numbers of groups | 3; maximum number of units: unlimited |
| Flash control modes | TTL / MANUAL / FP TTL / FP MANUAL / Off |
| Optical Wireless Function |
|
| Control modes | RC (commander flash control) / SL MANUAL (slave manual) |
| Numbers of channels | 4 |
| Numbers of groups | 4 independently controllable groups (receivers: 3; on-camera flash: 1) |
| Flash control modes | TTL / MANUAL / FP TTL / FP MANUAL / Off |
| LED / AF Illuminator |
|
| Colour | White |
| Illumination angle | Approx. 77° (equivalent to 14mm firing angle) (35mm-equivalent focal length: 28mm) |
| LED illuminance | Approx. 100 lux (1/1, 1m), MANUAL (From 1/1 to 1/32 in increments of 1 EV), OFF |
| LED lighting duration | Approx. 1.8 hours (when using AA dry-cell alkaline batteries)[1] |
| Charging completion indication | LED blinking; beeping sound |
| Power supply | AA alkaline dry-cell batteries x 4 / AA NiMH batteries x 4 |
| Operable temperature / humidity[2] | From -10 to 40°C (14 to 104°F) / From 30 to 90% |
| Storage warranty temperature / humidity | From -20 to 60°C (-4 to 140°F) / From 10 to 90% |
| Dimensions | Approx. 70.4 (W) x 106.3 (H) x 100.2 (D) mm (excluding the projecting parts) |
| Weight | Approx. 303 g (excluding batteries) |
