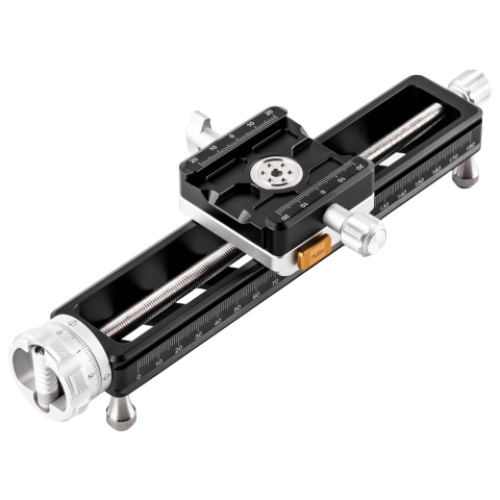

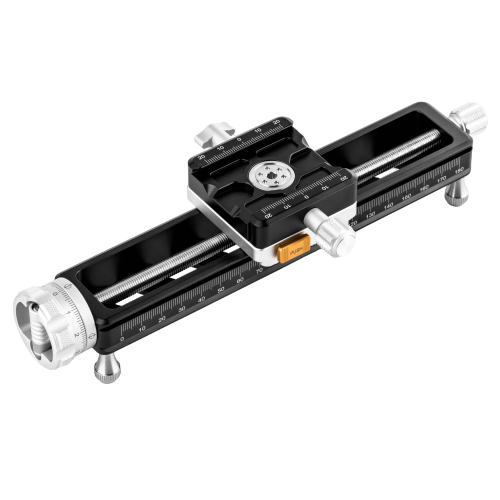

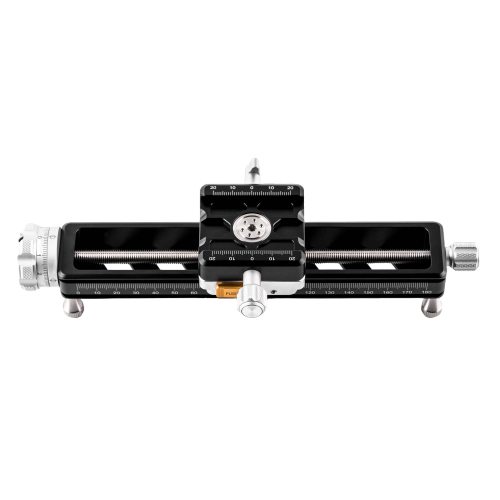

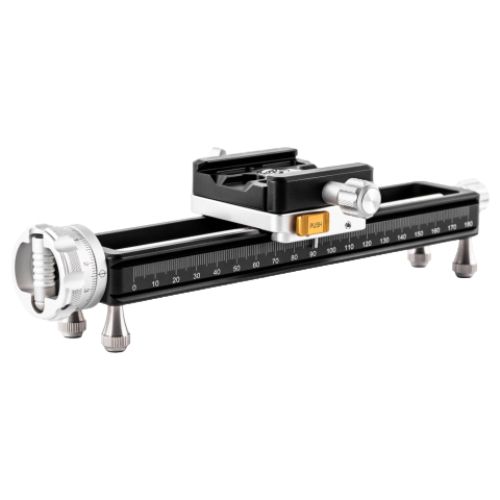

NiSi Quick Adjustment Macro Focusing Rail NM-200S with 360 Degree Rotating Clamp

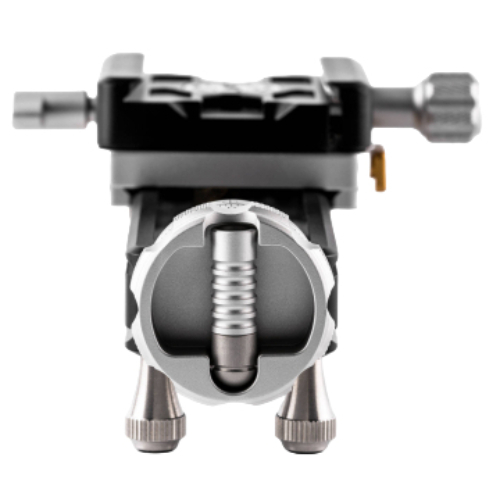

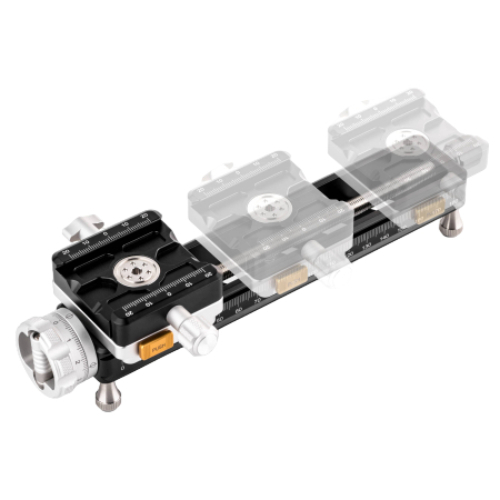

The NiSi Quick Adjustment Macro Focusing Rail NM-200S with 360-Degree Rotating Clamp allows you to precisely adjust your camera's position when shooting macro photography. The rail features an integrated Arca-type compatible quick-release clamp and includes an Arca-type plate. With a push button for swift large adjustments, the clamp is easily repositioned. The focusing rail has a double-dovetail mount that fits most Arca-type clamps available. The mounting clamp permits 360-degree rotation, allowing you to change the camera direction without removing the plate from the clamp. The adjustment range is 18cm, while the rail size is 20cm, providing maximum camera movement. Adjustments are made with a Collapsible Thumb-Screw Knob, making it simple to adjust and store. This knob has been upgraded with engraved index markings for precise adjustments. Included is a longer quick-release plate designed for telephoto lenses, featuring a groove for straps and easy locking and releasing. The maximum load capacity of the rail is 5kg.

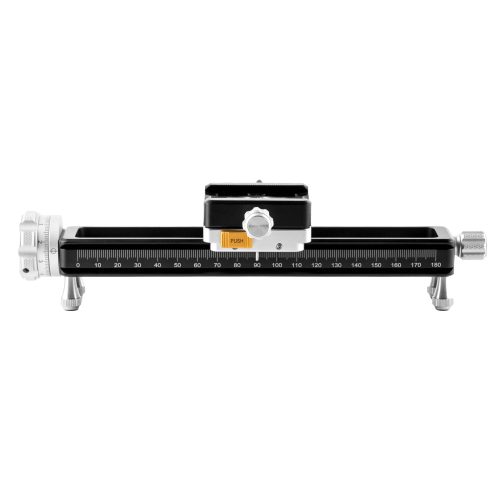

The Macro Rail can be mounted in most Arca-type clamps/ball heads on the market and also includes four detachable foot nails that allow the use of the rail directly on the tabletop. The stage travel per revolution is 1mm with engraved index marks on both sides of the rail for fine adjustments. The bottom for the rail includes 3/8" and ¼" screw hole which allows the use of all tripod heads.

The NiSi Quick Adjustment Macro Focusing Rail NM-200S with 360 Degree Rotating Clamp is constructed with high-quality CNC machined aluminium and is hard anodised with a corrosion-resistant finish. These features make it scuff and scratch-resistant.

The two focusing rails can be stacked for dual-axis adjustments.

The NiSi Quick Adjustment Macro Focusing Rail NM-200S with 360 Degree Rotating Clamp is the perfect companion for the NiSi Close Up Lenses.

Macro Focusing Rail NM-200S


* Specifications subject to change by the manufacturer without notice.

  • NiSi Quick Adjustment Macro Focusing Rail NM-200S with 360 Degree Rotating Clamp
