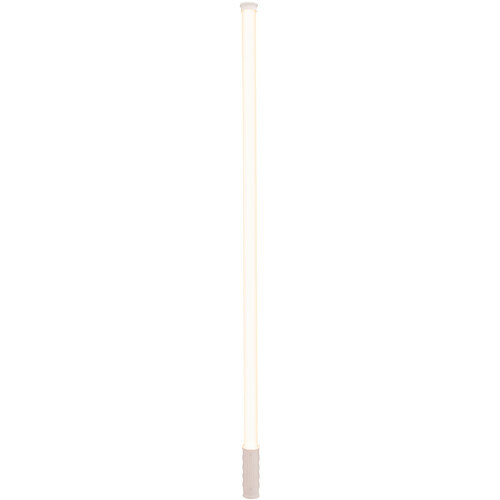

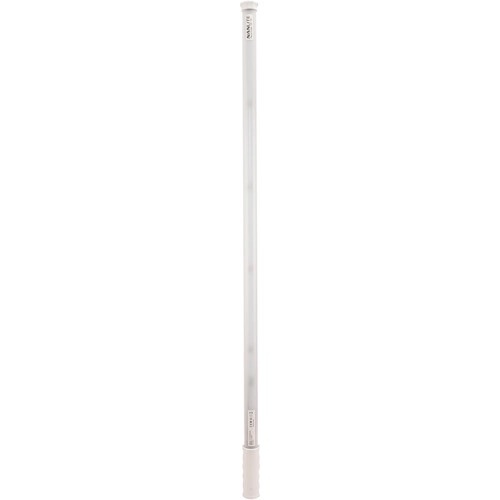

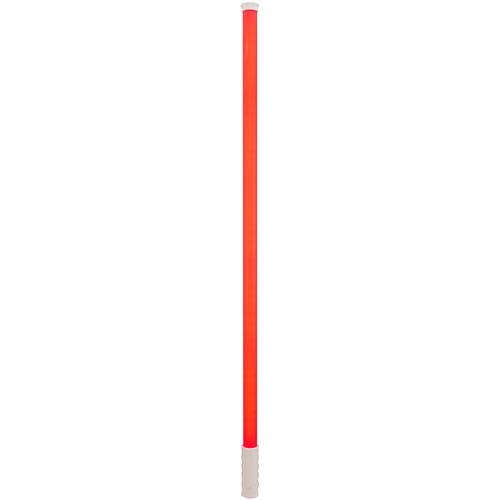

The Nanlite PavoTube T8-7X RGBWW LED Pixel Tube is a 3' RGBWW LED pixel tube with a small, 1.5" diameter housing, an integrated lithium-ion battery, and all the essential characteristics that make Nanlite's LED tubes perfect for video productions and picture sessions. The T8-7X was designed for artistic endeavors, including in-frame lighting for film productions and light painting photography. Similar moving pixel effects that may be customized are included in the light as in PavoTube II X-Series LED tubes.

This lightweight, easy-to-use tube can be handheld or mounted in a variety of ways with its integrated 1/4"-20 socket. It has built-in Bluetooth so it can be fully controlled wirelessly with the free NANLINK mobile app, or you can connect it to a DMX network for expanded control options.

Slim Convenient Form Factor

The T8-7X is up to 50% thinner than similar LED tube lights, making it easier to fit into tight spaces. Despite the slimmer design, it still has the same features that make PavoTubes desirable: a CRI of 96 and a TLCI of 97 accuracies, bi-color CCT, RGB, dimming, and effects.

Customizable Pixel Effects

Includes the same 15 practical special lighting effects, and 10 pixel-based lighting effects found in the top-of-the-line PavoTube II X-Series, like rainbow and driving, which mimics the lights that pass by in vehicles. You can customize and save presets in the free NANLINK app.

Handhold or Stand Mount

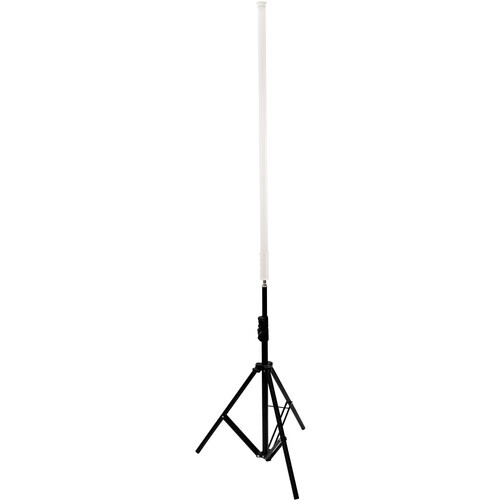

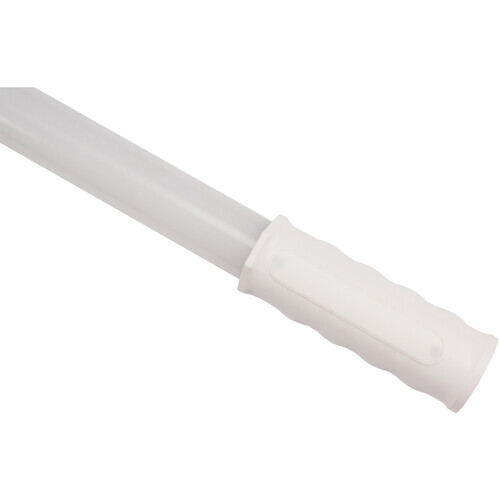

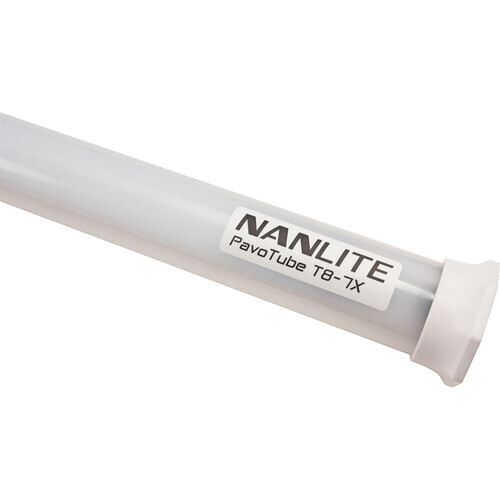

An integrated handgrip and a 1/4"-20 socket lets you mount the T8-7X to a tripod and other gear or attach a separately available LSFL floor stand, or an eyebolt to hang. The octagonal end cap shape allows the tube to angle the beam output when on the floor without rolling away.

Easy To Use, Bluetooth and DMX Compatible

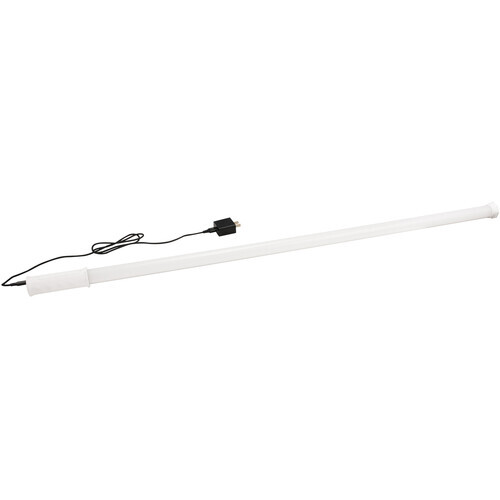

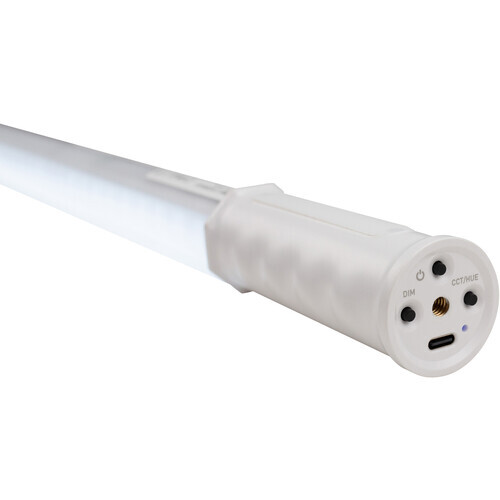

T8-7X has 3 analog control buttons for ease of use. The free NANLINK app is also easy to use and provides much deeper control. A separately available USB-C to DMX Cable provides full DMX control through XLR.

Multiple Power Options

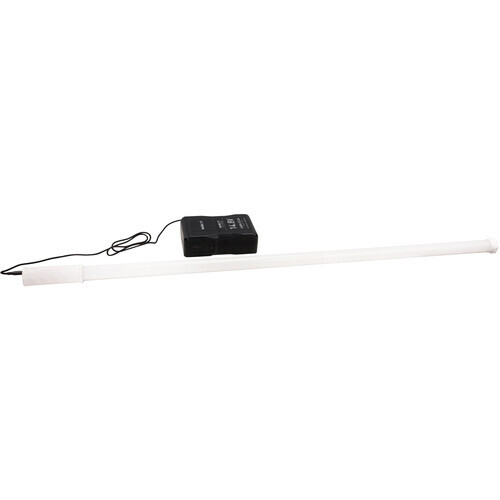

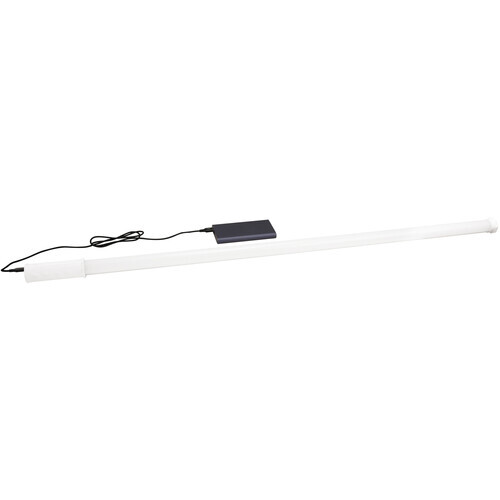

The built-in 3.7VDC, 2200 mAh rechargeable lithium-ion battery lasts for an hour at 100% brightness and 3.5 hours at 20%. A USB-C port allows external batteries to be used. The separately available Nanlite control bank supplies extra battery power, plus more control buttons and an LCD for greater control.

Light Fixture

Photometrics 2700K:
65 fc / 700 Lux at 1' / 0.3 m
30.5 fc / 328 Lux at 1.6' / 0.5 m
9.8 fc / 106 Lux at 3.3' / 1 m
2.8 fc / 30 Lux at 6.6' / 2 m
1.5 fc / 16 Lux at 9.8' / 3 m
3200K:
66.1 fc / 711 Lux at 1' / 0.3 m
31 fc / 334 Lux at 1.6' / 0.5 m
9.9 fc / 107 Lux at 3.3' / 1 m
2.8 fc / 30 Lux at 6.6' / 2 m
1.5 fc / 16 Lux at 9.8' / 3 m
5600K:
70.3 fc / 757 Lux at 1' / 0.3 m
33.6 fc / 362 Lux at 1.6' / 0.5 m
10.9 fc / 117 Lux at 3.3' / 1 m
3.1 fc / 33 Lux at 6.6' / 2 m
1.6 fc / 17 Lux at 9.8' / 3 m
6500K:
72.7 fc / 783 Lux at 1' / 0.3 m
34.5 fc / 371 Lux at 1.6' / 0.5 m
11.2 fc / 121 Lux at 3.3' / 1 m
3.2 fc / 34 Lux at 6.6' / 2 m
1.7 fc / 18 Lux at 9.8' / 3 m
7500K:
73.5 fc / 791 Lux at 1' / 0.3 m
35.2 fc / 379 Lux at 1.6' / 0.5 m
11.5 fc / 124 Lux at 3.3' / 1 m
3.3 fc / 35 Lux at 6.6' / 2 m
1.7 fc / 18 Lux at 9.8' / 3 m
Color Temperature 2700 to 7500K
Color Modes RGBWW
Color Accuracy Standard CRI 96
TLCI 97
Cooling System Passive
Dimming Yes
0 to 100% (Stepped)
Display None
Housing Material Plastic
Fixture Dimensions Overall: 1.5 x 1.5 x 39.4" / 3.9 x 3.9 x 100.2 cm
Fixture Weight 0.62 lb / 0.28 kg

Connectors

Battery Plate None
Power Input Connection USB Type-C

Mounting

Yoke Mount None
Fixture Mount 1/4"-20 Female

Remote Operation

Remote Control Type App, Bluetooth, DMX

Power

DC Input Power 5 VDC at 2 A
Power Source Integrated Battery, USB Bus Power
Max Power Consumption 8 W
Power Pass-Thru No

Internal Battery

Run Time 1 Hour at Full Power
3.5 Hours at Low Power

Cable

Cable Type USB Type-C to USB Type-A

* Specifications subject to change by the manufacturer without notice

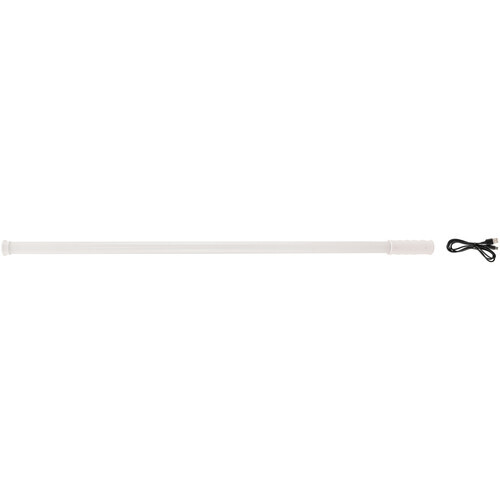

  • Nanlite Pavotube T8-7X LED tube
  • USB Type-C Cable
