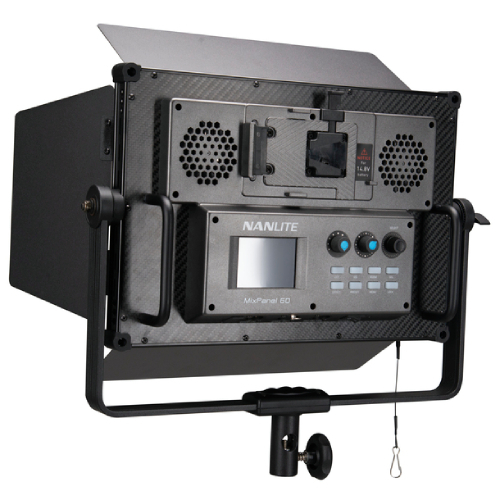

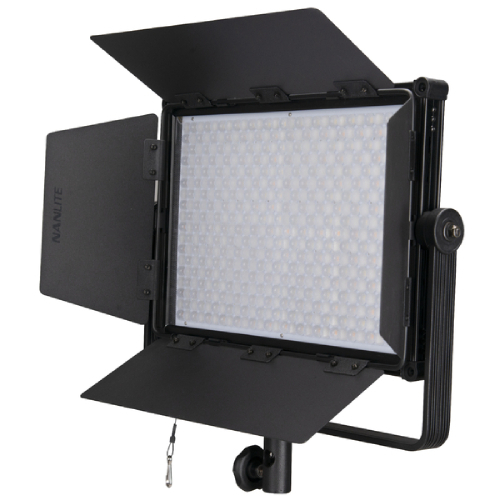

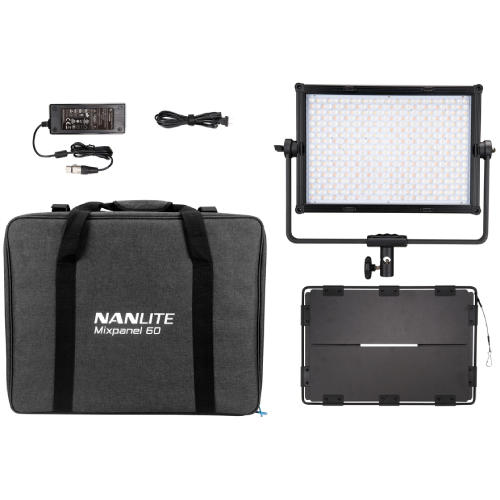

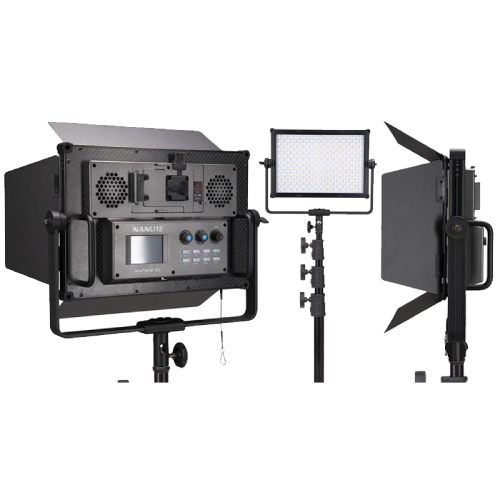

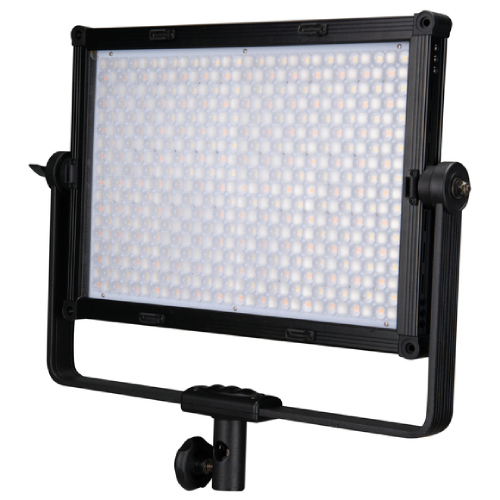

Nanlite Mixpanel 60 RGBWW 60W LED Panel

The Nanlite MixPanels seamlessly switch between a "traditional" multi-LED panel for hard light, a diffuse SMD LED panel for soft light, and a tuneable RGB panel for vibrant, creative effects-all accessible at the push of a button. Whether your project requires powerful lighting with extended throw, soft and flattering illumination for portraits and close-up work, or expressive coloured light to convey specific moods and emotions, creators can achieve it all with one versatile unit, eliminating the need for additional accessories.

Ultra-Bright Output

When using the hard light fixture in normal mode, the MixPanel 60 emits 4,980 lux @1m @ 5600K. When shifted into boost mode, the output climbs even higher to 6600 lux. Plus, with dimming from 100% down to 1%, the MixPanel quickly adapts to any scene without adding ND filters or diffusion.

Colour Perfection

The brightness of a light is important, but without colour accuracy, a ton of time and money will be lost in post-production. Both MixPanels feature a CRI of 98, a TLCI of 95 plus Green/Magenta adjustment in CCT mode, allowing creators to shoot with confidence knowing the colour reproduction will be precise.

Intuitive User Interface

If there is one thing an RGBWW LED panel cannot be, it's cumbersome to use on set. The MixPanel's operating system has been developed from the ground up to be efficient and intuitive to use. The ability to save settings as presets makes your lighting consistent and repeatable.

Gel Emulation and Practical Effects

The MixPanel's gel emulation mode provides a selection of 43 gel presets in two light sources (3200K & 5600K) encompassing 5x CTOx 5x CTB, and 33x Calcolour. 9 pre-programmed and adjustable special effects make it possible to imitate lighting scenarios that can otherwise be tricky to recreate such as hue loop, CCT loop, flash, pulse, storm, siren, TV, paparazzi, and candle/fire.

Power Anywhere

Optimized for use in the studio or on location, MixPanels can run off either the included AC adapter or a standard 14.8V V-Mount battery (Not Included), so you can operate in any location regardless of power availability.

Size L/W/H 43.2 x 35.6 x 7.6cm
Weight 3.3kg
Colour Temp 2700-7500K
CRI 98
TLCI 95
Dimming 0-100%
Output 2700K:1m-4633lux/431fc, 2m-1291lux/120fc, 3m-605lux/56fc
  7500k:1m-5814lux/541fc, 2m-1653lux/154fc,3m-761ux/701fc
  RED:1m-1672lux/156fc, 2m-472lux/44fc, 3m-219lux/20fc
  GREEN:1m-3553lux/331fc, 2m-967lux/90fc, 3m-450ux/42fc
  BLUE:1m-650lux/60fc, 2m-180lux/17fc, 3m-83lux/8fc
Max Power Draw 60w
Battery Sony V-Mount 14.8V Battery (Not Included)
Battery Run Time at 100% Brightness (approx) 1.5hours (14.8V Sony V-Mount 100wh)
Mount Standard 5/8" Receiver
Gel Emulation 43 gel presets in two light sources (3200K & 5600K) encompassing 5x CTOx 5x CTB, and 33x Calcolour
Special Effects Hue loop, CCT loop, flash, pulse, storm, siren, TV screen, paparazzi, and candle/fire.
Green/Magenta Trim Adjustment Yes, in CCT Mode


* Specifications subject to change by the manufacturer without notice.

  • Nanlite Mixpanel 60 RGBWW 60W LED Panel
