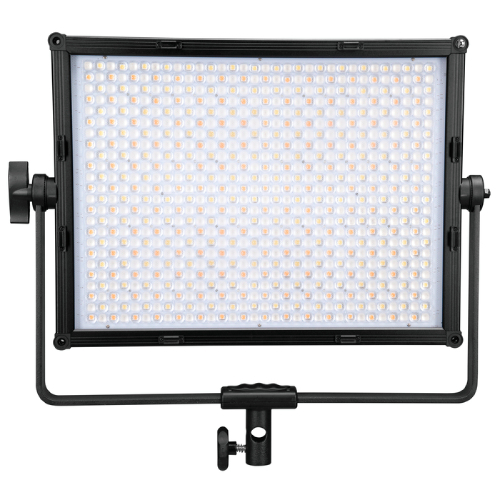

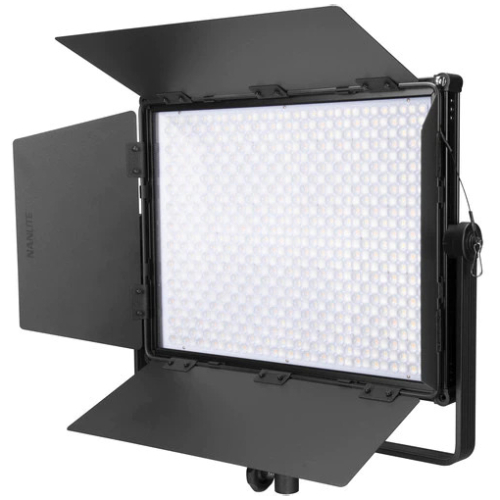

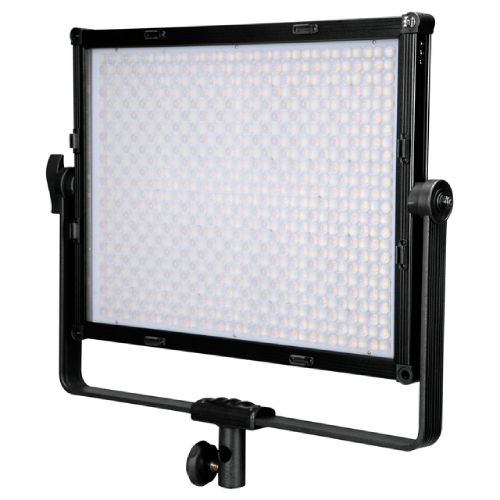

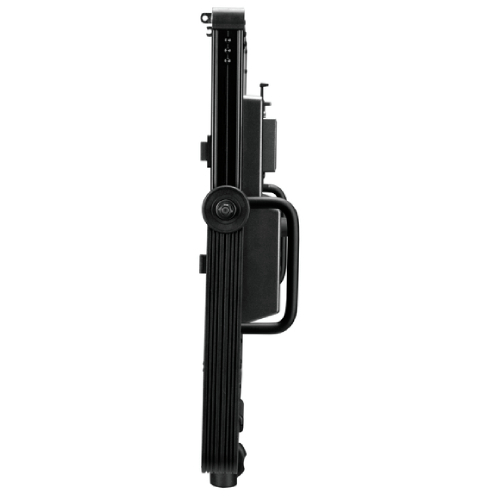

Nanlite Mixpanel 150 RGBWW 150W LED Panel

The Nanlite MixPanels offer unparalleled versatility with the ability to switch between three lighting modes effortlessly. Choose the "traditional" multi-LED panel for hard light, opt for the diffused SMD LED panel for soft, flattering illumination, or utilize the tuneable RGB panel for vibrant, creative effects-all at the push of a button. Whether your project demands precise throw and intensity, flattering portraits and close-up work, or expressive coloured lighting to evoke moods and emotions, creators can achieve it all with one unit, eliminating the need for additional accessories.

Ultra-Bright Output

When using the hard light fixture in normal mode, the MixPanel 150 emits 11,320 Lux@1m 5600K. When shifted into boost mode, the output climbs even higher to 14,950 Lux at 1m on the 150. Plus, with dimming from 100% down to 1%, the MixPanel quickly adapts to any scene without adding ND filters or diffusion.

Colour Perfection

The brightness of a light is important, but without colour accuracy, a ton of time and money will be lost in post-production. Both MixPanels feature a CRI of 98, a TLCI of 95 plus Green/Magenta adjustment in CCT mode, allowing creators to shoot with confidence knowing the colour reproduction will be precise.

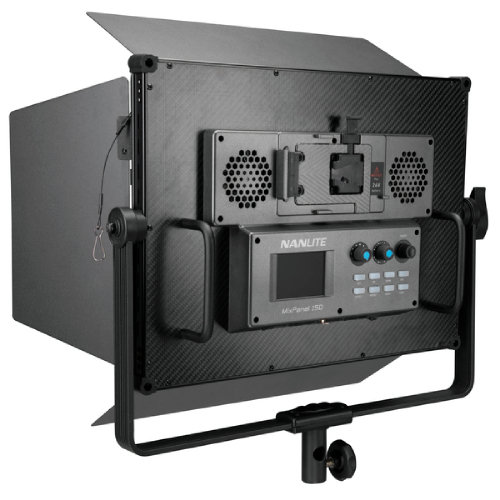

Intuitive User Interface

If there is one thing an RGBWW LED panel cannot be, it's cumbersome to use on set. The MixPanel's operating system has been developed from the ground up to be efficient and intuitive to use. The ability to save settings as presets makes your lighting consistent and repeatable.

Gel Emulation and Practical Effects

The MixPanel's gel emulation mode provides a selection of 43 gel presets in two light sources (3200K & 5600K) encompassing 5x CTOx 5x CTB, and 33x Calcolour. 9 pre-programmed and adjustable special effects make it possible to imitate lighting scenarios that can otherwise be tricky to recreate such as hue loop, CCT loop, flash, pulse, storm, siren, TV, paparazzi, and candle/fire.

Power Anywhere

Optimized for use in the studio or on location, MixPanels can run off either the included AC adapter, 14.8V V-mounts with the Mixpanel 14.8V to 26V V-Mount adaptor (available separately) or the new high powered 26V V-Mount battery (available separately), so you can operate in any location regardless of power availability.

Size L/W/H 48.2 x 8.2 x 41.5 cm
Weight 4.1kg
Colour Temp 2700-7500K
CRI 98
TLCI 95
Dimming 0-100%
Lumen Output 7500K 12144 LUMEN
  LUX @ 1M 5600K BOOST & SOFT LIGHT MODE: 2200 LUX
  LUX @ 1M 5600K BOOST & HARD LIGHT MODE: 14950 LUX
  LUX @ 1M 3200K BOOST & SOFT LIGHT MODE: 1941 LUX
  LUX @ 1M 3200K BOOST & HARD LIGHT MODE: 15040 LUX

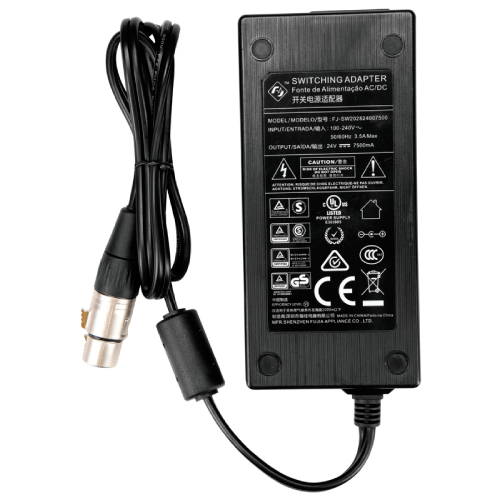

Power Source DC24V/7.5A Mains power adaptor
Max Power Draw 150w
Battery Run Time at 100% Brightness (approx) 1.3hours (26V Sony V-Mount 230wh)
Mount Standard 5/8" Receiver
Gel Emulation 43 gel presets in two light sources (3200K & 5600K) encompassing 5x CTOx 5x CTB, and 33x Calcolour
Special Effects Hue loop, CCT loop, flash, pulse, storm, siren, TV screen, paparazzi, and candle/fire
Green/Magenta Trim Adjustment Yes, in CCT Mode


* Specifications subject to change by the manufacturer without notice.

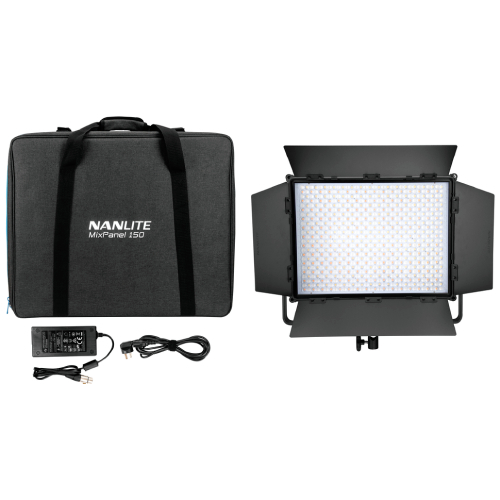

  • Nanlite Mixpanel 150 RGBWW 150W LED Panel
