Smooth and Precise Camera Control

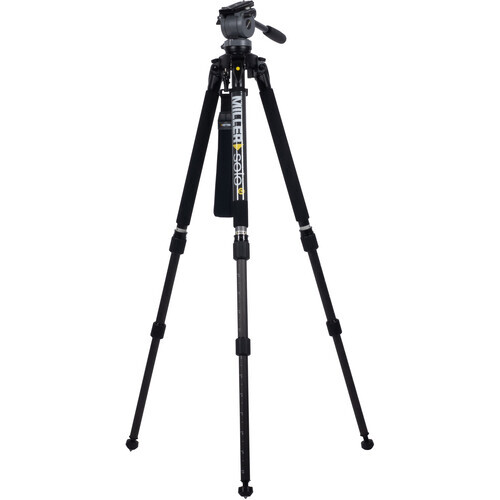

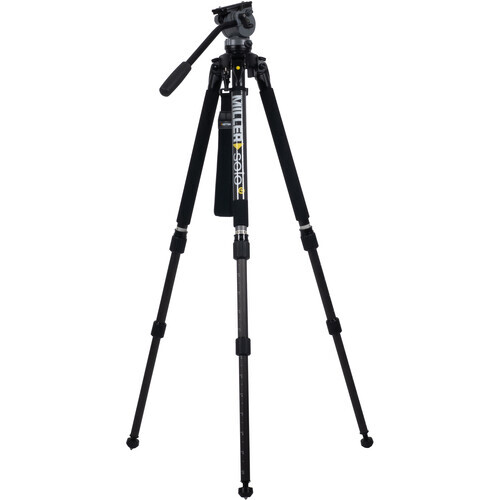

The Miller DS20 SOLO-Q 75 2-Stage Tripod is a lightweight and compact tripod system that provides smooth and accurate pan and tilt control for cameras and rigs up to 9.97 cm. It includes the DS-20 fluid head, carbon fibre legs, a carry strap and a tripod bag for storing and transporting your equipment.

The head features a sliding balance plate, independent pan and tilt locks, variable pan and tilt drag, a precision bubble level, and an integral 75mm ball for leveling. The included Solo carbon fiber legs feature two stages, providing a height range of 14.9 to 69.5", while selectable leg angle locks ensure rapid setup and excellent stability without a spreader. The 75mm bowl allows for quick leveling, optimum torsional rigidity, and long term durability.

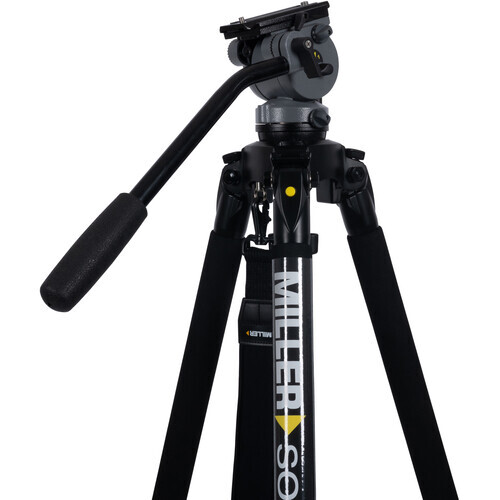

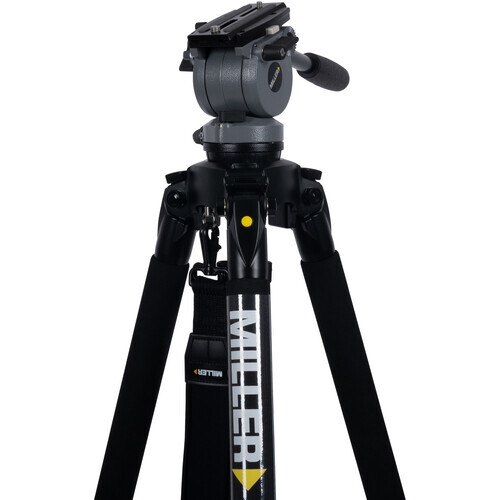

Miller DS-20 Fluid Head (75mm Ball Base)

The Miller DS-20 Fluid Head (75mm Ball Base) delivers the level of quality that is needed for professional ENG and corporate production. Features a dynamic fluid drag system providing consistent control across all temperature ranges and through a wide range of settings. It also offers an integrated counterbalance system combined with a sliding balance plate for a wide tilt angle, as well as a quick release and automatic locking system, for quick setup and disengagement of your camera.

Multi-Step Pan & Tilt Fluid Drag System

The DS-20 fluid head incorporates Miller's Dynamic Fluid Drag system ensuring smooth, consistent fluid drag control across all temperature ranges and through a wide range of light and heavy settings. By being independent of payload weight, the dynamic system ensures smooth "starts" and dead "stops" for precise framing without any backlash. The system is fully sealed within sub-assemblies for a leak-proof, low maintenance life.

Preset Counterbalancing

The DS-20 uses a special designed counterbalanced system, to neutralize the effect of payloads and their centers of gravity. The built-in preset counterbalance system combined with a 60mm sliding camera platform optimizes tilt control in the intended capacity range. Allowing a +90/-70° angle tilt without worrying that the camera will topple.

Quick Release Camera Platform

Fitted with a precision, quick release camera platform that incorporates a sliding balance plate for fine tune payload balancing. The self-engaging action of the camera plate ensures rapid camera attachment in the field, while the built-in safety lock guarantees camera safety during setup and pull-down.

Safe at any temperature

Pressure or temperature does not influence the damping system; it has an operating range from -40°F to +149°F, and works without friction. Shoot wherever you want, from torrid heat to cold climates.

• Built-in bubble for horizontal leveling
• Load capacity of 9.97 kg

Miller 681 Pan Bar Handle for Select Video Heads

This Miller Pan Bar Handle is compatible with the Miller DS5, DS10, DS20, and Miller Compass 23 fluid video heads. It connects and locks into either side of those heads with a clamp and bolt for right- or left-handed use. A rubberized handle provides a comfortable means to move its aluminum-alloy shaft, which measures 15.4".

This angled pan bar handle can rotate within its clamp, allowing a downward-pointing orientation for right or left-handed use.

Miller 1520 Solo DV Strap - for Miller Solo DV Tripods

The Miller 1520 Solo DV Strap is a padded tripod carry strap designed for the Miller Solo DV series tripods.

• 1.5 inch wide tripod carry strap
• 17 inch long shoulder pad

Compatible with;

• Miller Solo DV tripods

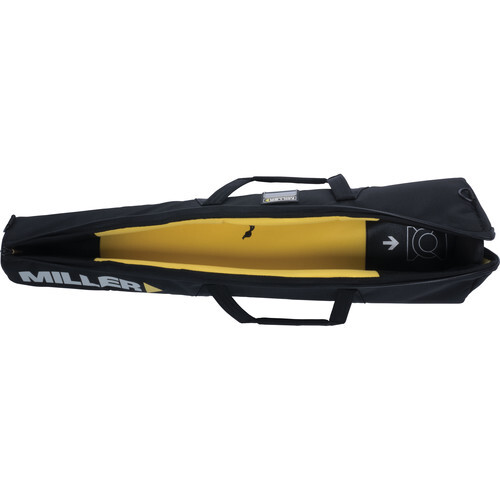

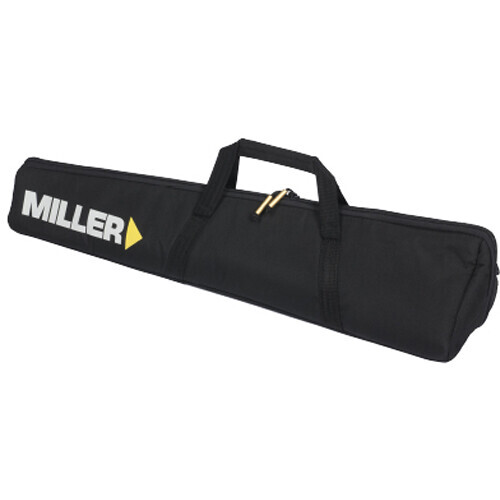

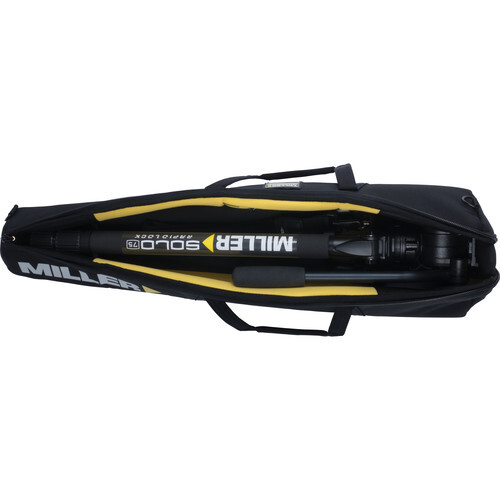

Miller Solo 75 2-Stage Bag (Black)

Store, transport, and protect your 75mm Solo tripod system or other gear with the black Miller Solo 75 2-Stage Bag. This sturdy case is constructed from nylon with foam padding. The tapered triangular shape promotes a secure fit, and the dual zippers and wide opening provide easy access. Carry the case with the dual magnetic strap handles or attach an optional, user-supplied shoulder strap to the D-links. Users will appreciate the external pocket and card holder.
