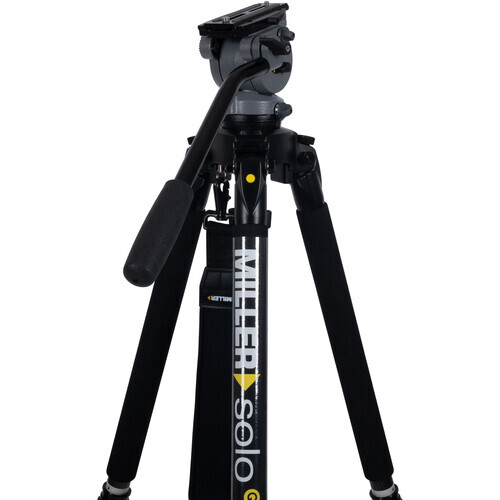

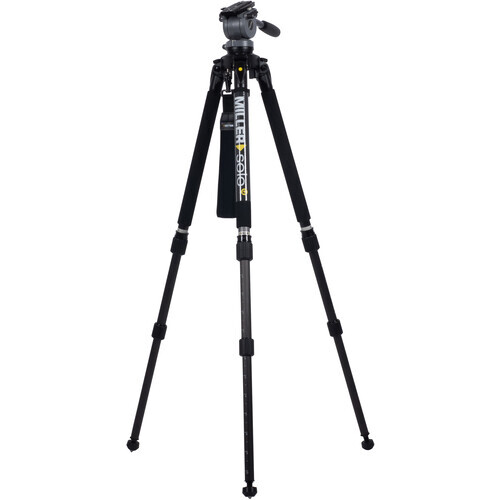

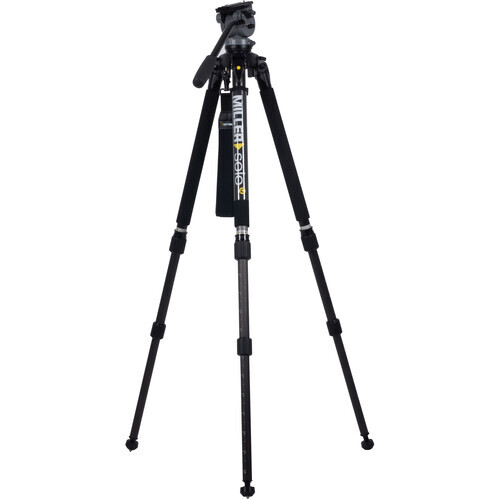

Miller DS10 SOLO-Q 75 2-Stage Carbon Fiber Tripod
SKU code: 49628
- DS-10 Fluid Head, 4.98 kg Payload
- SOLO DV 2-Stage Tripod, 176.53 cm Max Height
- 75mm Half Ball Leveling Base
- Variable Pan and Tilt Fluid Drag
- Independent Pan and Tilt Locks
- Soft Carry Case
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Miller CX8 Fluid Head with Toggle 2-Stage Alloy Tripod System
$4,795.00
1300 365 220
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Studio Lighting:
Storage:
Other:
Smooth and Precise Camera Control
The Miller DS10 SOLO-Q 75 2-Stage Tripod is a lightweight and compact tripod system, perfect for cameras and rigs weighing up to 4.98 kg. It offers smooth and precise pan and tilt control, with the DS-10 fluid head, carbon fibre legs, a carry strap and a tripod bag for storing and transporting all your gear.
The head features a sliding balance plate, independent pan and tilt locks, variable pan and tilt drag, a precision bubble level, and an integral 75mm ball for leveling. The included Solo carbon fiber legs feature two stages, providing a height range of 37.84 to 176.53 cm, while selectable leg angle locks ensure rapid setup and excellent stability without a spreader. The 75mm bowl allows for quick leveling, optimum torsional rigidity, and long term durability.

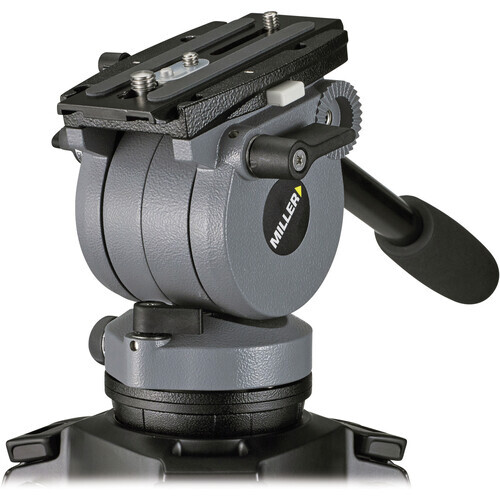

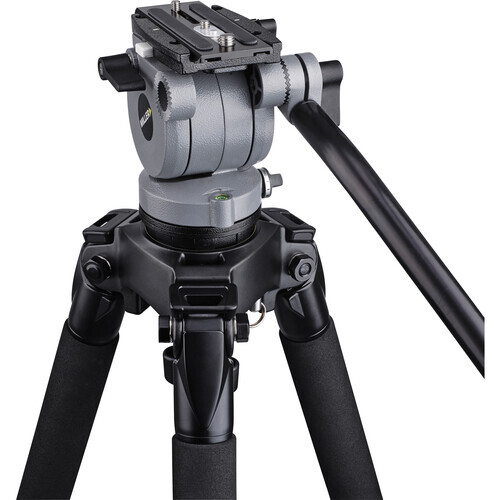

Miller DS-10 Fluid Head (75mm Ball Base)
The Miller DS-10 fluid head delivers the level of quality only found in more expensive (high-priced) heads, for today's compact digital camcorder shooters. Features a multi-step fluid drag system, an integrated counterbalance system combined with a sliding balance plate and a quick release and automatic locking system.
Multi-Step Pan & Tilt Fluid Drag System
The DS-10 fluid head incorporates Miller's multi-step Fluid Drag system ensuring smooth, consistent fluid drag control across all temperature ranges and through a wide range of light and heavy settings.
Preset Counterbalancing
The DS-10 uses a special designed counterbalanced system, to neutralize the effect of payloads and their centers of gravity.
Quick Release Camera Platform
This device is fitted with a precision, quick release camera platform that incorporates a sliding balance plate for fine tune payload balancing.
Safe at Any Temperature
Pressure or temperature does not influence the damping system, it has an operating range from -40°F to +149°F, and works without friction.
Miller 681 Pan Bar Handle for Select Video Heads
This Miller Pan Bar Handle is compatible with the Miller DS5, DS10, DS20, and Miller Compass 23 fluid video heads. It connects and locks into either side of those heads with a clamp and bolt for right- or left-handed use. A rubberized handle provides a comfortable means to move its aluminum-alloy shaft, which measures 15.4".
This angled pan bar handle can rotate within its clamp, allowing a downward-pointing orientation for right or left-handed use.
Miller 1520 Solo DV Strap - for Miller Solo DV Tripods The Miller 1520 Solo DV Strap is a padded tripod carry strap designed for the Miller Solo DV series tripods.
- 1.5 inch wide tripod carry strap
- 17 inch long shoulder pad
Compatible with;
- Miller Solo DV tripods

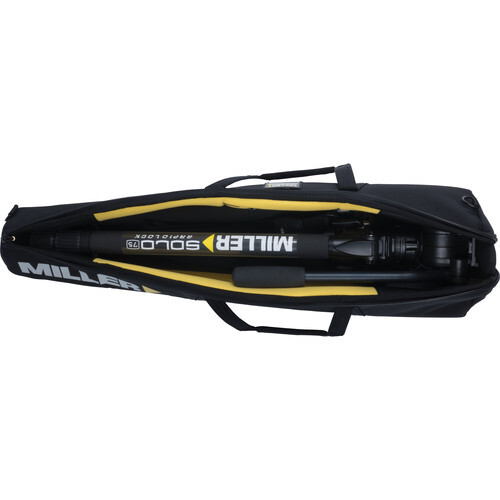

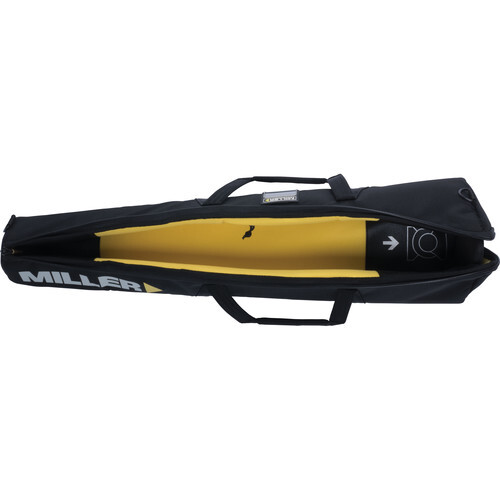

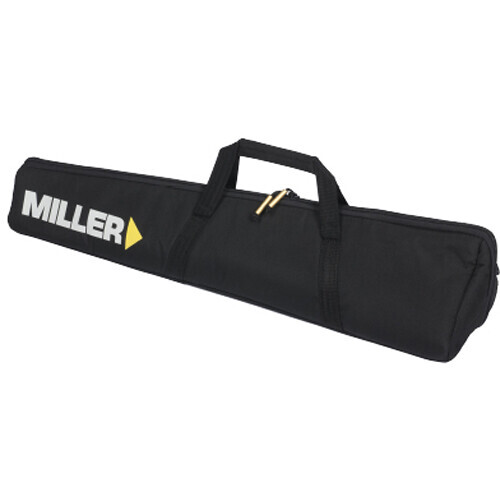

Miller Solo 75 2-Stage Bag (Black)
Store, transport, and protect your 75mm Solo tripod system or other gear with the black Miller Solo 75 2-Stage Bag. This sturdy case is constructed from nylon with foam padding. The tapered triangular shape promotes a secure fit, and the dual zippers and wide opening provide easy access. Carry the case with the dual magnetic strap handles or attach an optional, user-supplied shoulder strap to the D-links. Users will appreciate the external pocket and card holder.
MILLER DS-10 FLUID HEAD (75MM BALL BASE) | |
CAMERA PLATE | |
Camera Plate Features | Sliding Balance Plate, Quick Release |
Camera Mounting Screw | 1 x 1/4"-20 Male |
1 x 3/8"-16 Male | |
HEAD | |
Base Mount | 75 mm Half Ball |
Counter Balance | Incremental 2-Step (10 lb / ) |
Bubble Level | 1 |
PAN & TILT | |
Drag Control | Continuous |
Vertical Tilt | +90° to -75° |
Panning Range | 360° |
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
GENERAL | |
Load Capacity | 11 lb / 5 kg |
Operating Temperature | -40 to 149°F / -40 to 65°C |
Weight | 1.5 kg |
MILLER 681 PAN BAR HANDLE FOR SELECT VIDEO HEADS | |
GENERAL | |
Compatibility | Miller DS5 Video Head |
Miller DS10 Video Head | |
Miller DS20 Video Head | |
Miller Compass 23 Video Head | |
Material | Aluminium alloy with a rubberized handle |
Length | 39.1 cm |
Weight | 0.3 kg |
MILLER 1520 SOLO DV STRAP - FOR MILLER SOLO DV TRIPODS | |
GENERAL | |
Attachment Method | Spring-Loaded Clasp |
Shoulder Strap Length | 78.7 to 109.2 cm |
Strap Width | 3.8 cm |
Material | Nylon |
MILLER SOLO 75 2-STAGE BAG (BLACK) | |
GENERAL | |
Material | Nylon with foam padding |
Type of Closure | Zipper |
Padded | Yes |
Carrying/Transport Options | Dual, top strap handles |
Interior Dimensions | 16.5 x 85.0 cm |
Weight | 0.5 kg |
* Specifications subject to change by the manufacturer without notice
- Miller DS-10 Fluid Head (75mm Ball Base)
- 1x Pan Bar (#686)
- Miller 490 Camera Mounting Plate with 1/4"-20 Screw and Locating Pin - for DS-10 Fluid Head
- Miller 681 Pan Bar Handle for Select Video Heads
- Miller 1520 Solo DV Strap - for Miller Solo DV Tripods
- Miller Solo 75 2-Stage Bag (Black)
- 2-Stage Carbon Fiber Tripod Legs
