Manfrotto MVT502AM Aluminium Twin Leg Tripod + MVH502A Fluid Head
SKU code: 35714
Australian Owned, Online Since 2001
Local Contact Centre
Industry Experts, Knowledgeable Team
Australia Wide Delivery
From Beginner to Pro, Affordable Gear
Secure Payment Methods
Key Features:
- 156cm Maximum Height
- 7kg Maximum Safety Payload
- MVH502A Pro Fluid Head with Quick Release Sliding Plate
- 75mm Half Ball and Counterbalance System
- 0 to Maximum Level Adjustable Drag
- Aluminium Twin-Leg Tripod Design
- Mid-Level Spreader and Leg Locking Collars
- Padded Carry Bag Included
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Tripods & Monopods:
Studio Lighting:
Other:

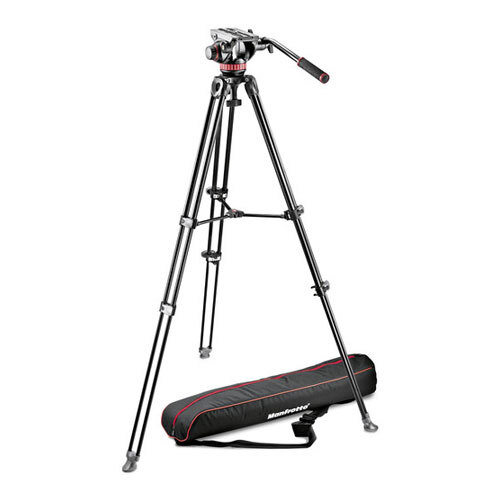

The Manfrotto MVT502AM Aluminium Twin Leg Tripod + MVH502A Headkit offers versatile pan and tilt options to shoot breathtaking, smooth video with a camcorder orDSLR. Along with the twin-leg tripod, the kit includes a mid-level spreader, a professional video fluid head, and a carry bag for easy transportation making it acomplete system for professional photography.
Pro Video Head with Fluid Drag System

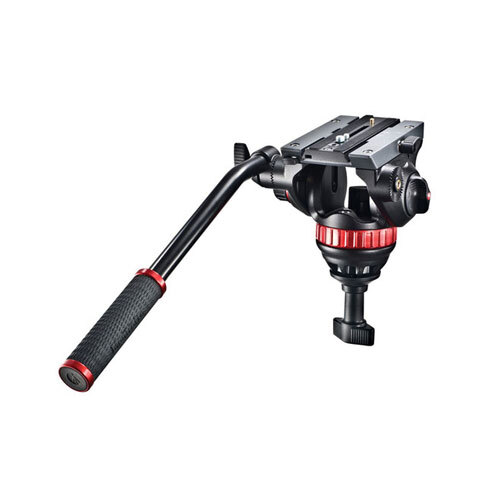

The MVH502A Pro Fluid Video Head provides a tilt range of -80° / +90° and 360° panning, both with independent locks for maximum control. Drag is also selectable in a continuous range for both tilt and pan movements and can be adjusted from 0 to maximum level for a custom feel.
75mm Half Ball and Counterbalance system
A 75mm half ball provides fast, precise levelling and movement for a variety of cameras and gear, while the counterbalance system supports up to 4kg, compensating for any uneven load distribution due to tilt or larger accessories.
Supports Maximum Payload up to 7 Kg
The fluid head can support a maximum payload of up to 7kg, ideal for a wide range of cameras and accessories.
Quick Release Plate
The MVH502A Video Head features a sliding quick release plate with 1/4 inch and 3/8 inch screws for easy, secure attachment to your camera. The 14cm sliding plate provides added balance and better weight distribution for longer lenses or camcorders.
Telescopic Twin-Leg Tripod

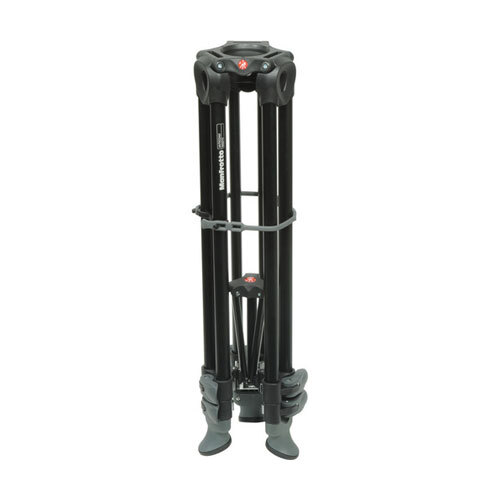

The Manfrotto MVT502AM aluminium tripod has a 2-stage, telescopic twin-leg design,intended to support DSLRs and lightweight video cameras. Going from 70.5cm to a maximum height of 156cm, the tripod provides a great height range to suit any situation.
Mid-Level Spreader and Leg Locking Collars
Quick release leg locking collars on each of the tripod’s legs make setting up and dismantling your rig fast and easy. The mid-level spreader gives the tripod increased stability while also further reducing set-up time.
Compatible with Half-Ball Video Heads
The tripod has a half-ball 75mm bowl and a 60mm adapter, making it compatible with both 75mm and 60mm half-ball video heads for even more versatility.
High Grip Rubber Feet and Carrying bag
Rubber feet at the base of the tripod protect it from damage and provide a solid grip on surfaces. The included carry bag fits the tripod snuggly between padded protective layers and allows it to be transported easily and safely.
Manfrotto MVT502AM Tripod + MVH502A Fluid Video Head
Weight |
3.8 kg |
Collection/Series |
502 |
Safety Payload Weight |
7 kg |
Minimum Height |
70.5 cm |
Maximum Height |
156 cm |
Closed Length |
75 cm |
Manfrotto MVT502AM Aluminium Twin Leg Tripod
Weight |
1.92 kg |
Material |
Aluminium |
Safety Payload Weight |
15 kg |
Minimum Height |
57 cm |
Maximum Height |
143.5 cm |
Closed Length |
61.5 cm |
Spreader |
Mid-level - fixed arm length |
Ball Flat |
75 Ball |
Leg Type |
Twin |
Leg Lock Type |
Flip Lock |
Carrying Bag Included |
None |
Centre Column |
No centre column |
Colour |
Black |
Easy Link |
No |
Leg Angles |
19° |
Leg Sections |
3 |
Legs Tube Diameter |
15.2, 18.5, 21.7 mm |
Maximum Working Temperature |
60 C |
Minimum Working Temperature |
-30 C |
MVH502A Pro Fluid Video Head
Weight |
1.8 kg |
Collection/Series |
502 |
Material |
Aluminium |
Safety Payload |
7 kg |
Counterbalanced Weight |
4 kg |
Tilt Drag |
Continuously adjustable from 0 to max level |
Pan Drag |
Continuously adjustable from 0 to max level |
Plate Type |
504PLONG |
Base Type |
75 Ball |
Centre of gravity |
55 mm |
Front Tilt |
-80° / +90° |
Bubble Spirit Level (No.) |
1 |
Accessory Compatibility |
502HLV; 509HLV |
Attachment |
1/4-inch screw, 3/8-inch screw |
Certifications |
None |
Colour |
Black |
Easy Link |
Yes |
Head Type |
Video/Fluid Head |
Maximum Working Temperature |
60 C |
Minimum Working Temperature |
-20 C |
Pan Bar Included |
Yes |
Panoramic Rotation |
360 |
Quick Release |
Yes |
Working Height |
15 cm |
* Specifications subject to change by the manufacturer without notice
