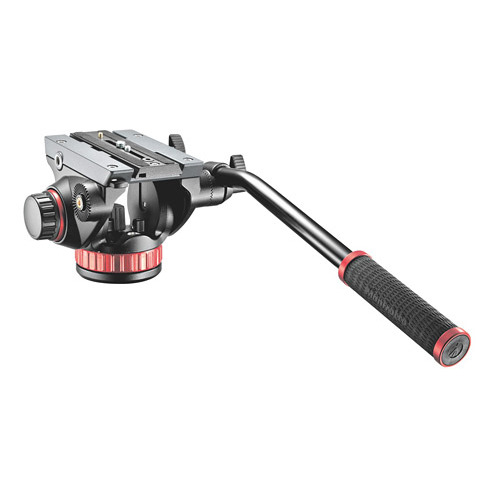

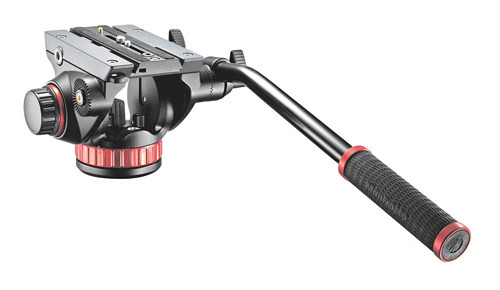

Manfrotto MVH502AH Pro Video Head - Flat Base
SKU code: 21630
Australian Owned, Online Since 2001
Local Contact Centre
Industry Experts, Knowledgeable Team
Australia Wide Delivery
From Beginner to Pro, Affordable Gear
Secure Payment Methods
Key Features:
- Load Capacity of 10kg
- Flat Base for HDSLR Cameras
- Fluid Drag System for Smooth Movement
- Sliding Plate for Better Camera Balance
- Counterbalance for Fast Head Rotation
- 360ø Pan and -80ø/+90ø Tilt
- Quick-Release Button
- Pan Bar provides Steady Grip
The Manfrotto MVH502AH Pro Video Head is designed to deliver outstanding functionality when used with the latest camcorders and HDSLR cameras with medium to long lenses attached. With a maximum payload of 10kg, the 502 is entirely constructed from aluminium, providing superb rigidity and safety whilst shooting. Its variable Fluid Drag System (FDS) with adjustable cartridges provides exceptionally smooth and accurate control over pan and tilt movements. A longer sliding plate ensures better camera balance, whilst a wider cross-section makes the head ideally suited to HDSLR cameras.
The Counterbalance System (CBS) delivers fast and easy head rotation, meaning more control regardless of the weight distribution of the camera. Its new quick release button is now more accessible and the pan bar can be connected to either the left or ride side of the head for a steady, comfortable grip no matter which hand you prefer to use. With a flat base and 3/8” tripod mount the Manfrotto MVH502AH is perfect for mounting to photo tripods.
† This Manfrotto product comes with a 2 year warranty as standard. But don't forget to register it at www.Manfrotto.com for an extra 8 years limited warranty! Click here for registration and terms & conditions.
Model |
Manfrotto MVH502AH Pro Video Head |
attaches by. |
1/4" and 3/8" attachment type |
attachment |
3/8" female thread attachment type |
balance control |
one fix spring for 4kg camera weight |
bubble spirit level (no.) |
1 number |
Color |
black colour |
front tilt |
-80° / +90° tilt range |
independent pan lock |
yes |
independent tilt lock |
yes |
material |
aluminium |
maximum working temperature |
+60 C° |
minimum working temperature |
-20 C° |
pan bar positions |
2 number |
pan bars included (no.) |
1 number |
pan drag |
continuously adjustable from 0 to max level |
panoramic rotation |
360 degrees |
plate type |
504PLONG |
quick release |
yes |
secondary safety system |
yes |
sliding travel of plate |
83.0 mm |
spring loaded counter balance |
yes |
tilt drag |
continuously adjustable from 0 to max level |
load capacity |
10 kg |
weight |
1.6 kg |
working height |
13.0 cm |
* Specifications subject to change by the manufacturer without notice
