Manfrotto 290 Dual Tripod 3 + MH804-3W - 3 Way Head - Ex Demo
SKU code: 49815
Australian Owned, Online Since 2001
Local Contact Centre
Industry Experts, Knowledgeable Team
Australia Wide Delivery
From Beginner to Pro, Affordable Gear
Secure Payment Methods
Key Features:
- Load Capacity: 4.08 kg
- Max Height: 175.51 cm
- Min Height: 5.58 cm

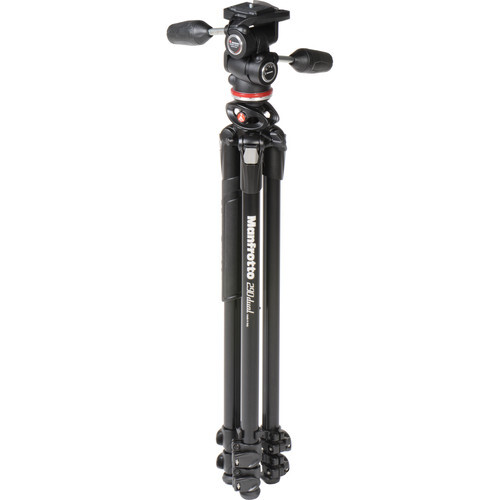

- Folded Length: 73.91 cm
- Leg Sections: 3
- Weight: 2.58 kg

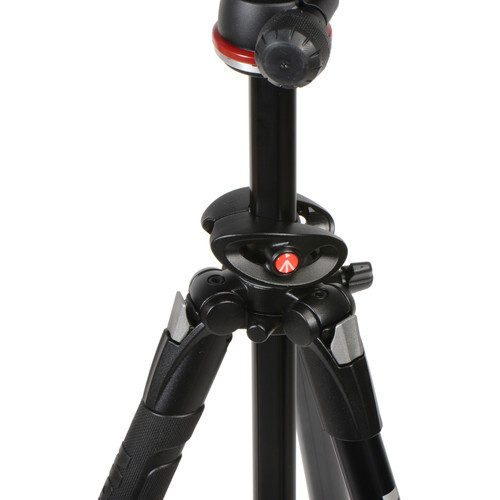

- 90° Center Column
- Tension-Adjustable Flip Locks
- Rubber Leg Grip
- RC2 Quick Release System
You May Also Like
The Essentials:
Bags, Cases & Straps:
Tripods & Monopods:
Studio Lighting:
Other:

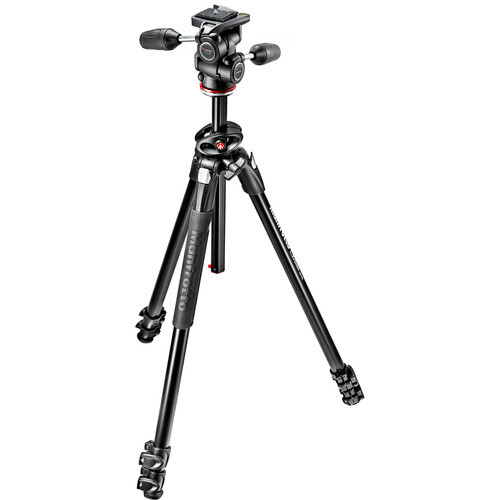

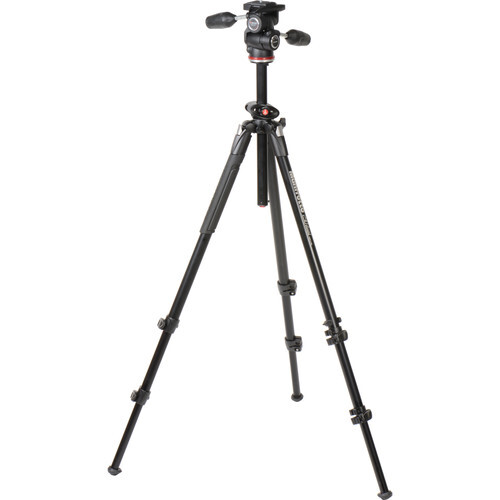

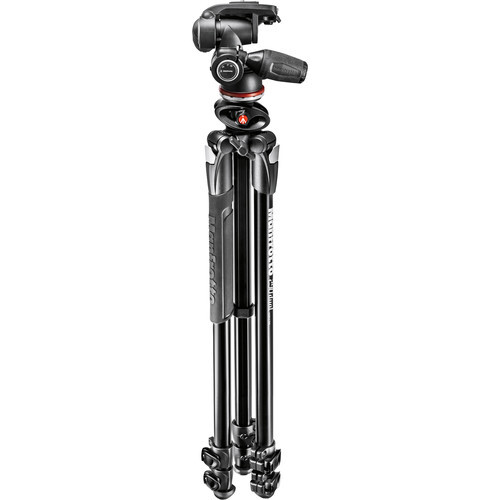

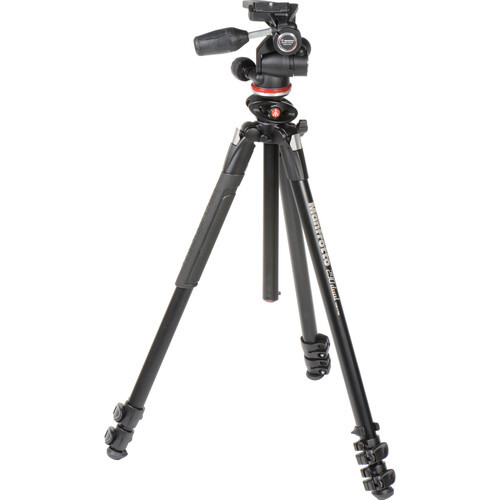

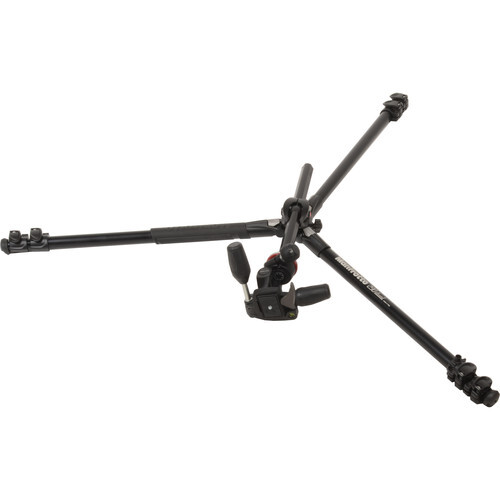

The Manfrotto MK290DUA3-3WUS 290 Dual Aluminum Tripod with 3-Way Pan/Tilt Head has a 90° centre column that is ideal for tabletop, low-angle, or macro photography. It can support up to 4.08 kg and extends from 5.58 cm above the ground to 175.26 cm high. (The tripod can support up to 4.98 kg and the head up to 9.97 kg. They can support up to 4.08 kg camera loads when used together. This includes the nearly 0.90 kg weight of the head itself.)

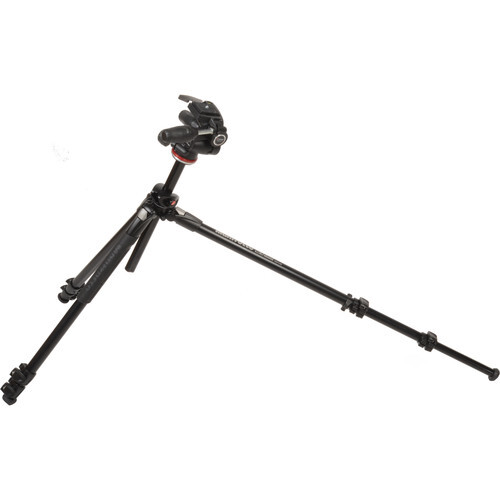

The three-section legs have tension-adjustable flip locks to individually adjust each leg's height. Four locking leg angles enable you to place the tripod in a variety of positions. A rubber grip on one of the legs aids in carrying the tripod, and rubber feet keep it stable on slippery surfaces.
The included 804 three-way pan/tilt head features retractable handles, so the overall size is decreased when its not in use. A built-in spring assists with the tilting motion of the head by compensating for heavier lenses and cameras with off-center loads. A 200LT-PL quick release plate is included for quickly attaching and removing your camera from the head.
Manfrotto MT290DUA3US 290 Dual Aluminum Tripod
The Manfrotto MT290DUA3US 290 Dual Aluminum Tripod features a 90° center column for shooting tabletop, low-angle, or macro photography. It extends from just 6.09 cm above the ground to 164.84 cm high. The tripod weighs 1.81 kg and can hold up to 4.98 kg worth of gear. Its 3-sections legs have tension-adjustable flip locks to individually adjust each leg's height. Four locking leg angles enable you to place the tripod in a variety of positions. A rubber grip on one of the legs aids in carrying the tripod, and rubber feet keep it stable on slippery surfaces.

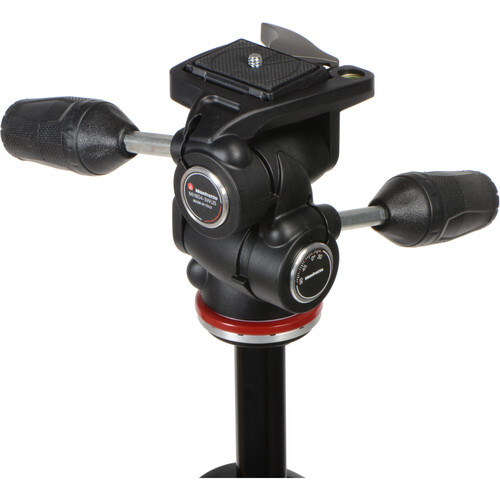

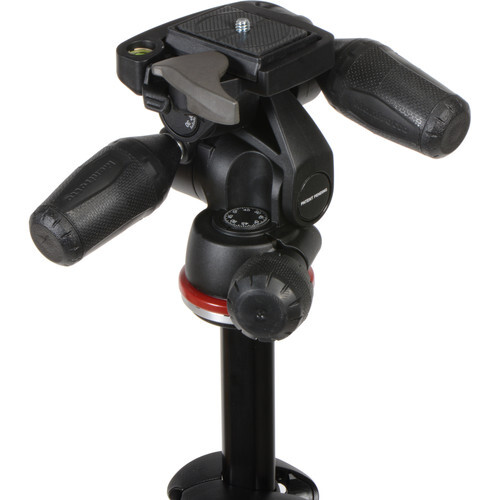

Manfrotto MH804 3-Way, Pan-and-Tilt Head with 200LT-PL Quick Release Plate

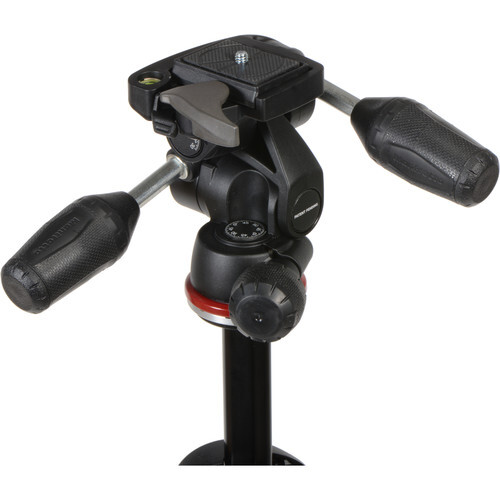

This MH804 3-Way, Pan-and-Tilt Head from Manfrotto has a load capacity of 9.97 kg and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC2 quick release cam lock and a 200LT-PL Quick Release Plate. RC2 compatible quick release plates such as the 200LT-PL can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be quickly reattached. The cam lock also features a safety catch to prevent the 200LT-PL, or another compatible quick release plate from accidentally disconnecting.
Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate before securing it to the pan-and-tilt head. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other, have dedicated control handles, and can be locked into place. In addition to integrating the ability to individually lock the movements by twisting each corresponding handle's rubberized grip, the telescoping control handles for both tilt functions can also be retracted while the head is not in use for more convenient storage or transport.
To promote fast, repeatable, and accurate device positioning, this MH804 3-Way, Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility. For heavier loads, built-in counterbalance springs help ensure smooth as well as gradual backwards and forwards tilt movements.
MH804 3-Way, Pan-and-Tilt Head
- 9.97 kg load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation
- Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other, have dedicated control handles, and can be locked into place
- Telescoping control handles for both tilt functions can be retracted for more convenient storage or transport
- Dedicated angle scales for each movement that are designed for easy visibility promote fast, repeatable, and accurate device positioning
- Built-in counterbalance springs help ensure smooth as well as gradual backwards and forwards tilt movements for heavier loads
- Integrated, RC2 quick release cam lock
- Built-in bubble level
- Durable and lightweight polymer and fiberglass construction
200LT-PL Quick Release Plate
- Compatible with Manfrotto RC2 quick release cam lock
- Measures 4.31 x 5.33 x 1.01 cm and has a rubberized, non-slip surface
- 1/4"-20 mount
- Durable and lightweight polymer and fiberglass construction
Manfrotto MT290DUA3US 290 Dual Aluminum Tripod | |
Load Capacity | 5 kg |
Head Mount Type | 3/8"-16 Male |
Maximum Working Height | 164.8 cm |
Max Height without Center Column | 138.9 cm |
Minimum Working Height | 6.1 cm |
Closed Length | 62.7 cm |
Materials | Aluminum Alloy |
LEGS | |
Leg Lock Type | Flip Lock |
Leg Positions | 4 Positions |
Independent Leg Spread | Yes |
Leg Sections | 3 |
Leg Diameter | 1" / 25.4 mm |
CENTER COLUMN | |
Center Column Sections | 1 |
Center Column Extension Type | Rapid |
Lateral / 90-Degree Center Column | Yes |
Manfrotto MH804 3-Way, Pan-And-Tilt Head With 200LT-PL Quick Release Plate | |
HEAD | |
Head Type | Pan & Tilt Head |
Base Mount | 3/8"-16 Female |
Camera Mounting Screw | 1/4"-20 Male |
Quick Release Plate Type | RC2 |
Number of Bubble Levels | 1 |
PAN & TILT RANGE | |
Lateral Tilt | -90° to +30° |
Vertical Tilt | +90° to -30° |
Panning Range | 360° |
GENERAL | |
Load Capacity | 10 kg |
Weight | 0.75 kg |
* Specifications subject to change by the manufacturer without notice |
Manfrotto MT290DUA3US 290 Dual Aluminum Tripod
Manfrotto MH804 3-Way, Pan-and-Tilt Head with 200LT-PL Quick Release Plate
- Manfrotto 200LT-PL Quick Release Plate
