Manfrotto 143 Magic Arm Kit
SKU code: 47380
Australian Owned, Online Since 2001
Local Contact Centre
Industry Experts, Knowledgeable Team
Australia Wide Delivery
From Beginner to Pro, Affordable Gear
Secure Payment Methods
Key Features:
- 1 x Magic Arm
- 1 x Camera Platform
- 1 x Super Clamp
- 1 x Backlite Base
You May Also Like
The Essentials:
Bags, Cases & Straps:
Tripods & Monopods:
Cleaning & Maintenance:
Viewfinder & LCD:
Studio Lighting:
Storage:
Other:

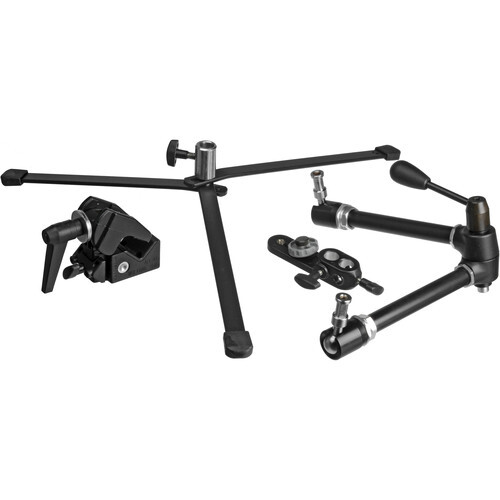

Secure Camera and Light Fixture Mount
The Manfrotto 143 Magic Arm Kit is the perfect tool for securely holding a camera or light fixture in place in a variety of situations. The kit includes the Magic Arm, an elbow arm with sure locking lever control at the pivot. The removable camera mount pans and locks, and has a standard 1/4"-20 thread mount. Additionally, the mount can accept any light fixture up to 2.99 kg that has a baby (5/8") receptor.

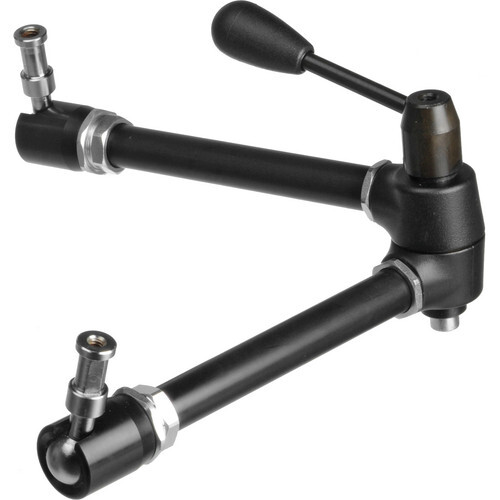

Manfrotto 143N Magic Arm without Camera Bracket
The Manfrotto 143N Magic Arm without Camera Bracket is designed to hold a light fixture in place, in a variety of situations. It is an elbow arm, with sure locking lever control at the pivot. It will accept any light fixture up to 2.99 kg that has a baby (5/8") receptor.
- The Magic Arm is modular - Stand it on the floor or a table with an optional Backlite base (3095).
- The Magic Arm is modular - Lock it into an optional Super (2915), or Maffer Clamp, on a pipe or shelf from 1/2 - 2" in diameter or thickness.
- The Magic Arm is modular - Use it to mount a camera with the optional camera bracket (143BKT), or order #2930 which includes the mount.

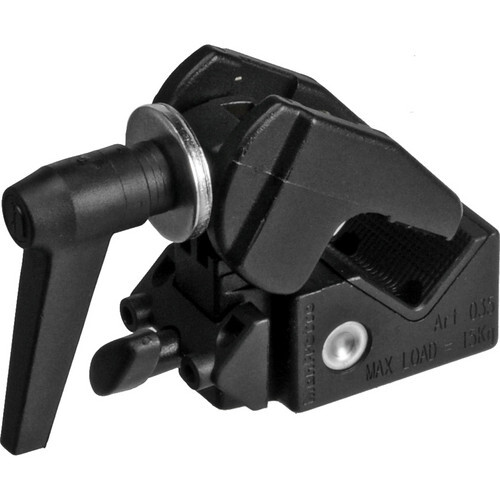

Manfrotto 035 Super Clamp without Stud
The Manfrotto 2915 Super Clamp is made of lightweight cast alloy. The Super Clamp is a very versatile tool and it holds just about anything: cameras, lights, umbrellas, hooks, shelves, plate glass, cross bars, and even other Super Clamps. In turn, the Super Clamp can be securely mounted on any tube from 1.27 to 5.33 cm. An attached wedge can be removed and placed in the jaw for flat surfaces. A built-in socket allows the use of over 30 attachments to hold anything from backgrounds to lighting fixtures.

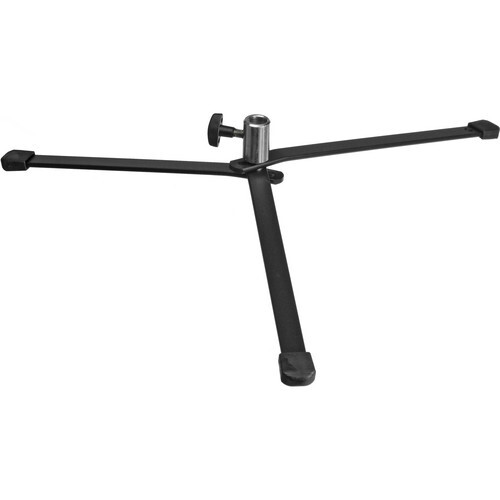

Manfrotto 003 Backlight Stand Base with Spigot (Black, 8.89 cm)
This Manfrotto 003 Backlight Stand Base with Spigot allows you to mount a lighting fixture close to the floor or table with its 8.89 cm high steel stand base. This is a base and double-ended spigot only.
Quick Setup
- Sets up easily in a matter of seconds
- Folds flat
Very Stable
- Engineered to be stable under recommended loads

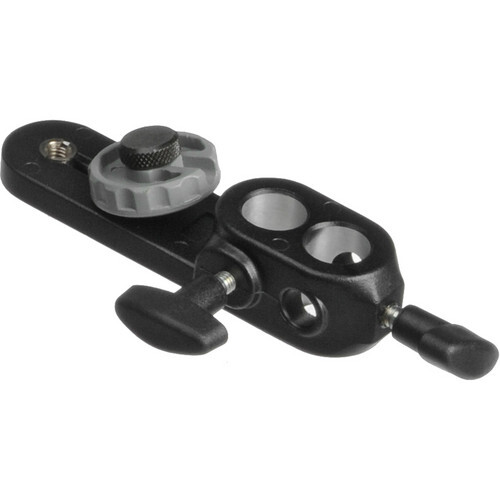

Manfrotto 143BKT Camera Platform for Magic Arm
The Manfrotto 143BKT Camera Platform is a replacement camera platform for the Magic Arm. It has a standard 1/4-20 inch thread mount for a small camera.
MANFROTTO 143N MAGIC ARM WITHOUT CAMERA BRACKET | |
Load Capacity | 3 kg |
Length | 50.8 cm |
Weight | 1 kg |
MANFROTTO 035 SUPER CLAMP WITHOUT STUD | |
Clamp Type | Jaw |
Jaw Shape | Round |
Load Capacity | 15 kg |
MOUNTING | |
Mounting | Accessory Mount: 1 x 5/8" Receiver |
Clamping Range | 1.3 to 5.3 cm |
GENERAL | |
Weight | 0.4 kg |
MANFROTTO 003 BACKLIGHT STAND BASE WITH SPIGOT (BLACK, 3.5") | |
Stand Type | 1 x Backlight Stand |
Maximum Working Height | 8.9 cm |
Minimum Working Height | 8.9 cm |
Load Capacity | 15 kg |
Closed Length | 45.7 cm |
MOUNTING | |
Stand/Column Top Mount | 5/8" Receiver |
Included Adapter | 1 x 5/8" Stud with Reversible 1/4"-20 & 3/8"-16 Male |
GENERAL | |
Footprint Diameter | 59.9 cm |
Weight | 1 kg |
* Specifications subject to change by the manufacturer without notice
- Manfrotto 143 Magic Arm Kit
- Manfrotto 035 Super Clamp without Stud
- Flat Surface Wedge
- Manfrotto 003 Backlight Stand Base with Spigot (Black, 3.5")
- Manfrotto 013 Double-ended Spigot
- Manfrotto 143BKT Camera Platform for Magic Arm
