Laowa Nanomorph 35mm T2.4 1.5X S35 (Silver) - (Cine) Arri PL (Default) + EF

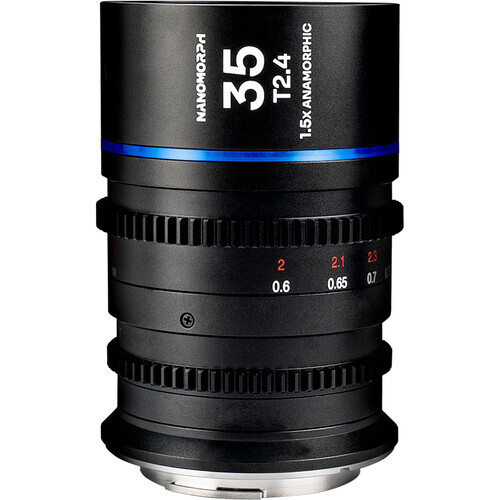

The Laowa Nanomorph 35mm T2.4 1.5x S35 Anamorphic Lens is a sleek, compact anamorphic lens designed for high-definition video with a 1.5x anamorphic squeeze on S35 sensor cameras. It features a 35mm focal length, a PL lens mount with an included EF-mount bayonet option, and an aperture range from T2.4 to T22 for a deep depth of field. The 13 iris blades produce a shallow depth of field and beautifully soft bokeh.

The prime lens has a very short minimum focus distance of 23.6" and offers anamorphic qualities such as high contrast, silver colour lens flares, and a 57.5° horizontal field of view. Other features include measurement markings in feet and meters, 0.8 MOD cine gears on focus and aperture rings, and a 77mm front filter thread. The lens comes default with an ARRI PL lens mount, and a Canon EF bayonet mount is included for compatibility with a wide range of cameras.

Constant 1.5x Squeeze Ratio

A 1.5x squeeze ratio is a perfect balance between the size and anamorphic intensity. With a 1.5x squeeze ratio, you will have a 2.66:1 on a 16:9 sensor after de-squeeze. There is also room for you to crop into a 2.4:1 widescreen ratio.

Artistic Oval Bokeh

A 1.5x squeeze ratio also renders oval bokeh that gives an artistic touch to the image. It also creates a blurry and creamy background that pops out the subject.

Silver Anamorphic Flare Colour

Compared to the more common blue flare, the silver flare is a neutral-coloured flare that provides more control over the flare colour. Its colour changes according to the light source, and it can be relatively subtler and less distracting.

Short Focus Distance

The 23.6" close focus distance is short so users can create closer shots. It renders a shallower depth of field, so the sense of compression will be stronger and the bokeh will be more oval-shaped.

Unified Gear Position

The unified gear position allows users to switch lenses quickly and without readjustment on the focus gear.

77mm Filter Thread

A 77mm filter can be attached directly to the lens for a variety of handy setups. The small diameter is favorable when doing run-and-gun shots or utilising it with an aerial drone.

Dual Scales

Both imperial and metric scales are printed on the lens body.

0.8 MOD Gears

Industry-standard 0.8 MOD gears are installed on both the aperture and focus rings.

Flange Back Adjustment

The lens allows users to adjust the back focus easily.

Lens Mount
ARRI PL & Canon EF
Lens Format Coverage
Super35/APS-C
Image Circle
25.6 mm
Focal Length
35mm
Maximum Aperture
T2.4
Minimum Aperture
T16
Diagonal Angle of View
Super35: 57.5°
Minimum Focus Distance
From Unspecified Point in Lens: 23.6" / 60 cm
Optical Design
15 Elements in 13 Groups
Diaphragm Blades
13
Gear MOD & Pitch
Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Front Diameter
80 mm
Filter Thread
77 mm
Focus Scales
Metric, Imperial
Horizontal Squeeze (Anamorphic)
1.5x
Dimensions (W x H)
8.4 x 7.5 cm
Length
7.5 cm
Weight
0.520 kg


* Specifications subject to change by the manufacturer without notice.

  • Laowa Nanomorph 35mm T2.4 1.5X S35 (Silver) - (Cine) Arri PL (Default) + EF
  • EF-Mount Bayonet
  • Front Cap
  • Rear Cap
  • Shim Set
  • Allen Wrench (0.9mm)
