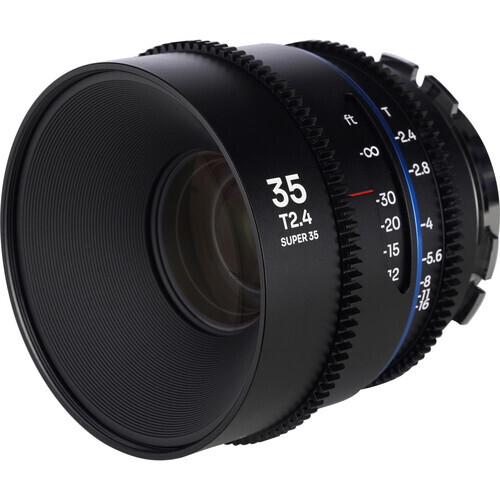

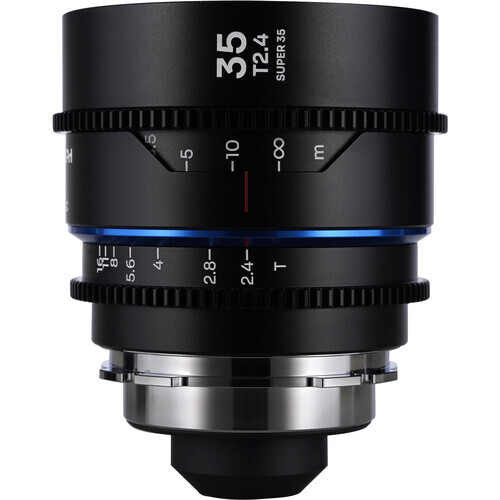

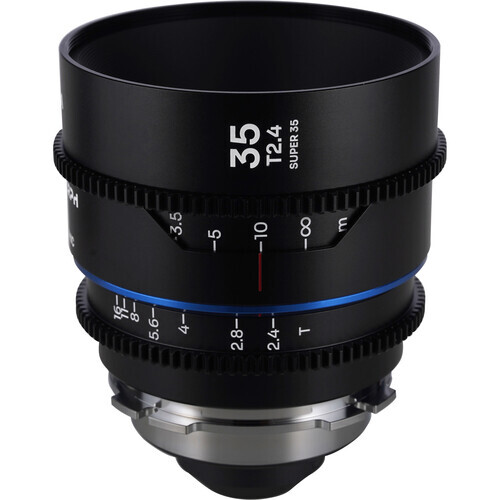

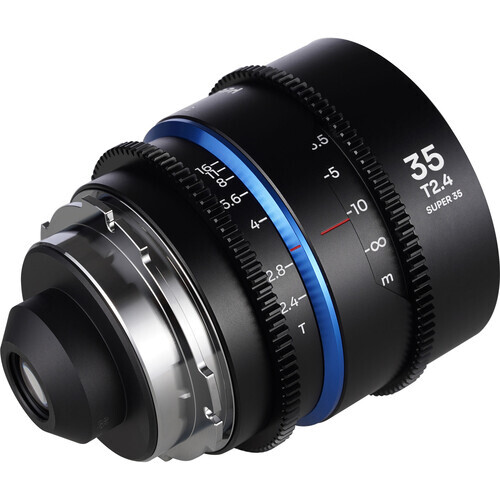

Laowa Nanomorph 35mm T2.4 1.5X S35 (Blue) - (Cine) Arri PL (Default) + EF

This Laowa Nanomorph 35mm T2.4 1.5x S35 Anamorphic Lens from Venus Optics is a slender, compact lens designed for high-definition video with 1.5x anamorphic squeeze on S35 sensors. Featuring a 35mm focal length, it comes with a PL lens mount and includes an EF-mount bayonet option for versatile use. The lens offers an aperture range of T2.4 to T22 for a deep depth of field, and its 13 iris blades create a shallow depth of field with a soft, aesthetically pleasing bokeh.

The prime lens has a very short minimum focus distance of 23.6" and offers anamorphic qualities such as high contrast, blue colour lens flares, and a 57.5° horizontal field of view. Other features include measurement markings in feet and meters, 0.8 MOD cine gears on focus and aperture rings, and a 77mm front filter thread. The lens comes default with an ARRI PL lens mount, and a Canon EF bayonet mount is included for compatibility with a wide range of cameras.

Constant 1.5x Squeeze Ratio

A 1.5x squeeze ratio is a perfect balance between the size and anamorphic intensity. With a 1.5x squeeze ratio, you will have a 2.66:1 on a 16:9 sensor after de-squeeze. There is also room for you to crop into a 2.4:1 widescreen ratio.

Artistic Oval Bokeh

A 1.5x squeeze ratio also renders oval bokeh that gives an artistic touch to the image. It also creates a blurry and creamy background that pops out the subject.

Blue Anamorphic Flare Colour

The traditional blue flare is common in the market, and it is suitable for sci-fi and cool vibe movies.

Short Focus Distance

The 23.6" close focus distance is short so users can create closer shots. It renders a shallower depth of field, so the sense of compression will be stronger and the bokeh will be more oval-shaped.

Unified Gear Position

The unified gear position allows users to switch lenses quickly and without readjustment on the focus gear.

77mm Filter Thread

A 77mm filter can be attached directly to the lens for a variety of handy setups. The small diameter is favorable when doing run-and-gun shots or utilising it with an aerial drone.

Dual Scales

Both imperial and metric scales are printed on the lens body.

0.8 MOD Gears

Industry-standard 0.8 MOD gears are installed on both the aperture and focus rings.

Flange Back Adjustment

The lens allows users to adjust the back focus easily.

Lens Mount
ARRI PL & Canon EF
Lens Format Coverage
Super35/APS-C
Image Circle
25.6 mm
Focal Length
35mm
Maximum Aperture
T2.4
Minimum Aperture
T16
Diagonal Angle of View
Super35: 57.5°
Minimum Focus Distance
From Unspecified Point in Lens: 23.6" / 60 cm
Optical Design
15 Elements in 13 Groups
Diaphragm Blades
13
Gear MOD & Pitch
Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Front Diameter
80 mm
Filter Thread
77 mm
Focus Scales
Metric, Imperial
Horizontal Squeeze (Anamorphic)
1.5x
Dimensions (W x H)
8.4 x 7.5 cm
Length
7.5 cm
Weight
0.520 kg


* Specifications subject to change by the manufacturer without notice.

  • Laowa Nanomorph 35mm T2.4 1.5X S35 (Blue) - (Cine) Arri PL (Default) + EF
  • EF-Mount Bayonet
  • Front Cap
  • Rear Cap
  • Shim Set
  • Allen Wrench (0.9mm)

Manufacturer Warranty

This product comes with a

12  month Australian warranty

from RADBitz Australia
