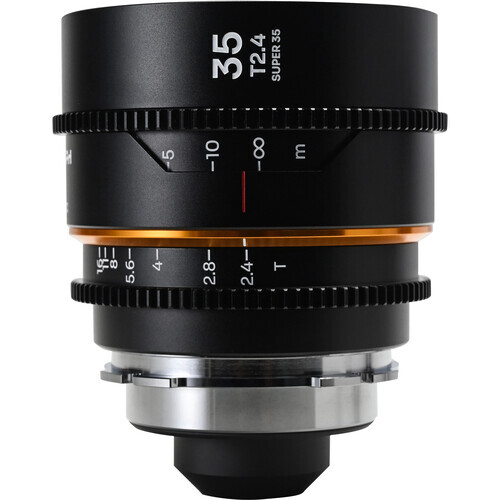

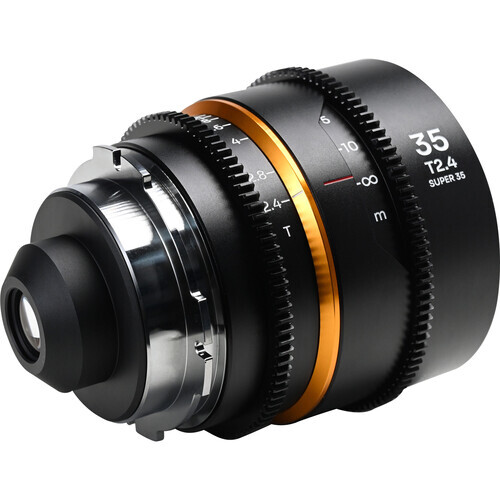

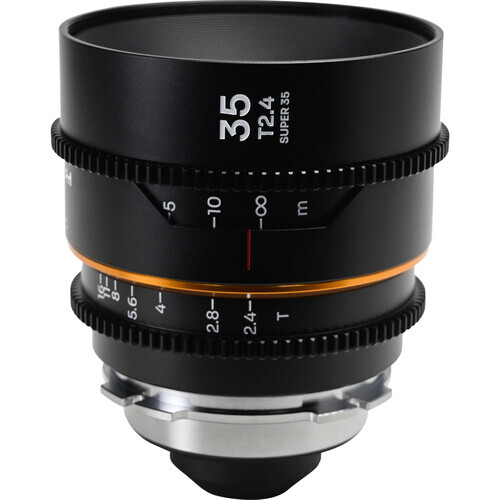

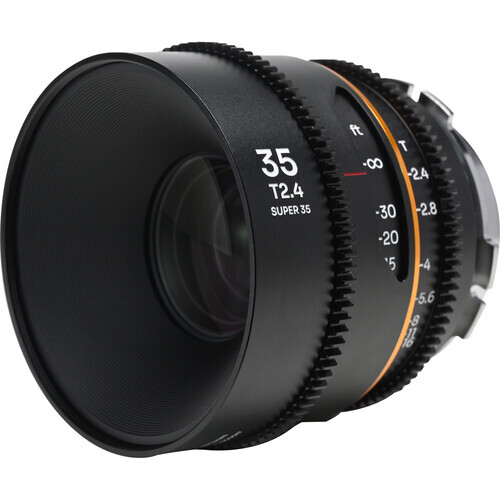

Laowa Nanomorph 35mm T2.4 1.5X S35 (Amber) - (Cine) Arri PL (Default) + EF

The Laowa Nanomorph 35mm T2.4 1.5x S35 Anamorphic Lens is a sleek, compact lens designed for high-definition video capture with a 1.5x anamorphic squeeze on S35 sensors. It features a 35mm focal length, a PL lens mount with an included EF-mount bayonet option, and an aperture range of T2.4 to T22 for a deep depth of field, enhanced by 13 iris blades for a shallow depth of field and soft bokeh. With a minimum focus distance of just 23.6", this lens delivers distinctive anamorphic qualities including high contrast, amber colour lens flares, and a 57.5° horizontal field of view. Additional features include measurement markings in feet and meters, 0.8 MOD cine gears on the focus and aperture rings, and a 77mm front filter thread. The lens is equipped with an ARRI PL mount by default, with a Canon EF bayonet mount included for versatility across various cameras.

Constant 1.5x Squeeze Ratio

A 1.5x squeeze ratio is a perfect balance between the size and anamorphic intensity. With a 1.5x squeeze ratio, you will have a 2.66:1 on a 16:9 sensor after de-squeeze. There is also room for you to crop into a 2.4:1 widescreen ratio.

Artistic Oval Bokeh

A 1.5x squeeze ratio also renders oval bokeh that gives an artistic touch to the image. It also creates a blurry and creamy background that pops out the subject.

Amber Anamorphic Flare colour

Amber flares are good for narrative and warm vibes and are less common among cine lenses.

Short Focus Distance

The 23.6" close focus distance is short so users can create closer shots. It renders a shallower depth of field, so the sense of compression will be stronger and the bokeh will be more oval-shaped.

Unified Gear Position

The unified gear position allows users to switch lenses quickly and without readjustment on the focus gear.

77mm Filter Thread

A 77mm filter can be attached directly to the lens for a variety of handy setups. The small diameter is favorable when doing run-and-gun shots or utilising it with an aerial drone.

Dual Scales

Both imperial and metric scales are printed on the lens body.

0.8 MOD Gears

Industry-standard 0.8 MOD gears are installed on both the aperture and focus rings.

Flange Back Adjustment

The lens allows users to adjust the back focus easily.

Lens Mount
ARRI PL & Canon EF
Lens Format Coverage
Super35/APS-C
Image Circle
25.6 mm
Focal Length
35mm
Maximum Aperture
T2.4
Minimum Aperture
T16
Diagonal Angle of View
Super35: 57.5°
Minimum Focus Distance
From Unspecified Point in Lens: 23.6" / 60 cm
Optical Design
15 Elements in 13 Groups
Diaphragm Blades
13
Gear MOD & Pitch
Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Front Diameter
80 mm
Filter Thread
77 mm
Focus Scales
Metric, Imperial
Horizontal Squeeze (Anamorphic)
1.5x
Dimensions (W x H)
8.4 x 7.5 cm
Length
7.5 cm
Weight
0.520 kg


* Specifications subject to change by the manufacturer without notice.

  • Laowa Nanomorph 35mm T2.4 1.5X S35 (Amber) - (Cine) Arri PL (Default) + EF
  • EF-Mount Bayonet
  • Front Cap
  • Rear Cap
  • Shim Set
  • Allen Wrench (0.9mm)

Manufacturer Warranty

This product comes with a

12  month Australian warranty

from RADBitz Australia
