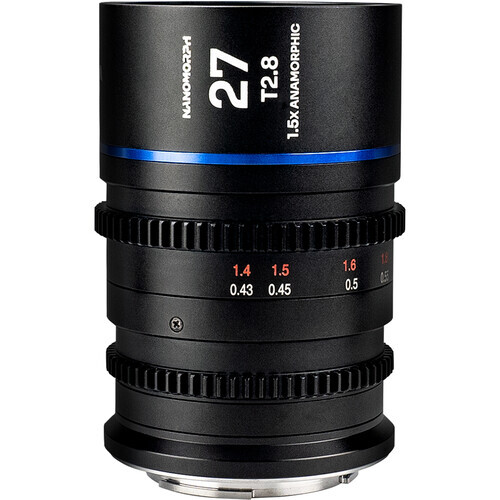

Laowa Nanomorph 27mm T2.8 1.5X S35 (Blue) - (Cine) DL

This Laowa Nanomorph 27mm T2.8 1.5x S35 Anamorphic Lens is a slender, compact lens designed to deliver high-definition video with a 1.5x anamorphic squeeze on S35 sensors. It features a 27mm focal length, a Canon RF lens mount, and an aperture range of T2.8 to T22 for versatile depth of field control. With 13 iris blades, it provides a shallow depth of field and smooth, soft bokeh. The lens has a very short minimum focus distance of 16.9" and offers distinctive anamorphic traits like high contrast, blue lens flares, and a 70.8° horizontal field of view. Additional features include measurement markings in feet and metres, 0.8 MOD cine gears for focus and aperture rings, and a 55mm front filter thread. The Canon RF lens mount is interchangeable and can be replaced with an optional mount for added flexibility.

Constant 1.5x Squeeze Ratio

A 1.5x squeeze ratio is a perfect balance between the size and anamorphic intensity. With a 1.5x squeeze ratio, you will have a 2.66:1 on a 16:9 sensor after de-squeeze. There is also room for you to crop into a 2.4:1 widescreen ratio.

Artistic Oval Bokeh

A 1.5x squeeze ratio also renders oval bokeh that gives an artistic touch to the image. It also creates a blurry and creamy background that pops out the subject.

Blue Anamorphic Flare Colour

The traditional blue flare is common in the market, and it is suitable for sci-fi and cool vibe movies.

Short Focus Distance

The 16.9" close focus distance is short so users can create closer shots. It renders a shallower depth of field, so the sense of compression will be stronger and the bokeh will be more oval-shaped.

Unified Gear Position

The unified gear position allows users to switch lenses quickly and without readjustment on the focus gear.

55mm Filter Thread

A 55mm filter can be attached directly to the lens for a variety of handy setups. The small diameter is favorable when doing run-and-gun shots or utilising it with an aerial drone.

Dual Scales

Both imperial and metric scales are printed on the lens body.

0.8 MOD Gears

Industry-standard 0.8 MOD gears are installed on both the aperture and focus rings.

Flange Back Adjustment

The lens allows users to adjust the back focus easily.

Lens Mount
DJI DL
Lens Format Coverage
Super35/APS-C
Image Circle
25.6 mm
Focal Length
27mm
Maximum Aperture
T2.8
Minimum Aperture
T16
Diagonal Angle of View
Super35: 70.8°
Minimum Focus Distance
From Unspecified Point in Lens: 16.9" / 43 cm
Optical Design
15 Elements in 13 Groups
Diaphragm Blades
13
Gear MOD & Pitch
Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Front Diameter
58 mm
Filter Thread
55 mm
Focus Scales
Metric, Imperial
Horizontal Squeeze (Anamorphic)
1.5x
Dimensions (W x H)
9 x 6 cm
Length
9 cm


* Specifications subject to change by the manufacturer without notice.

  • Laowa Nanomorph 27mm T2.8 1.5X S35 (Blue) - (Cine) DL
  • Front Cap
  • Rear Cap
  • Shim Set
  • Allen Wrench (0.9mm)

Manufacturer Warranty

This product comes with a

12  month Australian warranty

from RADBitz Australia

Want to read more about warranties?

Click here

Add extra protection for peace of mind

Reviews

* Dispatch timeframes are indications only and may vary for multiple quantities. Timeframes are updated regularly during normal business hours.
