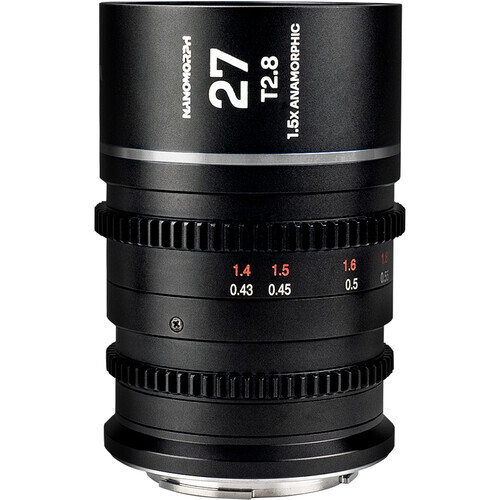

Laowa Nanomorph 27mm T2.8 1.5X S35 (Silver) - (Cine) MFT

The Laowa Nanomorph 27mm T2.8 1.5x S35 Anamorphic Lens is a compact and slender anamorphic lens tailored for high-definition video, offering a 1.5x anamorphic squeeze on S35 sensors. With a focal length of 27mm and a Micro Four Thirds lens mount, it features an aperture range of T2.8 to T22 for a deep depth of field, complemented by 13 iris blades for soft bokeh. This lens boasts a very short minimum focus distance of 16.9" and delivers anamorphic attributes such as high contrast, silver colour lens flares, and a 70.8° horizontal field of view. Additional features include measurement markings in feet and meters, 0.8 MOD cine gears on the focus and aperture rings, and a 55mm front filter thread. The Micro Four Thirds mount is interchangeable and can be swapped for an optional mount.

Constant 1.5x Squeeze Ratio

A 1.5x squeeze ratio is a perfect balance between the size and anamorphic intensity. With a 1.5x squeeze ratio, you will have a 2.66:1 on a 16:9 sensor after de-squeeze. There is also room for you to crop into a 2.4:1 widescreen ratio.

Artistic Oval Bokeh

A 1.5x squeeze ratio also renders oval bokeh that gives an artistic touch to the image. It also creates a blurry and creamy background that pops out the subject.

Silver Anamorphic Flare Colour

Compared to the more common blue flare, the silver flare is a neutral-coloured flare that provides more control over the flare coulor. Its colour changes according to the light source, and it can be relatively subtler and less distracting.

Short Focus Distance

The 16.9" close focus distance is short so users can create closer shots. It renders a shallower depth of field, so the sense of compression will be stronger and the bokeh will be more oval-shaped.

Unified Gear Position

The unified gear position allows users to switch lenses quickly and without readjustment on the focus gear.

55mm Filter Thread

A 55mm filter can be attached directly to the lens for a variety of handy setups. The small diameter is favorable when doing run-and-gun shots or utilising it with an aerial drone.

Dual Scales

Both imperial and metric scales are printed on the lens body.

0.8 MOD Gears

Industry-standard 0.8 MOD gears are installed on both the aperture and focus rings.

Flange Back Adjustment

The lens allows users to adjust the back focus easily.

Lens Mount
Micro Four Thirds
Lens Format Coverage
Super35/APS-C
Image Circle
25.6 mm
Focal Length
27mm
Maximum Aperture
T2.8
Minimum Aperture
T16
Diagonal Angle of View
Super35: 70.8°
Minimum Focus Distance
From Unspecified Point in Lens: 16.9" / 43 cm
Optical Design
15 Elements in 13 Groups
Diaphragm Blades
13
Gear MOD & Pitch
Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Front Diameter
58 mm
Filter Thread
55 mm
Focus Scales
Metric, Imperial
Horizontal Squeeze (Anamorphic)
1.5x
Dimensions (W x H)
9 x 6 cm
Length
9 cm


* Specifications subject to change by the manufacturer without notice.

  • Laowa Nanomorph 27mm T2.8 1.5X S35 (Silver) - (Cine) MFT
  • Front Cap
  • Rear Cap
  • Shim Set
  • Allen Wrench (0.9mm)

Manufacturer Warranty

This product comes with a

12  month Australian warranty

from RADBitz Australia
