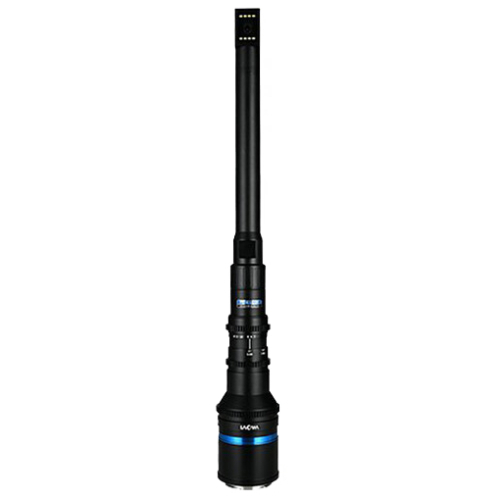

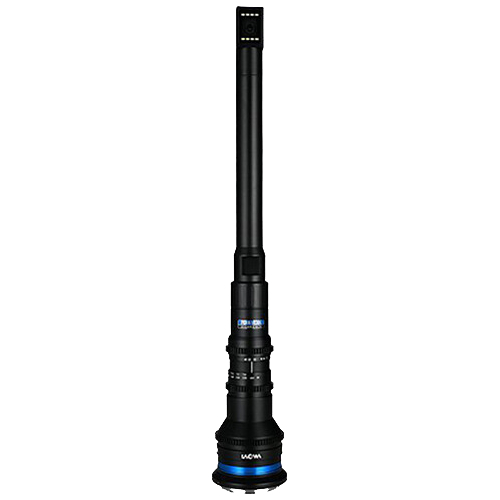

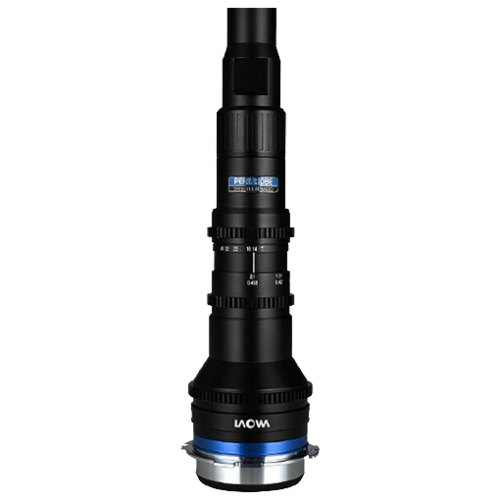

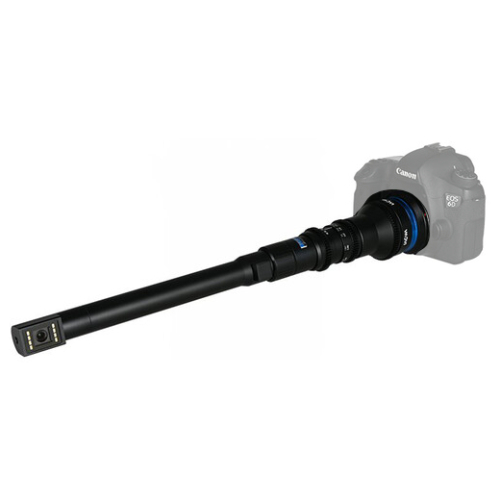

Laowa 24mm T14 2X Periprobe (Cine) - Sony FE

The LAOWA 24mm T14-40 Full Frame 2x PeriProbe Cine Lens captures sharp magnified shots with full-frame camera sensors using their Sony E-mount and offers a 24mm focal length. Its periscope-style lens tube with interchangeable ends features an aperture range of T14 to T40, allowing for both deep and shallow depth of field. Designed for versatility, it can be used underwater or in tight spaces, thanks to its waterproof front barrel and slim profile.

A lens construction of 28 elements in 19 groups creates a smooth, circular bokeh with minimal focus breathing. The lens can rotate 360° along the axis to unlock the orientation ring and create spinning shots. Both the focus and iris rings have 0.8 MOD cinema-standard gears for intuitive manual controls. A 1/4"-20 thread at the end of the 15.7" lens allows you to mount fill lights or other accessories. Built-in LEDs in the lens tips provide a ring-light effect to your shots.

Maximum T14 aperture for greater depth of field at close distances

Cinema industry-standard 0.8 MOD focus and iris gears compatible with follow focus and iris controls

Manually focus on objects only 0.8" away at 2x magnification

Lens construction of 28 elements in 19 groups for smooth, circular bokeh

A wide 85° perspective to create a "bug-eye" effect

Long 15.7" lens barrel for access to tight spaces, stay a safe distance from subjects

Waterproof front barrel for underwater shots without requiring a waterproof housing

360° rotation with a clutch mechanism to adjust the orientation ring

Switch between 90° periscope to straight probe

1/4"-20 thread for mounting of fill lights

Focal Length
24mm
Lens Mount
Sony E
Lens Format Coverage
Full Frame
Maximum Aperture
T14
Minimum Aperture
T40
Diagonal Angle of View
Full Frame: 85°
Horizontal Angle of View
Full Frame: 85°
Minimum Focus Distance
From Front of Lens: 0.8" / 2 cm
Optical Design
28 Elements in 19 Groups
Diaphragm Blades
7
Gear MOD & Pitch
Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Front Diameter
29 mm
Focus Rotation
360°
Iris Rotation
360°
Zoom Rotation
360°
Tilt Rotation
45°
Zoom Ratio
2x
Length
40.8 cm
Weight
0.770 kg


* Specifications subject to change by the manufacturer without notice.

  • Laowa 24mm T14 2X Periprobe (Cine) - Sony FE
  • 90° Module
  • Direct View Module
  • USB Cable Dimmer with Power Adjustment (White)
  • USB Cable (Black)
  • Front Cap
  • Rear Cap
  • Protective Case

Manufacturer Warranty

This product comes with a

12  month Australian warranty

from RADBitz Australia
