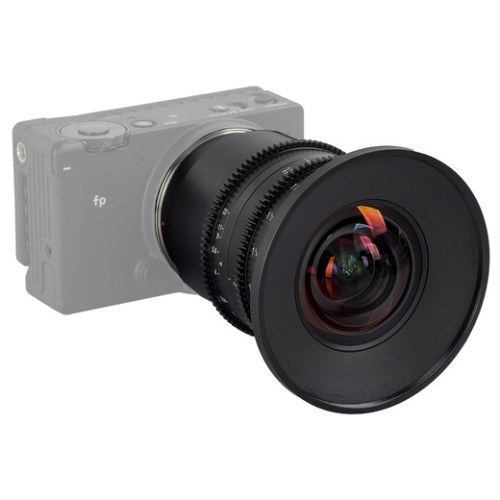

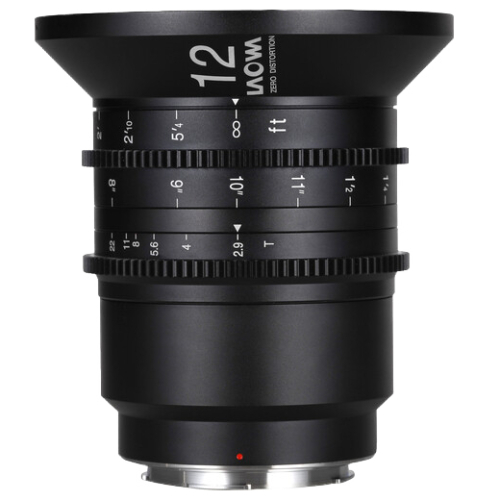

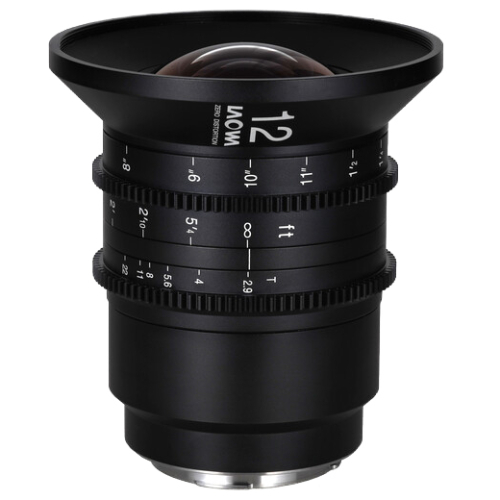

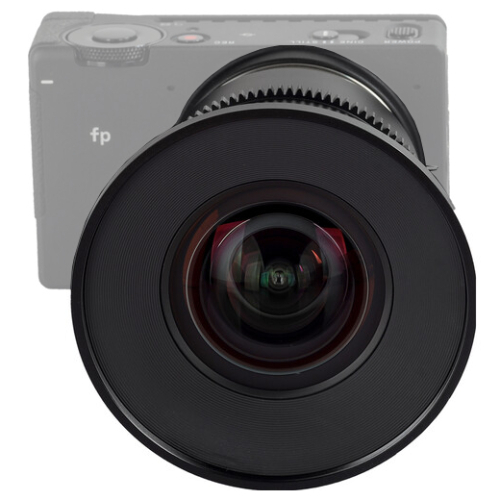

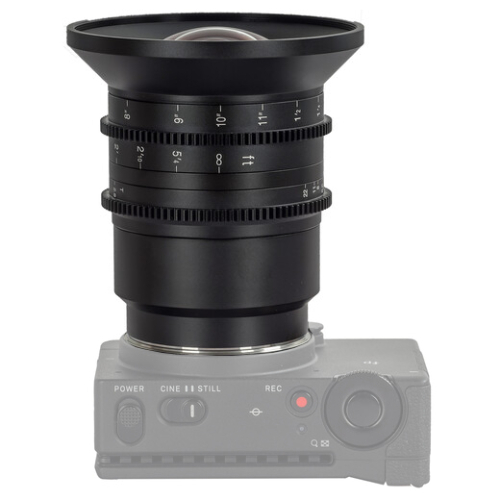

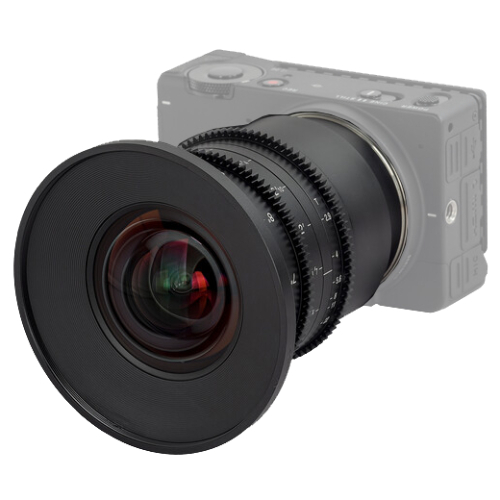

Laowa 12mm T2.9 Zero-D Cine Lens - L mount (Dual Scales)

The Leica L-mount Laowa 12mm T2.9 Zero-D Cine Lens from offers a wide 122° angle of view, making it ideal for outdoor, landscape, and tight interior shots. Optimised for digital cinematography, this lightweight and compact lens is suitable for both handheld and gimbal shooting. It produces an image circle that covers full-frame, VistaVision, and ARRI ALEXA LF size sensors or smaller.

The 12mm cine lens features a maximum aperture of T2.9 with 16 elements in 10 groups. Its 7-blade aperture provides a soft, pleasing bokeh, a shallow depth of field with little to no distortion, and a 7" close focus distance from the camera sensor (4" from the lens front). The focus and aperture rings feature industry-standard 0.8-MOD gearing that will accommodate standard cine follow focus motors. The 102mm front diameter can be stepped up to 114mm with the included adapter to fit industry-standard matte boxes to prevent glare and reflection, as well as to add filters. Focus, aperture, and depth of field markings are in feet on the side of the lens to aid focus pullers.

In addition to the 114mm step-up adapter ring, a shim set is included for calibration, as well as a hard-shell Pelican case with custom foam to protect and transport the lens.

Leica L Mount

Ultra wide-angle 12mm T2.9 prime designed for Leica L-mount cine cameras with up to full-frame/VistaVision/ALEXA LF sensor.

Low Distortion, 7-Blade Iris

Designed with 16 elements in 10 groups, low distortion, and 7-blade iris.

114mm Step-Up Ring

102mm front diameter with 114mm step-up adapter ring to fit industry-standard matte box.

7" Close Focus

7" close focus from sensor (4" from lens front), smooth 270° focus rotation, and standard 0.8 MOD focus ring.

Hard-Shell Case

Shim set and hard-shell Pelican case with custom foam are included.

Lens Mount
Leica L
Lens Format Coverage
Full Frame
Image Circle
44.7 mm
Focal Length
12 mm
Maximum Aperture
T2.9
Minimum Aperture
T22
Horizontal Angle of View
Super35: 122°
Minimum Focus Distance
From Camera Sensor: 17.8 cm
Optical Design
16 Elements in 10 Groups
Diaphragm Blades
7
Gear MOD & Pitch
Focus: 0.8 MOD / 32 Pitch
Front Diameter
102 mm
Focus Scales
Imperial
Focus Rotation
270°
Length
8.7 cm
Weight
0.675 kg


* Specifications subject to change by the manufacturer without notice.

  • Laowa 12mm T2.9 Zero-D Cine Lens - L mount (Dual Scales)
  • Front Lens Cap
  • Rear Lens Cap
  • 114mm Step-Up Ring
  • Shim Set
  • Waterproof Pelican Case

Manufacturer Warranty

This product comes with a

12  month Australian warranty

from RADBitz Australia
