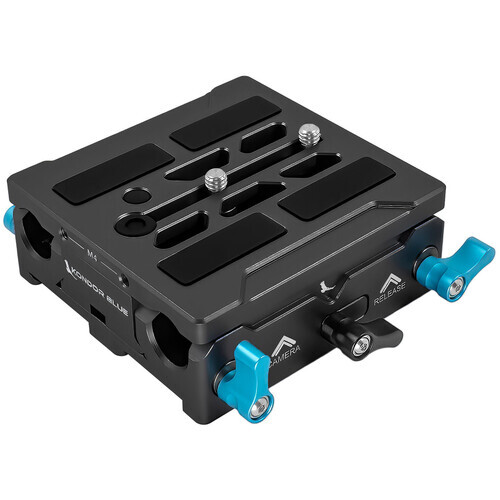

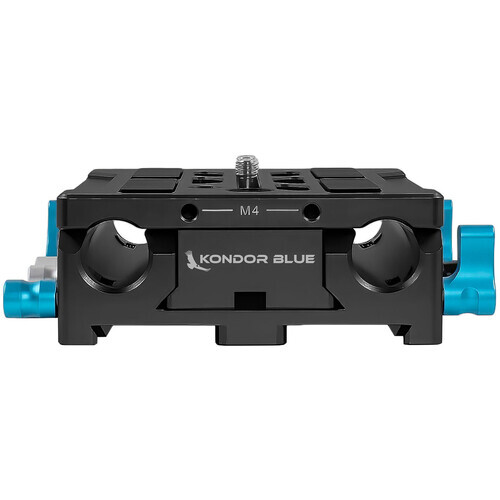

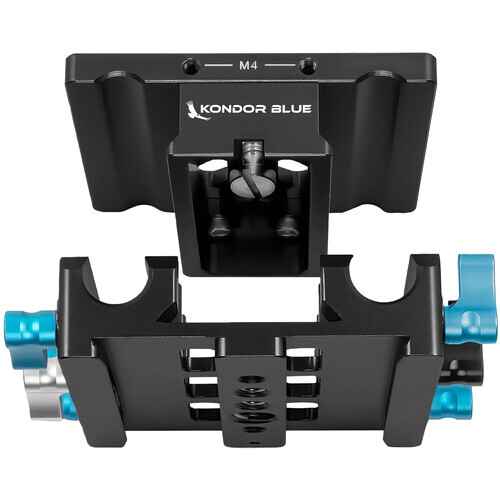

Kondor Blue Universal LWS ARRI Bridge Plate for ARRI, RED, URSA, C70, VENICE - Black

Upgrade your professional camera rig with this raven black Universal 15mm LWS Bridge Plate from Kondor Blue. Designed to provide 15mm LWS (Lightweight Support) and quick release support, this bridge plate is compatible with ARRI-standard dovetail rigs. It can support larger pro cameras from ARRI and RED, as well as camera models like the Blackmagic Design URSA Mini line, Canon EOS C70, and the Sony FX6, Rialto, FS5, F5, and VENICE. The plate features an ARRI-standard dovetail base, a quick-release camera plate, and a 15mm LWS rod system.

The quick release camera plate features 1/4"-20 and 3/8"-16 mounting screws, front M4 screws for a lens support, and rubber padding on top to protect the camera from scratching or twisting. The dovetail base offers 1/4"-20 and 3/8"-16 tripod mount threads. Its 15mm rod ports pass through the entire base and are secured with four locking levers, making it easy to add two sets of optional rods of different lengths through the front and rear. The bridge plate features a standard 3.3" riser height to match the camera's lens height, and optional riser plates will be available to support additional camera models.

Additional Features

  • ARRI-standard dovetail base
  • 15mm LWS rod support
  • Standard 3.3" riser lens height
  • Quick release camera plate system
  • 1/4"-20 and 3/8"-16 mounting screws
  • 1/4"-20 and 3/8"-16 tripod mount threads
  • Rubber padding on top of the plate

Compatibility

Professional cinema camera lines from ARRI and RED and camera models such as the Blackmagic Design URSA Mini line, Canon EOS C70, and the Sony FX6, Rialto, FS5, F5, and VENICE.

Optional camera-specific riser plates are available for a variety of additional cameras from ARRI, RED, Canon, and Sony.

Rod Standard
15 mm LWS / 60 mm Spacing
Camera Mounting
1/4"-20 Male Screw, 3/8"-16 Male Screw
Tripod Mounting
Baseplate
  1/4"-20 Female Thread, 3/8"-16 Female Thread, ARRI Dovetail Clamp
Rod Ports
Baseplate
  15 mm Rod Port
Support Type
Baseplate
Camera Compatibility
Universal


* Specifications subject to change by the manufacturer without notice.

  • Kondor Blue Universal LWS ARRI Bridge Plate for ARRI, RED, URSA, C70, VENICE - Black
  • Quick Release Camera Plate

Manufacturer Warranty

This product comes with a

12  month Australian warranty
