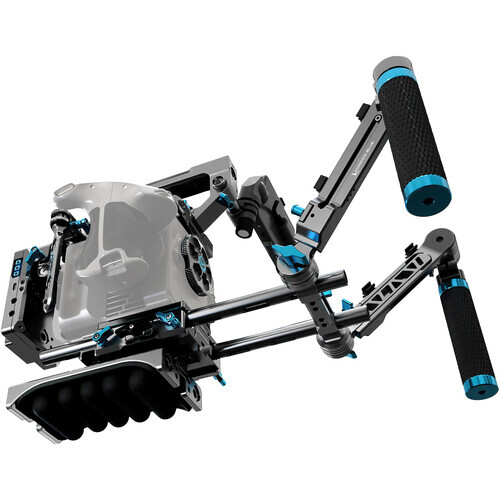

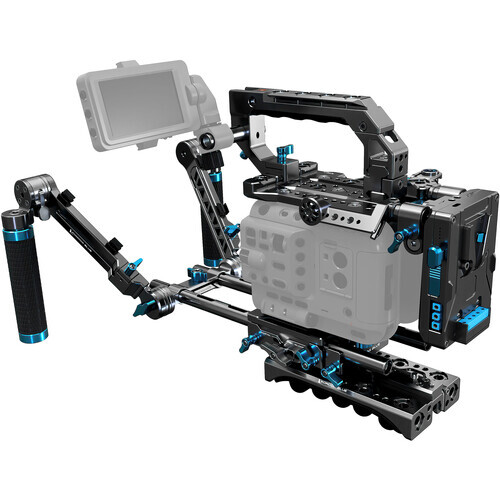

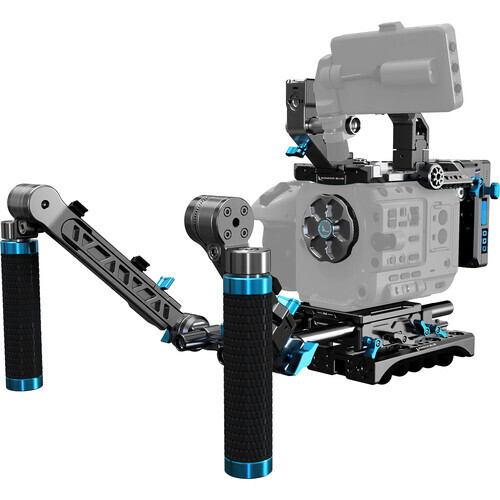

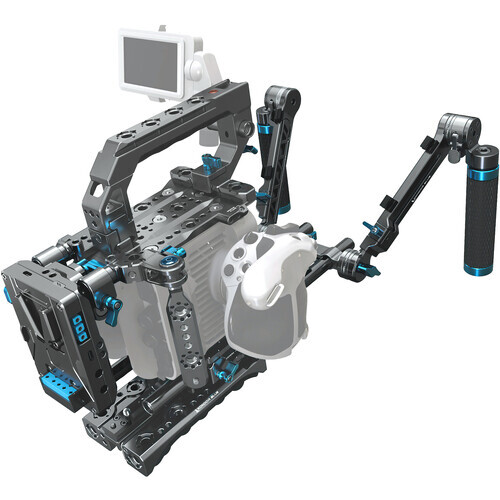

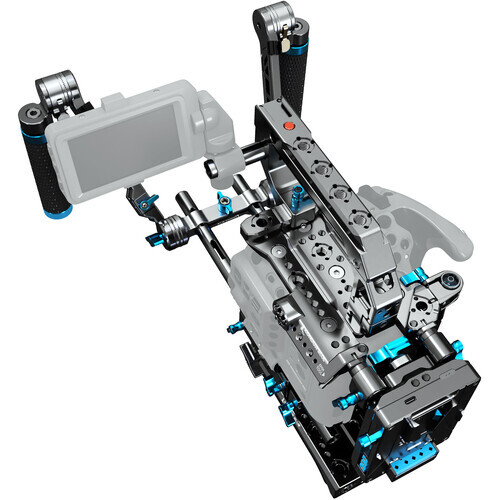

Kondor Blue Sony FX6 Ultimate Rig - Space Grey

Add numerous accessories and functions to your FX6 camera with this space grey Ultimate Rig from Kondor Blue. The Ultimate Rig includes the modular cage consisting of left, centre, and right top plates, a 15mm rod clamp, and a NATO accessory rail. Also included are a top trigger handle, a 15mm LWS baseplate with a quick release bridge plate, a Sony E-mount lens cap, two 12" long PPSH 15mm rods, a dual rosette arm with handgrip bundle, a V-mount battery plate, a shoulder pad air, and a D-Tap power cable. This comprehensive kit provides everything you need to expand your camera's capabilities and enhance your filming experience.

Kondor Blue Right Top Plate for Sony FX6 Camera Cage (Space Grey)

Add accessories onto the top of your Sony FX6 using this space grey Right Top Plate from Kondor Blue. The right top plate is a component of the modular Kondor Blue Camera Cage for Sony FX6 and is designed as a thin strip to mount onto the top right side of the camera. It is compatible with the Center and Left Top plates, AKS Rod Clamp, and the 15mm NATO rail accessory, which are part of the cage system.

The plate is easily mounted and replaced using two captive screws, and it fits snugly to the right of the optional center plate, if required. The plate offers multiple 3/8"-16 ARRI-style anti-twist accessory mounts as well as numerous 1/4"-20 accessory threads, and it also features a Sony sensor plane bolt and a NATO rail. There is also an attachment point on the side to mount the optional AKS Rod Clamp and 15mm to NATO rail accessory.

Kondor Blue Center Top Plate for Sony FX6 Camera Cage (Space Grey)

Add your own top handle or accessory onto the top of your Sony FX6 using this space grey Center Top Plate from Kondor Blue. The center plate is a component of the modular Kondor Blue Camera Cage for Sony FX6 and is designed as a thin strip to replace the original FX6 top handle and mount your own accessory.

The plate is easily mounted and replaced using a single captive screw, and it fits snugly between the optional left and right top plates, if required. The plate offers multiple 3/8"-16 ARRI-style anti-twist accessory mounts as well as numerous 1/4"-20 accessory threads.

Kondor Blue Left Top Plate for Sony FX6 Camera Cage (Space Grey)

Add accessories onto the top of your Sony FX6 using this space grey Left Top Plate from Kondor Blue. The left top plate is a component of the modular Kondor Blue Camera Cage for Sony FX6 and is designed as a thin strip to mount onto the top left side of the camera. It is compatible with the Center and Right Top plates that are part of the cage system.

The plate is easily mounted and replaced using two captive screws, and it fits snugly to the left of the optional center plate, if required. The plate offers multiple 3/8"-16 ARRI-style anti-twist accessory mounts as well as numerous 1/4"-20 accessory threads, and it also features a Sony 8T mount to relocate the monitor and an angled wing to reposition accessories away from the camera. A 4mm wrench stores in the plate.

Kondor Blue 15mm Accessory NATO Rail for Sony FX6 Camera Cage (Space Grey)

Add accessories onto the top of your Sony FX6 using this space grey 15mm Accessory NATO Rail from Kondor Blue. The 15mm accessory NATO rail is a component of the modular Kondor Blue Camera Cage for Sony FX6 and is designed as a thin side rail that hangs on the side of your camera from the right top plate. It is compatible with the Right Top plate and the AKA Rod Clamp accessory, which are part of the cage system.

The rail is easily mounted using a standard 15mm rod clamp such as the AKS rod clamp. It offers a NATO rail, multiple 3/8"-16 ARRI-style anti-twist accessory mounts, and 1/4"-20 accessory threads, and it also features a handy bubble level on top.

Kondor Blue AKS Rod Clamp for Sony FX6 Camera Cage (Space Grey)

Add a 15mm accessory onto the top of your Sony FX6 using this space grey AKS Rod Clamp from Kondor Blue. The AKS rod clamp is a component of the modular Kondor Blue Camera Cage for Sony FX6 and is designed to mount directly onto the right top plate. It is compatible with the 15mm NATO Accessory Rail, which are part of the cage system.

The rod clamp mounts onto the side of the Right Top Plate using a thumbscrew, and its single rod port allows you to mount the 15mm NATO Accessory Rail or a standard 15mm rod.

Kondor Blue NATO Top Handle with Record Stop/Start Trigger for URSA Mini (Space Grey)

Compatible with your URSA Mini camera, the space grey NATO Top Handle with Record Stop/Start Trigger from Kondor Blue secures to your camera cage or top plate with two NATO clamps to add a remote trigger and increase the mounting options of your rig. Multiple 1/4"-20 threads and five 3/8"-16 ARRI anti-twist locating threads along with a NATO rail allow for a myriad of mounting options from secondary monitors to shotgun microphones and articulating arms. A cold shoe mount and 15mm rod clamp expand those capabilities even further.

The handle has a modular design that is reversible for compatibility with EVF and single or dual NATO points of contact. It also features a start/stop remote trigger button and includes a 2.5mm LANC control cable to connect to a variety of camera models including the URSA Mini. A switch on the handle allows you to change between two modes of camera control for compatibility with different brands and models. The grip of the handle has an ergonomic design to maximize comfort.

Compatible Camera Control Switch Modes

• "S" Control Mode: URSA Mini, all Sony cameras, Canon EOS C300/C500, Z CAMs
• "P" Control Mode: Canon EOS R/R5/R6, Panasonic Lumix S1H/GH5/GH5S, FUJIFILM X-T4

Kondor Blue Universal 15mm LWS Bridge Plate for ARRI/RED/URSA/C70/VENICE (Space Grey)

Add 15mm LWS and quick release support to your professional camera rig with this space grey Universal 15mm LWS Bridge Plate from Kondor Blue. The bridge plate is designed to work with ARRI-standard dovetail rigs and can support larger pro cameras from ARRI and RED and camera models such as the Blackmagic Design URSA Mini line, Canon EOS C70, and the Sony FX6, Rialto, FS5, F5, and VENICE. It features an ARRI-standard dovetail base, a quick release camera plate, and a 15mm LWS rod system.

The quick release camera plate features 1/4"-20 and 3/8"-16 mounting screws, front M4 screws for a lens support, and rubber padding on top to protect the camera from scratching or twisting. The dovetail base offers 1/4"-20 and 3/8"-16 tripod mount threads. Its 15mm rod ports pass through the entire base and are secured with four locking levers, making it easy to add two sets of optional rods of different lengths through the front and rear. The bridge plate features a standard 3.3" riser height to match the camera's lens height, and optional riser plates will be available to support additional camera models.

Additional Features

• ARRI-standard dovetail base
• 15mm LWS rod support
• Standard 3.3" riser lens height
• Quick release camera plate system
• 1/4"-20 and 3/8"-16 mounting screws
• 1/4"-20 and 3/8"-16 tripod mount threads
• Rubber padding on top of the plate

Compatibility

Professional cinema camera lines from ARRI and RED and camera models such as the Blackmagic Design URSA Mini line, Canon EOS C70, and the Sony FX6, Rialto, FS5, F5, and VENICE.

Optional camera-specific riser plates are available for a variety of additional cameras from ARRI, RED, Canon, and Sony.

Kondor Blue Aluminium Body Cap for Sony E-Mount Cameras (Space Grey)

Protect your camera's mount and sensor with this Aluminium Body Cap for Sony E-Mount Cameras, in space grey, from Kondor Blue. The engraved mounting indicators show you which way to turn the cap while holding it by its edge-gripping ridges. The cap locks into place in the camera's mount, and the anodized finish protects the cap from scratches and scuffs.

Kondor Blue PPSH 15mm Rods (Pair, Space Grey, 12")

Add a pair of standard 15mm rods to your rig with this two-pack of 12" PPSH 15mm Rods from Kondor Blue. These Space grey aluminium threaded rods feature PPSH cutouts throughout as part of the design, making them lighter yet still durable.

Each 15mm rod can be used to support various accessories such as follow focus systems, servo motors, lens supports, battery mounts, and more. for custom lengths, multiple units can be combined using optional Kondor M12 rod extension screws.

Kondor Blue Cine Battery Plate with 15mm Rod Clamp (V-Mount, Space Grey)

Add professional battery power to your rig with this space grey V-mount Cine Battery Plate from Kondor Blue. The plate attaches to your rig with its built-in 15mm rod clamp and provides multiple DC power output ports for your camera and accessories.

The plate includes a switchable 7.4/8.4V 1.35mm DC barrel output, a 5V 2.5mm barrel output, a 12V 2.5mm barrel output, and one D-Tap output. It also has a 15V 2.5mm barrel input/output that allows you to input AC power to power accessories connected to the other outputs, as well as a separate 2.5mm barrel input to charge the battery. The 15mm rod clamps are secured on separately available LWS rods via two blue locking levers.

Kondor Blue Shoulder Pad Air (Space Grey)

The space grey Kondor Blue Shoulder Pad Air is a versatile shoulder mount support pad stabilizer featuring an air-cushioned pad that allows you to accurately set air pressure using the included air pump. The unit offers twenty-two 1/4"-20 mounting threads for your accessories, giving you ample options for placement that can easily align with your particular rig setup.

The rotating NATO mount allows you to use the unit on your chest or for certain low-angle shots, and it can be adjusted using the appropriate tool built into the shoulder pad. Twelve ARRI mounts are also spread across the overall design of the unit for additional mounting options.

Pad

• Air-cushioned pad to perfectly set the air pressure
• Removable and washable
• Includes an air pump

Mounts

• 12 ARRI mounts for mounting on rail systems when used with the optional ARRI-style Pin to Rod Clamp (60mm spread)
• 22 1/4"-20 threads
• Mounts on the NATO rail for mounting on a dovetail or baseplate

NATO Rail

• Can be bolted in place in a horizontal or vertical orientation for added security
• An adjustment tool is built into the shoulder pad
• NATO rail for the fine-tuning location of the shoulder pad under crowded rig components
• Safety stops are available at each end of the NATO

Kondor Blue D-Tap to 19.5V Regulated DC Coiled Cable for Sony FX9/FX6

The D-Tap to 19.5V Regulated DC Coiled Cable for Sony FX9/FX6 from Kondor Blue extends from 14 to 24" and features a D-Tap male connector on one end and a right-angle DC male connector on the other end. The cable is made from an ultra-durable, nylon-braided material and is specifically designed for supplying power connectivity to the Sony FX9 and FX6.
