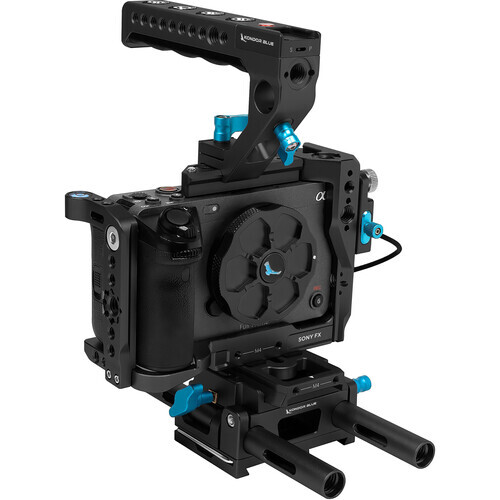

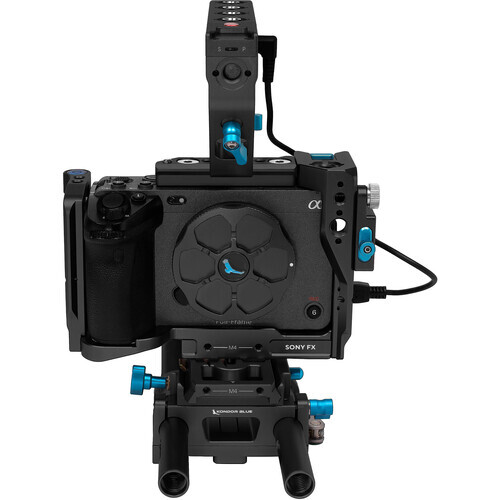

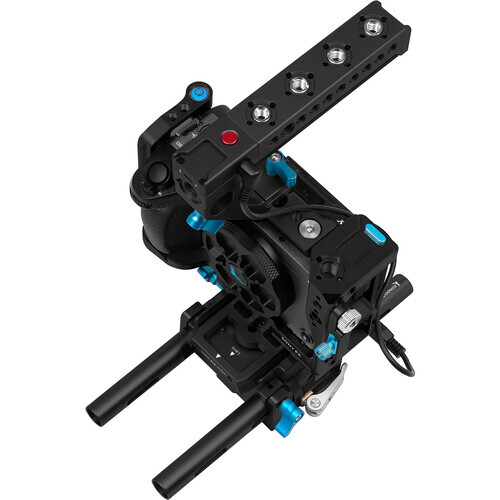

Kondor Blue Sony FX3 Base Rig - Black

Enhance and safeguard your Sony FX3 or FX30 cinema camera with the black Base Camera Rig from Kondor Blue. This kit, centred around a modular camera cage, also includes a top handle, an E-mount port cap, a universal baseplate with a quick release camera plate, an Arca-Swiss bottom plate, and two 8" long 15mm PPSH (cutout) rods.

Compatibility

  • Sony FX3
  • Sony FX30

Accessory Mounting Options

Multiple mounting options include:

  • Cage shoe mount with safety pin to prevent an accessory from sliding off
  • 1/4"-20 threads, 3/8"-16 ARRI-style anti-twist threads
  • NATO rails on all cage sides
  • 1/4"-20 and 3/8"-16 tripod mounting threads
  • Front lens support threads

Baseplate

  • The baseplate features an ARRI-type/Manfrotto 501 quick release plate and 15mm rod support
  • The included 8" cutout 15mm rods offer mounting for a lens support, extension arms, and follow focus motors

Top Handle

  • Two shoe mounts
  • Multiple 1/4"-20 and 3/8"-16 ARRI-style anti-twist threads
  • Run/Stop button enables you to control recording when used with a separately available cable

Port Cap

An aluminium E-mount port cap protects the sensor when no lens is mounted on the camera

Support Type
Baseplate, Cage, Handheld Support, Rod Support System
Grip Type
Topside Handgrip
Camera Compatibility
Sony FX3
Rod Standard
15 mm LWS / 60 mm Spacing
Included Rods
8" / 20.3 cm Rod
Accessory Mounting
Multiple 1/4"-20 Female Thread
  Multiple ARRI Anti-Twist 3/8"-16 Female Thread
Camera Mounting
Manfrotto 501 Plate
Tripod Mounting
1/4"-20 Female Thread
  3/8"-16 Female Thread
Rod Ports
Baseplate
  15 mm Rod Port
  Top Handle
  15 mm Rod Port
Shoe Mounting
Top Handle
  Cold Shoe
  Cage
  Cold Shoe
Rail Mounting
Cage
  NATO Rail
Materials
Aluminium
Dimensions
24.1 x 11.4 x 7.6 cm (With Handle, w/o Rods)
  17.8 x 11.4 x 7.6 cm (w/o Handle & Rods)
Weight
0.680 kg


* Specifications subject to change by the manufacturer without notice.

  • Kondor Blue Sony FX3 Base Rig - Black
  • Kondor Blue Sony FX3 Cage (Black)
  • Kondor Blue Cage Top Handle with Start/Stop Camera Control for Select Cameras (Black)
  • Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Space Grey)
  • Kondor Blue Aluminium Body Cap for Sony E-Mount Cameras (Space Grey)
  • Kondor Blue PPSH 15mm Rods (Pair, Space Grey, 8")

Manufacturer Warranty

This product comes with a

12  month Australian warranty

from Kondor Blue Australia
